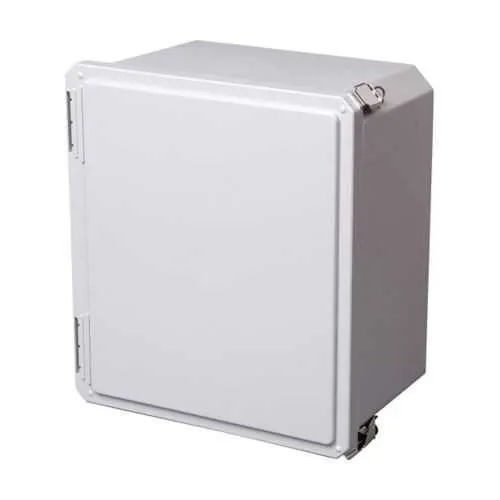

Eaton 201610-SDFQR JIC Panel Enclosure - NEMA 4X
Part Number: 201610-SDFQR
Quick Summary
The Eaton B-Line series JIC panel enclosure is a rugged housing for control panels in harsh industrial environments. Operators often fight moisture, dust, and tamper risks in outdoor or dirty factory spaces—leading to downtime and maintenance costs. This NEMA 4X fiberglass enclosure carries UL 50 and CSA C22.2 certifications, plus durable corrosion resistance, ensuring a long service life in demanding conditions. Its seamless gasket, hinged cover, and wall-mount design deliver reliable protection while simplifying installation. With external mounting feet as an option and a padlock provision, it supports secure, scalable panel configurations for evolving control needs and reduced lifecycle costs.
Product Information
Extended Description
201610-SDFQR Eaton: Eaton B-Line series JIC panel enclosure, 21.79" height, 10.34" length, 18.16" width, NEMA 4X, Hinged cover, SDFQR enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
201610-SDFQR
UPC
782051524345
Product Length/Depth
10.34 in
Product Height
21.79 in
Product Width
18.16 in
Product Weight
17.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDFQR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers superior corrosion resistance and weather durability, reducing maintenance cycles in chemical plants and outdoor installations. This translates to higher uptime and lower total cost of ownership for critical control panels. The NEMA 4X rating, UL 50 and CSA C22.2 certifications provide compliance confidence for regulated environments, supporting safer, code-aligned deployments. A hinged cover with a seamless poured-in-place gasket keeps dirt and water out while enabling quick access for inspection and service, boosting maintenance efficiency. Wall mounting with optional external feet offers installation flexibility and space optimization on crowded plant walls or mezzanines, improving wiring organization and reducing install time. Padlock provisions and a stainless pull-drawn catch enhance security and durability in harsh workplaces, addressing tamper resistance without complicating daily use. The enclosure’s medium single-door model, gray fiberglass body, and unfinished finish keep cost in check while meeting general-purpose control needs.
Get a Quick Quote for a Eaton 201610-SDFQR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 201610-SDFQR?
Enquire Now
FAQs
Install the enclosure on a suitable wall surface using its wall-mount configuration. If needed, attach optional external mounting feet to increase stability on uneven surfaces. Ensure the hinged cover is closed during installation and use the padlock provision to secure the door after wiring is complete. Maintain a gasket seal by inspecting the seamless poured-in-place gasket during commissioning.
The 201610-SDFQR has a height of 21.79 in, width of 18.16 in, and depth of 10.34 in, with a weight of 17.5 lb. It is made from fiberglass, gray in color, and features a medium single-door design with a hinged cover. The unit includes a padlock provision and optional external feet for mounting flexibility.
Yes. The enclosure is rated NEMA 4X and UL 50 with CSA C22.2 certification, providing protection against water, corrosion, and dust ingress in outdoor and washdown applications. This makes it suitable for harsh industrial settings where reliable control panel protection is essential.
The key certifications are UL 50, NEMA 4X, and CSA C22.2. These indicate compliance with electrical enclosure standards, robust weather and corrosion resistance, and conformity with North American electrical safety requirements—critical for regulated manufacturing and process environments.
Its fiberglass construction and seamless gasket design reduce corrosion risk and water intrusion, lowering maintenance costs and downtime. The hinged cover speeds inspections, while the padlock provision supports secure access control. Optional mounting feet simplify retrofits and expansions, enabling faster iterations and lower total cost of ownership for panel assemblies.
