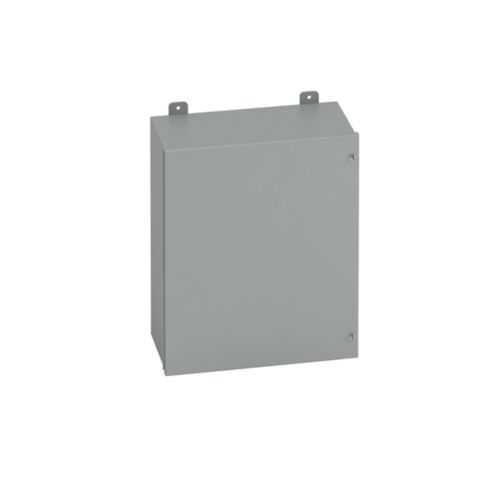

Eaton 20167-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 20167-12CHSC
Quick Summary
The Eaton B-Line JIC panel enclosure is a robust housing that protects electrical components in control panels and electrical rooms. It ensures reliable operation in manufacturing and process environments, reducing downtime caused by moisture, dust, and impact. The unit carries UL 508A, CSA C22.2, and NEMA 12 certifications, reflecting its compliance with essential safety and performance standards. Built from carbon steel with a 14-gauge wall and an ANSI 61 gray painted finish, it offers durable protection in indoor and semi-harsh settings. Its wall-mount design with external mounting feet provides flexible installation, while the continuous piano hinge and hinged cover simplify maintenance and inspections. This enclosure supports standard accessories for fast deployment and long service life, delivering real business value.
Product Information
Extended Description
20167-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 20" height, 7" length, 16" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
20167-12CHSC
UPC
782051770001
Product Length/Depth
7 in
Product Height
20 in
Product Width
16 in
Product Weight
30.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Durable carbon steel construction, 14 gauge wall, and ANSI 61 gray painted finish combine to deliver a rugged enclosure that withstands common industrial environments, reducing replacement cycles and maintenance disruption in panel assemblies. This translates to lower total ownership cost and improved uptime for packaging lines, machine controls, and process equipment, while ensuring compliant protection for sensitive control components. The NEMA 12 rating with an oil-resistant gasket protects against dust, moisture, and light oils, enabling reliable operation in indoor environments and spill-prone areas where cleanliness and safety are critical. The hinged cover with a continuous piano hinge provides quick, secure access for routine maintenance, improving servicing speed and minimizing machine downtime during inspections. Wall mounting with external feet supports flexible installation layouts, simplifying retrofits and upgrades in crowded electrical rooms. Special features such as whiteback, print pocket, and plated screws facilitate labeling, traceability, and long-term reliability across plant-wide installations.
