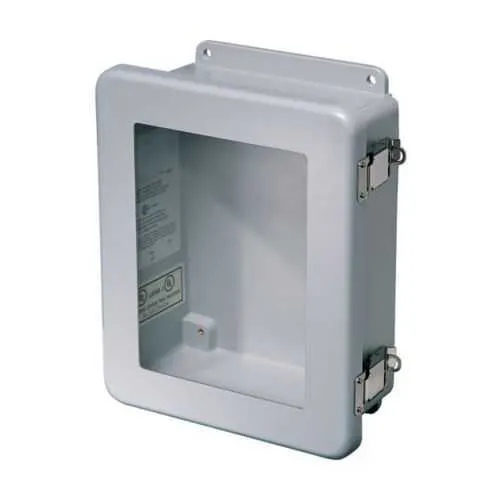

Eaton 20168-4XFCHQRCW JIC Panel Enclosure - NEMA 4X
Part Number: 20168-4XFCHQRCW
Quick Summary
Eaton B-Line series JIC panel enclosure protects electrical components in industrial control panels. Its fiberglass construction and NEMA 4X rating withstand harsh environments, while the hinged cover streamlines access during setup and maintenance. This wall-mount enclosure with external feet addresses space constraints and simplifies mounting in tight equipment rooms. UL 50 and CSA C22.2 certifications, along with the NEMA 4X standard, support regulatory compliance across diverse markets. The medium single-door design offers secure, accessible service for operators and technicians. For engineers and procurement teams, this enclosure delivers reliable protection, predictable performance, and a lower total cost of ownership through reduced corrosion-related downtime and longer service intervals. Keywords: fiberglass enclosure, wall-mount cabinet.
Product Information
Extended Description
20168-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 22" height, 8.83" length, 17.68" width, NEMA 4X, Hinged cover, 4XFCHQRCW enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
20168-4XFCHQRCW
UPC
782051524147
Product Length/Depth
8.83 in
Product Height
22 in
Product Width
17.68 in
Product Weight
19.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCW enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass enclosure with a seamless poured in-place gasket provides superior moisture and chemical resistance. Business impact: reduces corrosion-related maintenance and extends service life in washdown and outdoor installations. Application: ideal for process control panels, outdoor equipment, and harsh factory floors where metal enclosures may degrade. Feature: NEMA 4X enclosure rated to UL 50 with CSA C22.2 compliance ensures protection against corrosion, water ingress, and ice formation. Business impact: regulatory conformance minimizes compliance risk, speeds installation approvals, and lowers insurance concerns. Application: suitable for outdoor substations, weather-exposed conveyors, and industrial machinery cabinets. Feature: Hinged cover with external mounting feet and padlock provisions plus a stainless pull-drawn catch improves security and serviceability. Business impact: quick, tool-free access for maintenance while keeping panels secured against tampering. Application: OEM control panels in manufacturing lines requiring reliable access control. Feature: Wall-mount design yields space efficiency with external feet for sturdy installation; dimensions 22 in height, 17.68 in width, 8.83 in depth, weight 19.5 lb. Business impact: compact footprint simplifies retrofits and reduces installation time without compromising clearance for cable routing. Application: repair, upgrade, and expansion projects in constrained control rooms. Feature: Compatible with Eaton B-Line series ecosystem, with a medium single-door layout and external mounting feet. Business impact: consolidates parts, simplifies stocking, and supports standardized maintenance across multiple enclosures. Application: ideal for system integrators delivering modular control panels.
Get a Quick Quote for a Eaton 20168-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 20168-4XFCHQRCW?
Enquire Now
FAQs
The enclosure uses a wall-mount configuration with external mounting feet, which simplifies installation in tight spaces and reduces the need for specialized brackets. Technicians benefit from faster alignment, straightforward wiring access through the hinged cover, and a stable, vibration-resistant mounting surface, resulting in shorter project timelines and less field rework.
Fiberglass provides inherent corrosion resistance that is superior to many metals in chemical or washdown scenarios. The NEMA 4X rating ensures robust ingress protection against water, dust, and ice, which translates to longer enclosure life, lower maintenance costs, and fewer unplanned outages in factories, food processing, and outdoor installations.
Yes, the enclosure is designed for harsh outdoor and washdown environments. With a NEMA 4X rating, it offers strong protection against water and corrosion, making it appropriate for exterior walls, loading docks, and exposed machinery areas where reliability and protection from the elements are essential.
The 20168-4XFCHQRCW includes padlock provisions and a stainless steel pull-drawn catch for secure closure. This combination provides reliable tamper resistance while enabling quick, tool-free access for authorized maintenance personnel during routine servicing and inspections.
Benefits include reduced corrosion-related downtime due to fiberglass construction, lower maintenance costs from sealed moisture protection, and streamlined installation with external feet for easier mounting. For system integrators, using the B-Line family promotes standardization, faster part replacement, and a longer service life across multiple control panels.
