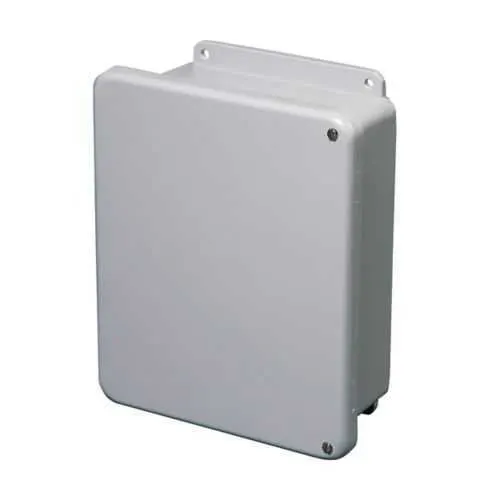

Eaton 20168-4XFCHSC Enclosure - NEMA 4X UL 50
Part Number: 20168-4XFCHSC
Quick Summary
The Eaton B-Line series JIC panel enclosure is designed to protect electrical gear in challenging industrial environments. Many users struggle with ingress, corrosion, and maintenance downtime when enclosures fail to seal properly in wash-down or outdoor sites. With UL 50, NEMA 4X and CSA C22.2 certifications, this fiberglass enclosure delivers rugged protection and long service life. Its wall-mount design, hinged cover, and seamless gasket help streamline installation and reduce total cost of ownership, while supporting maintenance-free operation. This combination of durability and practical design makes it well-suited for electrical panels in harsh manufacturing, water treatment, and utility infrastructures.
Product Information
Extended Description
20168-4XFCHSC Eaton: Eaton B-Line series JIC panel enclosure, 22" height, 8.83" length, 17.68" width, NEMA 4X, Hinged cover, 4XFCHSC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
20168-4XFCHSC
UPC
782051523881
Product Length/Depth
8.83 in
Product Height
22 in
Product Width
17.68 in
Product Weight
21 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers excellent corrosion resistance while remaining lighter than metal options, reducing handling and installation costs on site. The business impact is lower maintenance frequency and longer service intervals, especially in chemical plants and coastal facilities where ingress and rust are common. Application-wise, this enclosure fits standard wall-mount setups with external mounting feet for versatile installation and fast commissioning. The NEMA 4X rating translates to reliable weather, impact, and splash protection, improving uptime in outdoor installations and wash-down zones. A hinged cover with a seamless poured-in-place gasket minimizes leakage paths, simplifying sealing and routine inspections. The sturdy gray fiberglass unit supports long-term performance in aggressive environments while stainless screws resist corrosion, lowering total cost of ownership over the equipment lifecycle. With dimensions of 22 in height, 17.68 in width, and 8.83 in depth, it accommodates typical control panels and wiring or cable management solutions, even when space is constrained.
Get a Quick Quote for a Eaton 20168-4XFCHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 20168-4XFCHSC?
Enquire Now
FAQs
The 20168-4XFCHSC is designed for wall mounting with external mounting feet, providing flexible installation in tight spaces. Its wall-mount configuration simplifies wiring access and serviceability, while maintaining a sealed, weather-protected enclosure for control panels in industrial environments.
Yes. The enclosure carries a NEMA 4X rating and UL 50/CSA C22.2 compliance, offering weather, corrosion, and impact protection suitable for outdoor or wash-down areas. Fiberglass construction further enhances resistance to chemicals and moisture, extending service life in harsh environments.
The unit measures 22 inches in height, 17.68 inches in width, and 8.83 inches in depth, with a weight of about 21 pounds. These dimensions help determine available mounting space and clearance for door operation and cable entry, ensuring compatibility with your control hardware and back panels.
The enclosure meets UL 50, NEMA 4X, and CSA C22.2 standards, indicating robust enclosure integrity for electrical equipment in harsh conditions. These certifications support compliance in regulated facilities and help reduce qualification time for installations.
Fiberglass provides superior corrosion resistance compared to metal, reducing repainting and corrosion-related failures. The sealed gasket and hinged cover simplify inspections and maintenance, lowering downtime. Overall, customers achieve lower lifecycle costs and longer intervals between replacements in aggressive environments.
