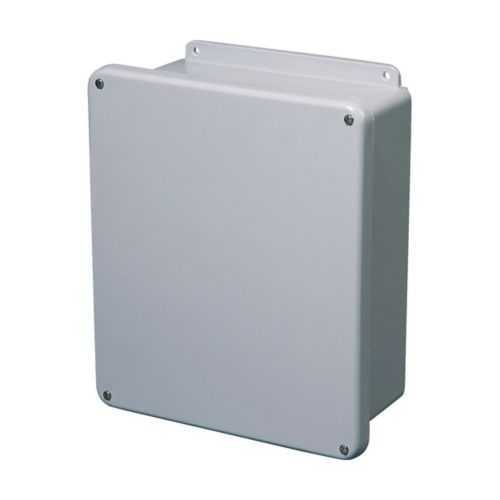

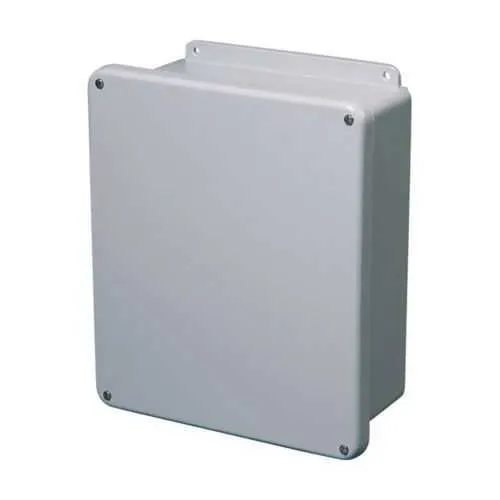

Eaton 20168-4XFLC JIC Panel Enclosure - NEMA 4X
Part Number: 20168-4XFLC
Quick Summary
Eaton B-Line 20168-4XFLC JIC panel enclosure protects electrical gear in control panels across industrial environments. In the field, engineers contend with moisture, corrosion, and maintenance complexity that drive downtime and costs. UL 50, NEMA 4X, and CSA C22.2 certifications support safe operation and regulatory compliance for harsh installations. Its fiberglass construction resists chemical attack and weathering, while the wall-mount design enables flexible siting and space optimization. A screw cover, external mounting feet, and a medium single door streamline access and service, reducing installation time. With 22 in height, 17.68 in width, and 8.83 in depth, the enclosure fits standard cabinet layouts, delivering long-term cost savings.
Product Information
Extended Description
20168-4XFLC Eaton: Eaton B-Line series JIC panel enclosure, 22" height, 8.83" length, 17.68" width, NEMA 4X, Screw cover, 4XFLC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
20168-4XFLC
UPC
782051523751
Product Length/Depth
8.83 in
Product Height
22 in
Product Width
17.68 in
Product Weight
21 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFLC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers exceptional corrosion resistance and lighter weight. That reduces maintenance costs, lowers installation labor, and extends service life, particularly in coastal plants or chemical facilities. It is a practical choice for washdown environments and outdoor installations where metal enclosures may degrade prematurely. NEMA 4X and UL 50 certifications ensure environmental protection and electrical safety, supporting compliance in harsh facilities and regulated processes. The seamless poured-in-place gasket provides a reliable water-tight seal, reducing ingress and maintenance, which translates into more consistent uptime. Wall mounting with external feet simplifies installation on irregular floors or tight spaces, saving time during retrofits or new builds. The screw cover design balances security with serviceability, allowing quick access for inspection and maintenance while keeping cabling organized. Overall, the enclosure’s footprint—22 in high, 17.68 in wide, 8.83 in deep—facilitates standardized layouts and scalable automation deployments.
Get a Quick Quote for a Eaton 20168-4XFLC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 20168-4XFLC?
Enquire Now
FAQs
The 20168-4XFLC supports wall mounting with external mounting feet, which simplifies installation on uneven floors and in tight spaces. This configuration reduces the need for additional mounting hardware and makes retrofits faster. For new builds, plan the enclosure location to optimize service access through the medium single door, while maintaining clearance for door swing and gasket integrity.
This enclosure is certified UL 50 and NEMA 4X, with CSA C22.2 recognition, ensuring electrical safety and outdoor-grade protection. The fiberglass body resists corrosion and chemical attack, making it suitable for washdown areas and outdoor installations. These certifications help meet industry compliance requirements in sectors like water treatment, food processing, and chemical processing.
Yes. The 20168-4XFLC is designed for harsh environments, offering NEMA 4X protection and a fiberglass construction that resists corrosion and moisture. Its seamless gasket enhances ingress protection, while the wall-mount configuration facilitates easy placement in outdoor or washdown areas. Consider pairing with compatible cable glands and accessories to maximize environmental integrity.
With 22 in height, 17.68 in width, and 8.83 in depth, the enclosure fits within standard cabinet footprints and supports modular layout planning. Weighing 21 lb, it is manageable for quick wall-installations and field adjustments without specialized lifting equipment. The relatively compact footprint helps optimize space in control rooms and equipment rooms while maintaining ample internal space for components.
Fiberglass construction provides superior corrosion resistance, translating to lower maintenance frequency and longer service life in aggressive environments. The lighter weight reduces handling and installation labor, contributing to lower upfront and lifecycle costs. Additionally, the seamless gasket and screw-cover design simplify routine inspections and access, minimizing downtime during upgrades or repairs.
