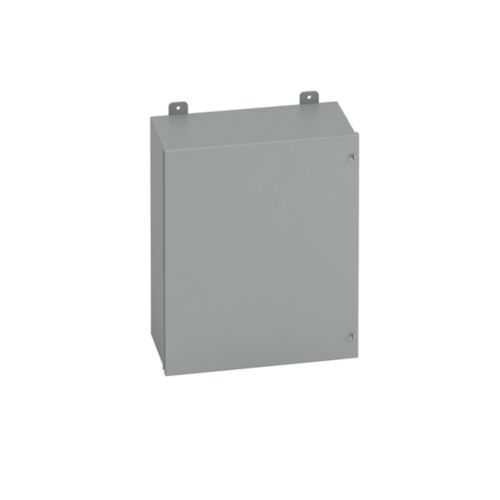

Eaton 20207-12CHSC JIC panel enclosure - NEMA 12
Part Number: 20207-12CHSC
Quick Summary
The Eaton 20207-12CHSC JIC panel enclosure is a wall-mounted housing designed to protect electrical controls in rugged industrial environments. In tight installations, technicians often struggle with limited access, gasket leaks, and corrosion risk; this model mitigates those challenges with a cont. pianohinge, oil-resistant gasket, and a robust carbon steel shell. It carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating, signaling safety and reliability for indoor, non-hazardous processes. With its 20x20 in footprint and 7 in depth, ANSI 61 gray finish, and external mounting feet, it aligns with maintenance workflows while delivering a cost-effective solution for panel builders and system integrators. The enclosure supports efficient installation, easy serviceability, and durable protection in industrial automation environments.
Product Information
Extended Description
20207-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 20" height, 7" length, 20" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
20207-12CHSC
UPC
782051770100
Product Length/Depth
7 in
Product Height
20 in
Product Width
20 in
Product Weight
34.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The carbon steel, 14 gauge enclosure provides exceptional rigidity and impact resistance, reducing risk of denting and misalignment in busy manufacturing floors while supporting long service life. This translates to lower replacement costs and less downtime when panels are accessed for routine maintenance or upgrades. Feature → Business Impact → Application: The oil-resistant gasket and NEMA 12 protection minimize dust ingress and liquid splashes, delivering improved reliability in oily workshops and wash-down areas; ideal for process lines and machine control panels where cleanliness and containment matter. Feature → Business Impact → Application: A continuous piano hinge and hinged cover enable rapid access to internal components, cutting maintenance time and facilitating field upgrades in control cabinets and electrical assemblies. Feature → Business Impact → Application: External mounting feet and a wall-mount design simplify installation, reduce footprint, and facilitate retrofit projects in existing plants or new panel builds, especially where space is constrained. Feature → Business Impact → Application: The ANSI 61 gray painted finish and carbon steel construction provide a durable, corrosion-resistant surface that survives routine cleaning and environmental exposure, ensuring consistent labelling and compliant appearance for electrical enclosures in factories. Feature → Business Impact → Application: With UL 508A and CSA C22.2 certifications and a NEMA 12 rating, this enclosure supports compliance-driven purchasing decisions and risk reduction for electrical installations in commercial/industrial automation projects.
