Eaton MV AutoVAR 2188MV3AD38FGMW capacitor bank - IEEE Std. 18 CSA Certified
Part Number: 2188MV3AD38FGMW
Quick Summary
Eaton MV AutoVAR filtered capacitor bank is designed to optimize reactive power management for high-voltage industrial and utility-scale applications. This solution helps operators reduce energy waste, improve voltage stability, and support reliable equipment operation in demanding environments. The design carries IEEE Std. 18 and CSA certification (Canada Only), underscoring compliance and safety for North American deployments. With a 60 Hz frequency rating and a 13.8 kV operating voltage, it delivers consistent power factor correction while enabling scalable retrofits and new installations. By combining robust performance with straightforward integration, this capacitor bank offers measurable business value, including reduced utility penalties, lower operating costs, and improved grid resilience.
Product Information
Extended Description

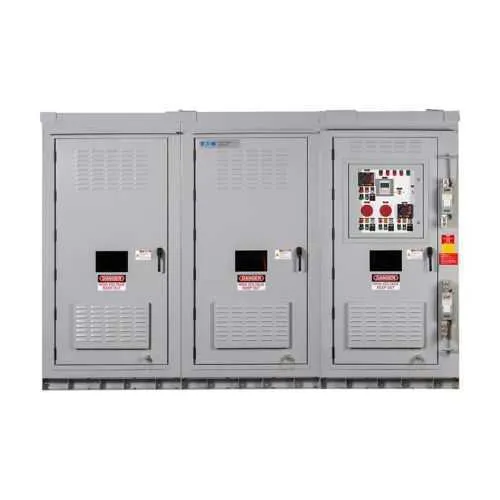

2188MV3AD38FGMW Eaton: Eaton MV AutoVAR 15kV Class Standard Design capacitor bank, 2188KVAR, 13800V, 60HZ, 4.2H DETUNED FILTER
Product Name
Eaton MV AutoVAR filtered capacitor bank
Catalog Number
2188MV3AD38FGMW
UPC
786689241759
Product Length/Depth
106 in
Product Height
99 in
Product Width
65 in
Product Weight
10000 lb
Certifications
IEEE Std. 18 CSA Certified (Canada Only)
Frequency rating
60 Hz
kVA rating
2188 kVAR
Voltage rating
13800 V
Feature: High-voltage class design for 13.8 kV systems → Business Impact: Enables reliable integration with existing 15 kV class switchgear and transformers, reducing integration risk and accelerating project timelines. Application: Utility substations and large industrial plants seeking scalable reactive power compensation. Feature: 2188 kVAR capacity → Business Impact: Delivers significant reactive power support to improve power factor, reduce transmission losses, and lower demand charges; ideal for load-heavy manufacturing lines and data centers. Application: Retrofit projects and greenfield builds requiring substantial VAR support. Feature: 60 Hz operation with 4.2 H detuned filter → Business Impact: Controls harmonic distortion and improves system stability, reducing equipment stress and maintenance costs. Application: Facilities with sensitive drives and motor loads subject to harmonic penalties. Feature: 13800 V rating and 106 in x 99 in x 65 in footprint → Business Impact: Clear installation pathway with standardized footprint, enabling precise planning and crane-assisted installation. Application: Large-scale electrical rooms and retrofit sites where space planning and mounting are critical. Feature: IEEE Std. 18 and CSA Canada certification → Business Impact: Simplifies regulatory approvals and field acceptance, reducing commissioning risk. Application: North American projects requiring strong documentation and compliance. Feature: Robust construction and 10000 lb weight class → Business Impact: Durable, longer service life with predictable maintenance cycles; supports installation in demanding environments. Application: Mining, petrochemical, and heavy industry where uptime matters. Feature: Catalog Number and detailed specs available for procurement → Business Impact: Streamlines sourcing, vendor qualification, and BOM integration. Application: Procurement workflows in OEM, EPC, and maintenance environments.
