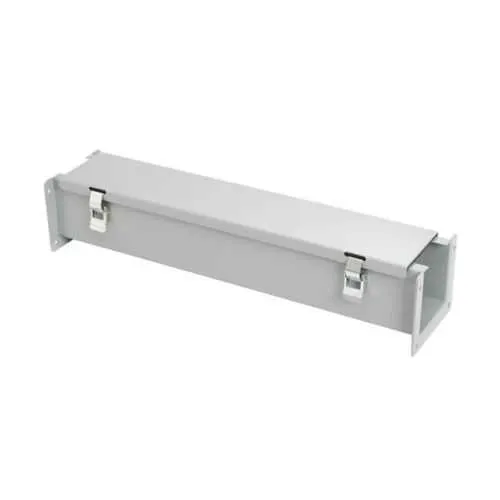

Eaton 2204-12LW Wireway - NEMA 12 UL Listed
Part Number: 2204-12LW
Quick Summary
The Eaton 2204-12LW Wireway is a durable enclosure channel designed to organize and protect wiring in industrial control panels. Engineers often wrestle with tight layouts and environmental exposure that complicate cable routing and future expansion. This model carries UL Listed and CSA C22.2 certifications for compliance, and provides NEMA 12 protection to withstand dust and splashing liquids. With 14 gauge steel, ANSI 61 gray finish, a hinged cover, and quick-release latches, it supports faster installation, reduced maintenance, and more predictable field service. The wireway hanger mounting enables flexible retrofits and scalable organization for growing automation systems, helping facilities cut downtime and improve system reliability.
Product Information
Extended Description
2204-12LW Eaton: Eaton B-Line series wireway, 2.5" height, 4" length, 2.5" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
2204-12LW
UPC
782051004243
Product Length/Depth
4 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
1.902 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover is held by butt hinges&quick-release latches
Type
12LW wireway
Constructed from 14 gauge steel, the 2204-12LW provides rugged mechanical protection for bundled cables in demanding environments, translating to lower risk of abrasion and damage and longer service life for control panels in manufacturing lines. The hinged cover with butt hinges and quick-release latches offers rapid access during routine maintenance, reducing downtime and enabling quicker diagnostics in machine controls. Finished in ANSI 61 gray with an oil-resistant gasket, the enclosure delivers improved corrosion resistance and environmental sealing, extending life in factory floors and wash-down areas. Wireway hanger mounting simplifies installation and retrofits, supporting flexible layouts and scalable organization as automation systems expand. UL Listed and CSA certified with NEMA 12 protection help meet regulatory requirements and improve field acceptance across regulated facilities.
Get a Quick Quote for a Eaton 2204-12LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 2204-12LW?
Enquire Now
FAQs
The 2204-12LW is designed as part of the Eaton B‑Line wireway family and uses standard 12LW dimensions and mounting practices. It integrates with typical B‑Line hanger accessories and hinges, enabling straightforward retrofits or expansions in existing panels. Users benefit from consistent fit, predictable installation times, and maintained system aesthetics across new and legacy enclosures.
Key specs include a 2.5 inch product height, 4 inch length, 2.5 inch width, and a 14 gauge steel construction with ANSI 61 gray finish. It features a hinged cover with butt hinges and quick-release latches, NEMA 12 protection, and weight around 1.902 lb. The enclosure is UL Listed and CSA C22.2 certified, suitable for dust and splash-prone environments.
Yes. The 2204-12LW offers NEMA 12 protection, a heavy-duty 14 gauge steel body, and an oil‑resistant gasket, making it suitable for environments with dust, light splashes, and exposure to oils. The ANSI 61 gray finish adds corrosion resistance, while the hinged cover with quick-release latches supports reliable field service without compromising protection.
The enclosure is UL Listed and CSA C22.2 certified, which helps ensure compliance with safety and performance standards in North American facilities. These certifications support regulatory acceptance, simplify audits, and provide assurance that the wireway meets established electrical enclosure requirements for industrial applications.
Installation benefits include a wireway hanger mounting method that simplifies mounting and retrofits, quick-access hinged cover with quick-release latches for fast maintenance, and an overall robust build that reduces long-term maintenance costs. The combination of durable steel, protective finish, and compliant ratings helps minimize downtime and extend service intervals in automated production lines.
