Eaton 2250MV3AI38FGMW MV AutoVAR unfiltered capacitor bank - CSA Certified
Part Number: 2250MV3AI38FGMW
Quick Summary
Eaton 2250MV3AI38FGMW MV AutoVAR unfiltered capacitor bank provides rapid reactive power support for large industrial feeders. Engineers often wrestle with voltage fluctuations and power-factor penalties that erode efficiency and raise operating costs. This 2250 kVAR, 13.8 kV, 60 Hz solution delivers scalable capacity and robust construction that fits commercial and industrial HV networks. It carries CSA Certification (Canada Only), supporting Canadian installations, while CE or other regional approvals may be pursued per local code requirements. The unit is designed to integrate with existing MV switchgear and control systems, delivering predictable performance and simplified procurement. For project teams, this translates into faster commissioning, reduced risk, and a clearer pathway to improved power quality and energy savings.
Product Information
Extended Description

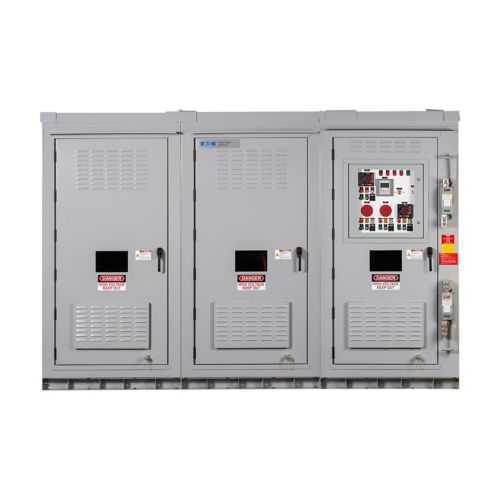

2250MV3AI38FGMW Eaton: Eaton MV AutoVAR 15kV Class Standard Design capacitor bank,2250KVAR, 13800V, 60HZ, UNFILTERED
Product Name
Eaton MV AutoVAR unfiltered capacitor bank
Catalog Number
2250MV3AI38FGMW
UPC
786689241650
Product Length/Depth
106 in
Product Height
99 in
Product Width
65 in
Product Weight
10000 lb
Certifications
CSA Certified (Canada Only)
Frequency rating
60 Hz
kVA rating
2250 kVAR
Voltage rating
13800 V
High kVAR capacity and voltage compatibility enable large-scale reactive power compensation, improving voltage stability and reducing penalties from utilities in demanding industrial environments. The 2250 kVAR at 13.8 kV, 60 Hz alignment ensures seamless integration with typical MV networks, supporting faster project timelines and predictable energy savings. The unfiltered capacitor bank design simplifies integration when upstream harmonic filtering is provided by existing systems, reducing upfront costs and installation complexity for site operators. The 15 kV Class Standard Design supports broader applicability across high-voltage distribution schemes, while remaining compatible with common MV switchgear and control architectures. A substantial footprint—106 inches long, 99 inches high, 65 inches wide—and a 10,000 lb weight necessitate proper rigging and floor loading planning, but provide a rugged, maintenance-friendly platform for long-term reliability. CSA Certification for Canada reinforces regulatory compliance on Canadian projects, with ongoing inspection and preventive maintenance aligning to established schedules and safety practices.
