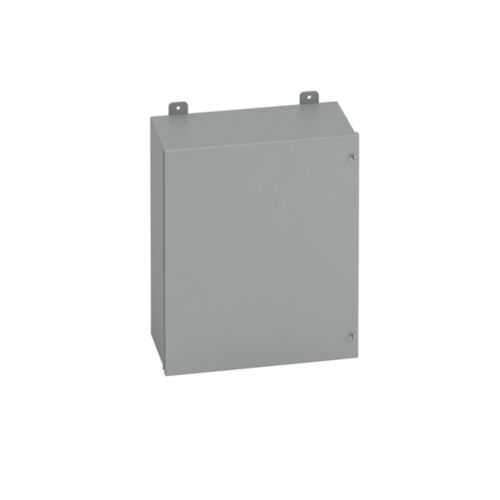

Eaton 24207-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 24207-12CHSC
Quick Summary
Eaton 24207-12CHSC JIC panel enclosure provides a robust housing for electrical controls in industrial environments. When space is tight or maintenance costs climb, you need a unit that combines accessibility with protection. This enclosure carries UL 508A, CSA C22.2, and NEMA 12 ratings, reinforcing compliance and reliability in demanding settings. By leveraging the B-Line series, it pairs well with other Eaton enclosures and control components, delivering scalable protection for evolving systems while supporting reducing downtime and total cost of ownership.
Product Information
Extended Description
24207-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 24" height, 7" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
24207-12CHSC
UPC
782051770209
Product Length/Depth
7 in
Product Height
24 in
Product Width
24 in
Product Weight
50.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature Hinged cont piano hinge with whiteback and print pocket Business Impact Fast, reliable door operation and easy labeling reduces service time and maintenance costs. Application Suitable for frequent access panels in manufacturing lines and process equipment, enabling quick inspection and adjustments while keeping critical components shielded. Feature External mounting feet with wall mounting method Business Impact Flexible installation in crowded equipment rooms and on vertical surfaces minimizes space constraints. Application Ideal for compact control panels in original equipment manufacturing and maintenance-heavy environments. Feature 14 gauge carbon steel with ANSI 61 gray painted finish Business Impact Superior structural integrity and corrosion resistance extend service life in harsh factories. Application Suitable for high-traffic industrial panels needing long-term durability. Feature 24 in height x 24 in width x 7 in depth, weight 50.6 lb Business Impact Manageable weight for installation and relocation without specialized equipment. Application Fits standard control panels while preserving accessibility and airflow. Feature NEMA 12 rating with oil-resistant gasket Business Impact Provides dust and light oil splash protection, reducing contamination risk. Application Essential in dusty or oily production areas. Feature Special features cont piano hinge whiteback print pocket plated screws Business Impact Enhances maintainability and documentation, facilitating labeling and service history. Application Ideal for regulated environments requiring traceability and clear access.
Get a Quick Quote for a Eaton 24207-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 24207-12CHSC?
Enquire Now
FAQs
For installation, mount the enclosure on a suitable wall surface using external mounting feet as specified. The hinged cover provides convenient access without removing hardware, and the wall-mount design supports tight spaces. Ensure proper gasket seating and verify UL 508A and CSA C22.2 compliance during setup to maintain NEMA 12 protection in your environment.
Key specs include 24 in height, 24 in width, and 7 in depth, with a 14 gauge carbon steel body. Weight is approximately 50.6 lb, finish is ANSI 61 gray, and the enclosure is designed with a hinged door and external mounting feet. It carries NEMA 12 along with UL 508A and CSA C22.2 certifications for control panel applications.
Yes, the NEMA 12 rating provides protection against dust and light oil splashes, making it suitable for many manufacturing and processing lines. The oil-resistant gasket further enhances sealing, helping to maintain internal equipment reliability. This makes it a practical choice for control panels that operate in mildly aggressive environments.
The enclosure features external mounting feet for versatile wall mounting and cont piano hinge with whiteback and print pocket for labeling. Plated screws assist with corrosion resistance and long-term maintenance. While not all accessories are listed here, this design integrates with standard B-Line JIC components to support modular panel layouts.
The combination of durable carbon steel construction, NEMA 12 protection, and UL/CSA certifications minimizes maintenance and replacement costs by reducing dust and oil ingress. The hinged door and labeling pocket simplify routine inspections and documentation, lowering downtime during preventive maintenance and changes to the control system while improving regulatory compliance.
