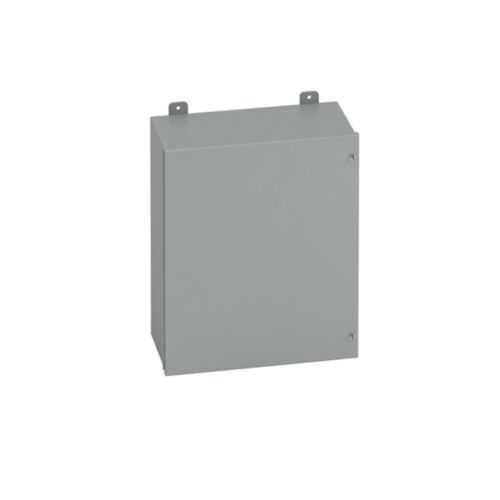

Eaton B-Line JIC panel enclosure 24209-12CHSC - UL 508A Listed
Part Number: 24209-12CHSC
Quick Summary
Eaton B-Line JIC panel enclosure protects control gear in electrical rooms and industrial panels, offering a rugged, ready-to-install solution. Manufacturers often face space constraints, corrosive environments, and gasket failures; this unit provides twenty four inch height, twenty inch width, and nine inch depth, along with a carbon steel body and oil resistant gasket. It carries UL 508A, CSA C twenty two, and NEMA twelve certifications, reinforcing electrical safety and regulatory compliance for harsh environments. Designed for wall mounting with external feet and a hinged cover, this enclosure delivers reliable access and long-term maintenance efficiency for improved ROI and uptime.
Product Information
Extended Description
24209-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 24" height, 9" length, 20" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
24209-12CHSC
UPC
782051770605
Product Length/Depth
9 in
Product Height
24 in
Product Width
20 in
Product Weight
54.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Size and capacity align with real world installation needs, providing a twenty four inch high, twenty inch wide, and nine inch deep footprint that accommodates a practical array of control components. The business impact is clear: you gain usable interior space without expanding the footprint, reducing the number of enclosures required on a line and simplifying wiring layouts. The durable carbon steel construction with fourteen gauge walls delivers structural integrity in dusty or damp plant zones, guarding against physical damage and corrosion while lowering replacement costs. The hinged cover and continuous piano hinge improve serviceability, enabling rapid access to terminals and devices, which translates to less downtime during maintenance and upgrades. External mounting feet offer flexible mounting on varied wall surfaces, speeding installation and minimizing site prep work. The painted ANSI sixty one gray finish adds an extra layer of protection and easier labeling, supporting long-term compliance and visual organization on the factory floor. Special features such as a print pocket and plated screws streamline labeling and assembly, reducing field modification needs and ensuring a tidy, professional panel appearance. Overall, this enclosure combines reliability, ease of installation, and regulatory alignment to support safer, more efficient panel installations in industrial environments.
Get a Quick Quote for a Eaton 24209-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 24209-12CHSC?
Enquire Now
FAQs
Install by locating a flat wall surface with adequate clearance for service access. Use the external mounting feet to secure the unit, align the hinges for smooth operation, and ensure gasket seating remains intact. Proper mounting reduces vibration, improves door alignment, and supports reliable protection for control hardware.
Key specifications include a twenty four inch height, twenty inch width, and nine inch depth, plus a carbon steel body with fourteen gauge walls. The unit uses an oil resistant gasket and a hinged cover for easy access. It is rated for NEMA twelve conditions and is UL listed and CSA compliant, aligning with typical industrial control panel requirements.
Yes, it is designed for challenging environments. The NEMA twelve rating provides protection against dust and water exposure, while the painted carbon steel chassis and gasket system resist routine wear. This combination supports reliable operation in factory floors, machine rooms, and other demanding spaces, reducing maintenance cycles and strengthening safety.
The enclosure carries UL listed status, CSA certification, and a NEMA twelve rating. These certifications verify electrical safety, compatibility with recognized standards, and suitability for protected enclosures in industrial settings. For project teams, certification alignment streamlines audits, vendor qualifications, and regulatory compliance across facilities.
The hinged cover and continuous piano hinge enable fast access for inspections and upgrades, reducing downtime. External feet simplify mounting and serviceability, while the durable finish minimizes repaint or corrosion-related replacements. Together, these features translate to lower maintenance costs, shorter project timelines, and a more predictable return on investment through improved system reliability.
