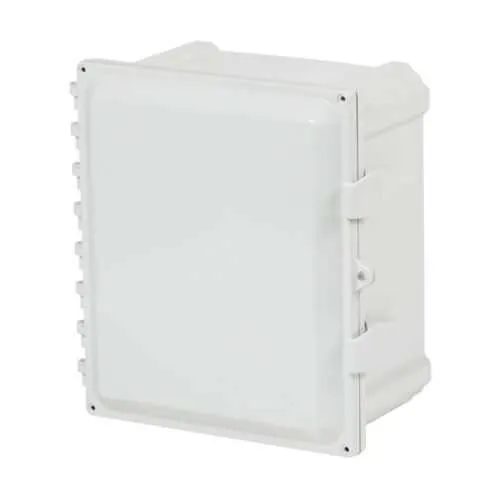

Eaton 242410-4XPCQR JIC Panel Enclosure - NEMA 4X
Part Number: 242410-4XPCQR
Quick Summary
The Eaton 242410-4XPCQR JIC panel enclosure is a rugged wall-mount solution for industrial control panels in harsh environments. It protects sensitive electronics from dust, water, and corrosion while delivering easy maintenance access. The enclosure carries a NEMA 4X rating and is built in the US, reflecting reliability in demanding facilities; CE or SIL certifications are not listed for this model, so verify your compliance requirements accordingly. By leveraging polycarbonate construction and a hinged cover with padlock provisions, it combines security with serviceability. Its external mounting feet option and compact footprint support flexible installations, helping reduce retrofit time and improve uptime in manufacturing and process environments.
Product Information
Extended Description
242410-4XPCQR Eaton: Eaton B-Line series JIC panel enclosure, 25.4" height, 11.4" length, 26.7" width, NEMA 4X, Hinged cover, 4XPCQR enclosure, Wall mount, Medium single door, Optional external mounting feet, Polycarbonate
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
242410-4XPCQR
UPC
799038775324
Product Length/Depth
11.4 in
Product Height
25.4 in
Product Width
26.7 in
Product Weight
23 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
Polycarbonate
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XPCQR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Polycarbonate pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: NEMA 4X rated polycarbonate enclosure → Business Impact: provides superior environmental protection and durable, corrosion-resistant housing → Application: ideal for harsh industrial, outdoor, and wash-down environments. Feature: Hinged cover with polycarbonate pull drawn catch → Business Impact: quick, secure access reduces maintenance downtime while preventing unintended openings → Application: control panels and field-witted maintenance in busy plants. Feature: Wall mounting with optional external mounting feet → Business Impact: installation flexibility in tight spaces and easy retrofitting into existing layouts → Application: retrofit projects and space-constrained control rooms. Feature: 23 lb weight and large interior space with dimensions 25.4 in H x 26.7 in W x 11.4 in D → Business Impact: manageable handling and planning accuracy for panel builds → Application: efficient assembly of electrical controls in moderate to large enclosures. Feature: Padlock provision for security → Business Impact: improved asset protection and policy-compliant access control → Application: plant floors and secured areas requiring controlled entry. Feature: Gray polycarbonate material with unfinished finish → Business Impact: resilient, low-maintenance enclosure with flexible interior finishes → Application: standard industrial installations across 여러 environments, including manufacturing and process facilities.
Get a Quick Quote for a Eaton 242410-4XPCQR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 242410-4XPCQR?
Enquire Now
FAQs
This model is designed for wall mounting with an optional external mounting feet accessory. The combination supports flexible placement in tight spaces and enables stable installation on vertical surfaces, making it easier to align with existing panels, conduits, and door openings without rerouting mounting hardware.
The enclosure carries a NEMA 4X rating and is constructed from polycarbonate, delivering resistance to dust, water exposure, and corrosion. This combination helps maintain internal electronics protection in manufacturing floors, outdoor locations, and wash-down environments, reducing the risk of control faults and service calls.
Yes. It includes a padlock provision and a hinged cover for secure access control. The pull drawn catch simplifies opening while preventing accidental openings, helping engineers protect sensitive drives and controllers from tampering while still allowing authorized maintenance.
The enclosure measures 25.4 inches high, 26.7 inches wide, and 11.4 inches deep, with a shipping weight of 23 pounds. Its gray polycarbonate body and unfinished finish support straightforward installation and interior customization, aligning with typical panel depth allowances and space constraints in industrial facilities.
Consider wall mounting as the primary method, with optional external feet for added stability in uneven spaces. Plan for hinge clearance with the 90-degree door swing, ensure padlock provisions fit your security policy, and verify compatibility with your control panels and conduit routing to minimize retrofit time.
