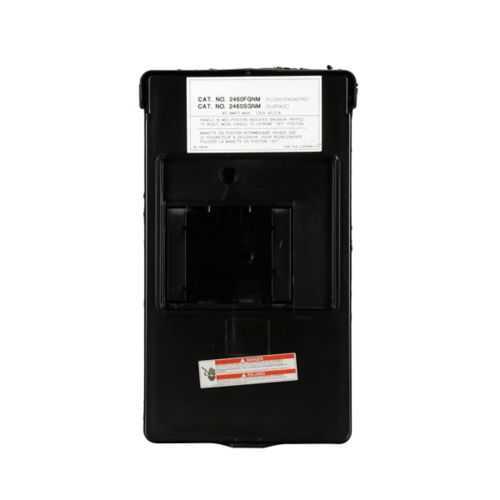

Eaton 2460SGNM Main Lug Loadcenter - UL Listed
Part Number: 2460SGNM
Quick Summary
Eaton 2460SGNM main lug loadcenter delivers compact, surface-mounted electrical distribution for small commercial panels. Engineers often struggle with space constraints and code compliance when upgrading feeders in tight enclosures. This unit earns UL Listed certification and uses a NEMA 1 enclosure, supporting 60 A with a 10 kAIC interrupt rating to help ensure reliable protection. Grounding is simplified with the GB4NM ground bar included, while the aluminum bus keeps weight down for easier handling during installation. Designed for four circuits across two spaces, it accommodates #14-2 Cu/Al conductors and a single-phase, 120/240 V feed, delivering practical value for modernization projects.
Product Information
Extended Description
2460SGNM Eaton: Eaton BR main lug loadcenter,Includes GB4NM ground bar,60 A,2,Aluminum,NEMA 1,Surface,4 Circuits,2 Spaces,Three-wire,Single-phase,120/240 V,#14-2 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
2460SGNM
UPC
786676369794
Product Length/Depth
8.75 in
Product Height
4.75 in
Product Width
3.25 in
Product Weight
0.95 lb
Warranty
10 year
Certifications
UL Listed
Type
Main lug loadcenter
Amperage Rating
60 A
Bus material
Aluminum
Mounting
Surface
Number of circuits
4
Number of spaces
2
Phase
Single-phase
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Enclosure
NEMA 1
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - 2460SGNM
Eaton type BR circuit breaker limited warranty June 2024
Feature: 60 A main lug loadcenter with four circuits and two spaces. Business Impact: Enables compact, cost-efficient distribution for small commercial panels without overbuilding the enclosure. Application: Retrofit projects and new installations where space is at a premium and a single-phase 120/240 V feed is standard. Long-tail keywords: BR main lug, surface-mount loadcenter, 60 amp panel, four-circuit enclosure. The aluminum bus reduces weight, improving handling during service entry upgrades and simplifying field wiring. Application-specific context: ideal for basements, utility rooms, and limited-wall spaces where rapid commissioning matters. Feature → Business Impact → Application: ground bar included GB4NM shortens install time and lowers wiring errors, boosting first-pass inspection success. Long-tail keywords: GB4NM ground bar, UL listed BR loadcenter. Feature → Business Impact → Application: UL Listed certification and 10 kAIC interrupt rating deliver enhanced protection for modestly loaded service panels, supporting compliant installs with fewer field modifications. Long-tail keywords: UL Listed, 10 kAIC, interrupt rating, NEMA 1 enclosure.
Get a Quick Quote for a Eaton 2460SGNM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 2460SGNM?
Enquire Now
FAQs
Yes. The 2460SGNM is a BR family main lug loadcenter designed for surface installation and fits standard BR panels that accept main-lug configurations. It provides four circuits across two spaces, uses #14-2 Cu/Al conductors, and includes the GB4NM ground bar. It is UL Listed and rated for 120/240 V single-phase with a 60 A rating and 10 kAIC interrupt rating, supporting straightforward retrofit compatibility.
Key specs include a 60 A amperage rating, 120/240 V single-phase operation, aluminum bus, four circuits, and two spaces. It mounts surface, comes in a NEMA 1 enclosure, has an interrupt rating of 10 kAIC, and is UL Listed. Conductors supported are #14-2 Cu/Al, and the GB4NM ground bar is included for proper grounding during installation.
Ideal for residential and light commercial panels, the 2460SGNM is well-suited for basement or utility room projects, small offices, and retrofit upgrades where space is limited. Its compact footprint and 60 A capacity support modest service upgrades, while 120/240 V single-phase operation matches typical branch circuit needs in these environments.
The unit carries UL Listed certification, confirming compliance with recognized safety standards. It utilizes a NEMA 1 enclosure appropriate for indoor use, and it supports a robust 10 kAIC interrupt rating for reliable fault protection. These certifications help streamline code-compliant installations and inspector acceptance for low to mid-range load centers.
Key installation advantages include the GB4NM ground bar included with the unit, which reduces wiring errors and installation time. The aluminum bus keeps weight down for easier handling, while surface mounting simplifies retrofits into existing walls. Maintenance is minimal, with long-term reliability supported by UL Listing, a 10-year warranty, and a standard NEMA 1 indoor enclosure.
