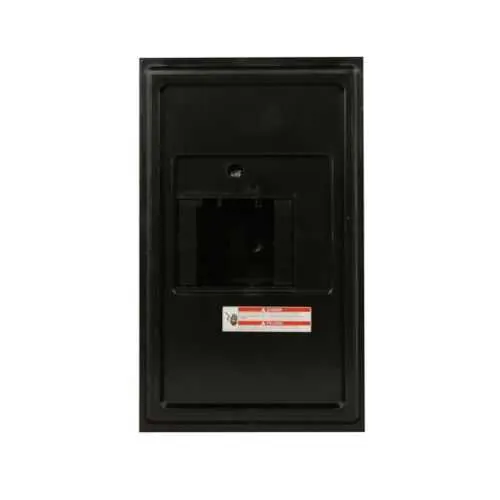

Eaton 2460SNM BR Loadcenter - UL Listed
Part Number: 2460SNM
Quick Summary
Eaton 2460SNM BR Loadcenter is a surface-mount main lug panel for 60 A, 4-circuit distribution in commercial and residential settings. Installers often struggle to find compact, code-compliant enclosures that fit constrained spaces while accommodating 3-wire, 120/240 V wiring. UL Listed certification supports safety compliance, and the 10-year warranty underscores long-term reliability. With aluminum bus, surface mounting, and a NEMA 1 enclosure, this unit delivers durable infrastructure for new builds or retrofit projects. Designed to work with BR series breakers, it streamlines sourcing and installation for spec-driven projects.
Product Information
Extended Description
2460SNM Eaton: Eaton BR main lug loadcenter,60 A,Aluminum,NEMA 1,Surface,4 Circuits,2 Spaces,Three-wire,Single-phase,120/240 V,#14-2 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
2460SNM
UPC
786676369763
Product Length/Depth
8.75 in
Product Height
4.75 in
Product Width
3.25 in
Product Weight
0.95 lb
Warranty
10 year
Certifications
UL Listed
Type
Main lug loadcenter
Amperage Rating
60 A
Bus material
Aluminum
Mounting
Surface
Number of circuits
4
Number of spaces
2
Phase
Single-phase
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Enclosure
NEMA 1
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - 2460SNM
Eaton type BR circuit breaker limited warranty June 2024
60 A main lug capacity with four circuits and two spaces enables a compact distribution design while minimizing the number of panels on a project. This configuration is ideal for apartments or small offices where footprint matters and ease of expansion is a priority. Surface mounting and a NEMA 1 enclosure accelerate indoor installation and protect sensitive components from dust and debris, supporting reliable operation in utility rooms and closets. Aluminum bus, compatible with #14-2 AWG Cu/Al conductors, provides corrosion resistance and efficient current transfer for everyday loads, reducing long-term maintenance needs. The unit’s 120/240 V single-phase rating and 10 kAIC interrupt capacity deliver solid fault tolerance for typical residential and light commercial circuits. UL Listed certification reinforces safety compliance, while a 10-year warranty lowers lifecycle risk and total ownership cost. BR breaker compatibility simplifies inventory and procurement, delivering a streamlined, code-compliant solution for contractors and specifiers. The enclosure’s compact dimensions—8.75 in long, 4.75 in high, and 3.25 in wide—coupled with a light 0.95 lb weight, enable quick handling and installation in constrained spaces without compromising performance.
Get a Quick Quote for a Eaton 2460SNM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 2460SNM?
Enquire Now
FAQs
This loadcenter is designed for surface mounting in indoor environments, with compact dimensions of 8.75 in L x 4.75 in H x 3.25 in W and a lightweight 0.95 lb. The two-space, four-circuit layout supports a minimal footprint while still delivering essential branch circuit capacity. Its compatibility with BR breakers simplifies wiring paths and reduces the number of components needed on retrofit projects, making it a practical choice for tight utility rooms and hall closets.
The unit provides a 60 A amperage rating, 120/240 V single-phase operation, and supports four circuits across two spaces. It uses an aluminum bus for durable current paths and a 10 kAIC interrupt rating to handle typical fault conditions. Wire options include #14-2 AWG Cu/Al, enabling versatile, code-compliant wiring for residential and light commercial loads.
Yes. Its NEMA 1 enclosure is designed for indoor use, providing dust protection suitable for basements, garages, and service closets. UL Listed certification confirms safety compliance, and the 60 A main lug configuration with BR breaker compatibility supports common residential and light commercial distribution needs while keeping installation straightforward and code-compliant.
Rely on the UL Listed certification included with this Eaton loadcenter to demonstrate compliance with safety standards. The 60 A, 120/240 V single-phase rating and the 10 kAIC interrupt capacity align with typical electrical codes for residential and light commercial panels. Additionally, the warranty provides long-term assurance of performance and service life.
The combination of a UL Listed, BR-compatible main lug loadcenter with a 10-year warranty lowers lifecycle risk and reduces rework during upgrades. Its lightweight, compact footprint simplifies handling and installation, potentially reducing labor costs. Durable aluminum bus and standard wiring with #14-2 Cu/Al support predictable maintenance and replacement cycles, delivering better total cost of ownership for ongoing projects.
