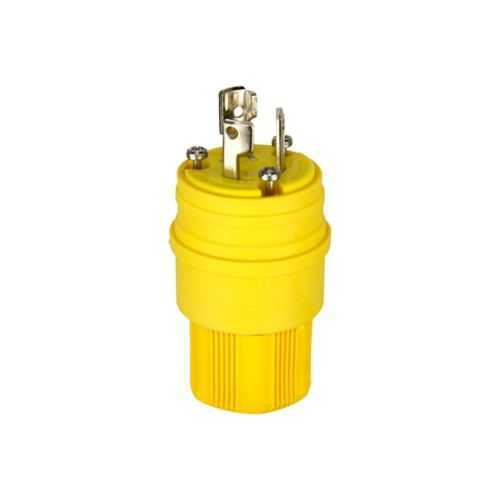

Eaton 24W47 Watertight Locking Plug - L5-15, 125V, cULus
Part Number: 24W47
Quick Summary
Eaton Arrow Hart watertight locking plug delivers a secure, weatherproof connection for industrial power cords in rugged environments. Maintenance teams often struggle with moisture intrusion, corrosion, and miswiring that lead to unplanned downtime. This device is cULus Listed, designed for back-wired installations in complex environments, with a NEMA L5-15 configuration and a 125 V rating. By combining robust Santoprene thermoplastic elastomeric material with a proven watertight seal, it reduces maintenance costs and improves safety. Using this locking plug in industrial settings also supports quick, reliable installations and visible color coding for safer, faster wiring in tight spaces.
Product Information
Extended Description
24W47 Eaton: Eaton Arrow Hart watertight locking plug, Complex environment, #18-10 AWG, 15A, Industrial, 125V, Back, Yellow, Watertight, L5-15, Two-pole, Three-wire, grounding, Santoprene thermoplastic elastomeric, 0.3 to 0.65 in
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
24W47
UPC
040893631035
Product Length/Depth
9.25 in
Product Height
1.75 in
Product Width
5 in
Product Weight
0.66 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L5-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
14 lbf-inch
Voltage rating
125 V
Environmental resistance
Watertight
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Application
Industrial
Cord diameter
0.3-0.65 in
Material
Santoprene thermoplastic elastomeric
Special features
Watertight locking plug
Type
Complex environment
Watertight locking design provides reliable moisture protection, reducing corrosion and downtime in harsh environments. Business impact: increased equipment uptime and safer electrical terminations in wet or dusty areas. Application: ideal for industrial power delivery where seals and secure connections matter, such as manufacturing floors and outdoor equipment. Cord compatibility with #18-10 AWG wires enables common field terminations; benefit: flexible sourcing and reduced inventory complexity. This plug uses back wiring for clean terminations, saving installation time and limiting wire strain; application: retrofit and new builds where fast, durable connections are critical. Santoprene thermoplastic elastomeric material offers chemical and temperature resistance; impact: extended service life and reduced maintenance costs in high-temperature or chemical exposure zones. The NEMA L5-15 configuration (two-pole plus grounding) and 125 V rating ensure compatible loads up to 15 A, improving electrical safety and compliance. Torque rating of 14 lbf-in ensures proper engagement without over-tightening; application: consistent, repeatable installations across crews. The bright yellow color improves visibility during maintenance checks and alignments; impact: reduced miswiring and faster inspections in busy environments. Certifications include cULus Listed, supporting regulatory compliance for industrial equipment. Compatibility with industrial-grade power cords and back-wiring methods makes it a practical upgrade in complex environments.
Get a Quick Quote for a Eaton 24W47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 24W47?
Enquire Now
FAQs
The 24W47 supports a back-wired configuration for #18-10 AWG conductors, with a two-pole plus grounding arrangement (L5-15), rated for 125V and 15A. This combination ensures a secure cord termination while accommodating typical industrial cord sizes and standard field wiring practices.
Install with back wiring for clean terminations and verify the cord diameter falls within 0.3 to 0.65 inches. Tighten to the specified torque of 14 lbf-in to ensure a watertight seal without over-tightening. Use the yellow housing for quick visibility during routine maintenance.
The 24W47 is cULus Listed, providing compliance with recognized safety standards for industrial electrical devices. This designation helps ensure safe operation in commercial and manufacturing environments and simplifies regulatory approvals during audits and inspections.
Its Santoprene elastomeric body and watertight seal help resist moisture and environmental contaminants, reducing corrosion and maintenance needs. Expect longer service life in wet or dusty environments, provided the connection is properly torqued, inspected periodically, and cords remain within the allowable size range.
Industrial power delivery in complex or harsh environments—such as manufacturing floors, outdoor equipment, and back-up power setups—benefit from the 24W47. Its L5-15 configuration, 125V rating, and watertight construction support reliable connections for sensitive equipment while helping minimize downtime and maintenance costs.
