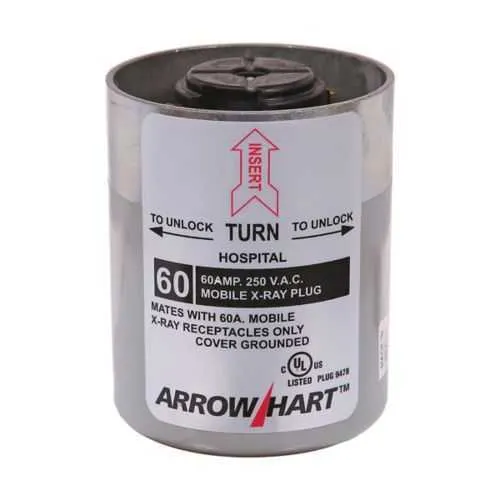

Eaton 25625 Locking Connector Mobile X-Ray - cULus Listed
Part Number: 25625
Quick Summary
The Eaton Arrow Hart locking connector powers Mobile X‑Ray equipment with a secure, hospital‑grade connection. In fast‑paced clinical settings, engineers worry about accidental disconnections and compatibility with 60A, 250V power rails. The 25625 carries a cULus Listed certification, durable glass‑filled nylon housing, and a dead‑front, back‑wired design that supports safe, clean installations. This combination delivers reliable performance for imaging workflows while aligning with hospital procurement priorities and long‑term maintenance economics.
Product Information
Extended Description
25625 Eaton: Eaton Arrow Hart locking connector, Mobile X-Ray, #12-4 AWG, 60A, Hospital, 250V, Back, Gray, Dead front, Non-NEMA, Two-pole, Three-wire, grounding, Glass-filled nylon, 0.75 to 1.25 in
Product Name
Eaton Arrow Hart locking connector
Catalog Number
25625
UPC
040893122250
Product Length/Depth
6.75 in
Product Height
3.91 in
Product Width
4.38 in
Product Weight
2.12 lb
Certifications
cULus Listed
Special features
Locking connector
Type
Mobile X-Ray
Amperage Rating
60A
Voltage rating
250 V
Application
Hospital
Wiring method
Back
Number of wires
3 Grounding
Number Of Poles
Two-pole
Color
Gray
Cord diameter
0.75-1.25 in
Material
Glass filled nylon
Allowable wire size
#12-4 AWG
NEMA configuration
Non-NEMA
Design type
Dead front
Locking mechanism reduces disconnect risk during patient imaging, boosting uptime and safety in busy hospital environments. The 60A at 250V rating accommodates typical imaging loads, while the two‑pole, three‑wire grounding configuration ensures proper earth protection and fault handling. Back wiring simplifies field terminations in crowded panels, enabling faster service and less downtime. Glass‑filled nylon housing delivers durability with lightweight handling, resisting cleaning chemicals and wear in daily use. The dead‑front design hides live conductors for operator safety during plug‑in operations. Gray non‑NEMA configuration offers installation flexibility to fit diverse medical interfaces. With dimensions of 6.75 in L × 3.91 in H × 4.38 in W, it fits compact back panels and carts without sacrificing performance. The cULus Listed certification provides a trusted safety benchmark for healthcare procurement, reinforcing compliance and risk management. This connector is designed for Mobile X‑Ray workflows, delivering reliable power connections that support equipment uptime and safer patient care.
Get a Quick Quote for a Eaton 25625
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 25625?
Enquire Now
FAQs
The 25625 uses back-wiring for #12-4 AWG conductors and is configured as a two-pole, three-wire with grounding. This enables a secure rear termination, reduces front-panel clutter, and simplifies service in crowded hospital back boxes. It is designed for reliable back-wired connections in Mobile X-Ray setups.
Yes. The 25625 is a Mobile X-Ray‑rated locking connector designed for hospital environments, delivering 60A at 250V. It features a locking mechanism to prevent unplugging, a gray housing, and cULus Listing for healthcare safety. Its non‑NEMA configuration offers installation flexibility for imaging carts and bedside units.
The Eaton 25625 is cULus Listed, signaling compliance with U.S. and Canadian safety standards for electrical devices used in healthcare settings. This certification supports procurement decisions in regulated environments and aligns with hospital safety programs and commissioning activities.
Yes. The 25625 accepts #12-4 AWG conductors via back-wiring, with a 60A, 250V rating. It accommodates a cord diameter range of 0.75–1.25 inches and uses grounding in a three-wire arrangement. Ensure proper panel clearance and follow standard hospital wiring practices for a secure, reliable installation.
Plan for hospital-grade installations that leverage the locking feature to prevent accidental unplugging during imaging. Verify grounding integrity and ensure the non-NEMA configuration matches your equipment interface. Take advantage of the back-wired design for easier routing in back panels, and rely on the cULus Listing as a regulatory baseline to support procurement and compliance goals.
