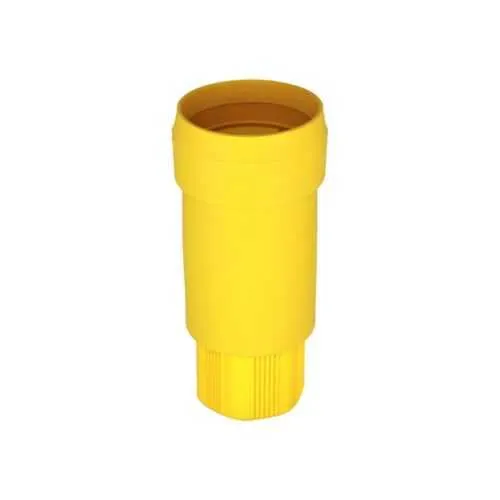

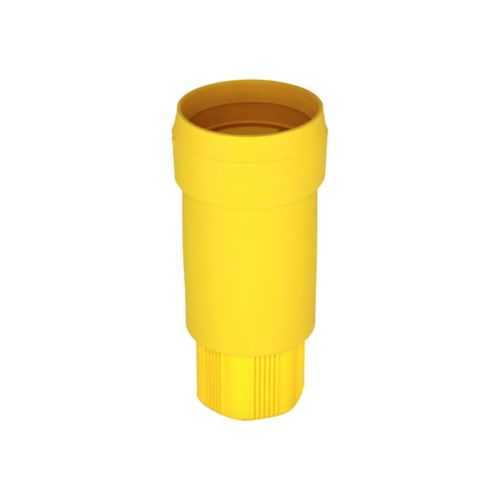

Eaton Arrow Hart watertight locking connector 25W47 - IP67
Part Number: 25W47
Quick Summary
The Eaton Arrow Hart watertight locking connector enables reliable, field-ready power connections for rugged industrial equipment. Moisture ingress, vibration, and wiring mistakes often cause downtime; this design counters those challenges with a robust seal and a secure locking mechanism. Certified for IP67 protection and cULus listing, plus NEMA 6P, 4X, and 4 configurations, it performs in outdoor, washdown, and harsh environments. Engineered for back wiring on #18-10 AWG conductors at 125 V and 15 A, it supports fast, code-compliant installations and long service life. For procurement teams, the 25W47 combines proven reliability with consistent performance across equipment lines, reducing maintenance cycles and simplifying sourcing across facilities.
Product Information
Extended Description
25W47 Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 15A, Industrial, 125V, Back wiring, Yellow, Watertight, L5-15, Two-pole, Three-wire, grounding, Santoprene thermoplastic elastomeric, 0.3 to 0.65 in
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
25W47
UPC
040893631028
Product Length/Depth
9 in
Product Height
1.75 in
Product Width
5 in
Product Weight
0.17 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L5-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
14 lbf-inch
Voltage rating
125 V
Environmental resistance
IP67 NEMA 6P NEMA 4X NEMA 6 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.3-0.65 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
IP67 protection and NEMA 6P/4X/4 ratings deliver rugged sealing that minimizes water and dust ingress, directly reducing downtime and warranty visits in outdoor and washdown environments. The business impact is clearer uptime, safer operations, and lower maintenance costs, making it ideal for outdoor enclosures, pumps, and motor controllers in industrial facilities. This model uses a L5-15, two-pole configuration with grounding at 125 V and 15 A, ensuring compatibility with standard industrial outlets and preventing misconnection, which translates to faster installation and fewer field errors. Back wiring supports quick terminations with #18-10 AWG wire, tightened to 14 lbf-in, delivering reliable contacts and reducing rework in maintenance cycles. The nylon body with a Santoprene elastomeric seal provides chemical and abrasion resistance, improving long-term durability in demanding environments. Nickel-plated brass contacts improve conductivity and corrosion resistance, supporting maintenance intervals and ROI. All-court certifications—cULus listing and IP/NEMA ratings—facilitate compliance audits and vendor qualification. The device’s extra heavy-duty, industrial-grade design ensures compatibility across various Eaton locking devices, enabling scalable, reliable installations across facility networks.
