Eaton 25W49 Watertight locking connector - cULus Listed
Part Number: 25W49
Quick Summary
Eaton Arrow Hart watertight locking connector is a rugged, secure power connection for industrial equipment and outdoor installations. It delivers reliable 15A at 250V in harsh environments, protecting against moisture and dust. For engineers and procurement teams, moisture ingress and field wiring complexity are common pain points; this connector mitigates both with a robust IP67/NEMA-rated design and back-wiring capability. Built to endure washdowns and vibration, it combines nickel-plated brass contacts with Santoprene elastomer in a yellow housing for high visibility. The result is safer, faster installations and fewer re-entries for maintenance, translating to reduced downtime and improved system availability.
Product Information
Extended Description

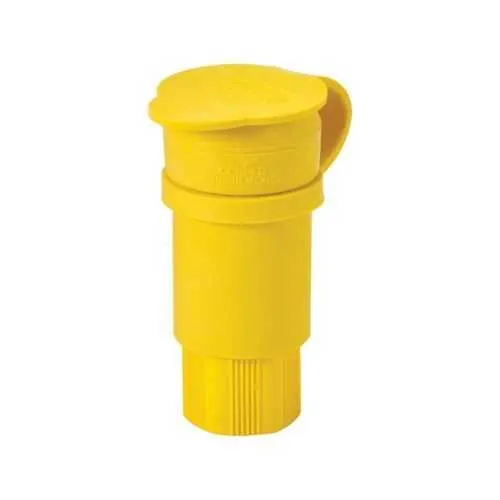

25W49 Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 15A, Industrial, 250V, Back wiring, Yellow, Watertight, L6-15, Two-pole, Three-wire, grounding, Santoprene thermoplastic elastomeric, 0.3 to 0.65 in
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
25W49
UPC
040893631042
Product Length/Depth
1.78 in
Product Height
5.89 in
Product Width
3.55 in
Product Weight
0.35 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L6-15
Number Of Poles
Two-pole
Number of wires
3 Grounding
Torque rating
14 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 4 NEMA 6P NEMA 4X NEMA 6 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.3-0.65 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: Watertight locking design. Business Impact: Prevents moisture ingress and corrosion in washdown and outdoor environments, reducing unplanned downtime. Application: Outdoor equipment and process lines exposed to humidity. Feature: NEMA and IP ratings. Business Impact: Ensures regulatory compliance and long-term reliability in harsh facilities, lowering warranty costs. Application: Food processing floors, chemical plants, outdoor substations. Feature: Electrical ratings and configuration. Business Impact: Supports standard industrial loads with 15A at 250V using L6-15, enabling compatibility with common motors and tools. Application: Motors, feeders, and power distribution in industrial plants. Feature: Back wiring method. Business Impact: Speeds field termination, improves install accuracy, and reduces labor time. Application: Quick reconfigurations during maintenance. Feature: Materials and durability. Business Impact: Nylon body, Santoprene elastomer, and nickel-plated brass contacts offer chemical resistance and vibration tolerance, extending service life. Application: Environments with detergents, oils, and abrasion. Feature: Visual and safety features. Business Impact: High-visibility yellow housing aids quick identification and safer connections in busy industrial spaces. Application: Assembly lines and maintenance bays.
Get a Quick Quote for a Eaton 25W49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 25W49?
Enquire Now
FAQs
The 25W49 uses back wiring with a torque rating of 14 lbf-in, compatible with #18-10 AWG conductors. Field wiring is simplified by terminating wires from the rear, ensuring a secure connection while minimizing exposure to live components. This helps maintain consistent contact pressure and reduces installation time for industrial panels and equipment.
Yes. The connector is rated IP67 and meets NEMA configurations including 4, 6P, 4X, and 6, making it ideal for outdoors, washdown areas, and harsh facilities. These ratings protect against dust, water ingress, and corrosion, improving reliability for outdoor motors, pumps, and other equipment exposed to moisture.
The 25W49 provides 15A at 250V with a two-pole, three-wire configuration and grounding (L6-15). It supports #18-10 AWG wires and uses a locking connection to prevent accidental disconnection, ensuring steady power delivery to motors, controls, and machinery in manufacturing and processing environments.
This connector is cULus Listed, indicating compliance with recognized safety standards in North America. Its IP67 and multiple NEMA ratings demonstrate suitability for harsh, wet, and dusty environments, helping you meet regulatory and internal safety requirements for equipment in industrial facilities.
By delivering a robust, moisture-resistant connection with easy back wiring, the 25W49 reduces field rework and downtime, shortening maintenance cycles. Its durability under washdowns and vibration minimizes part replacements and service intervals, contributing to lower lifecycle costs and improved system uptime for critical industrial applications.
