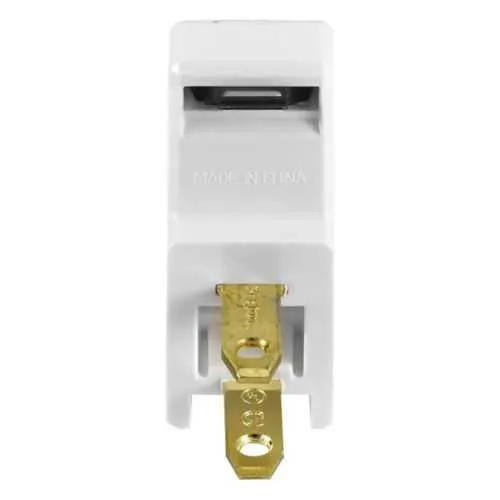

Eaton 2600W-BU Straight Blade Plug - cRUus 6221 02 Certified
Part Number: 2600W-BU
Quick Summary
The Eaton 2600W-BU straight blade plug is a reliable residential connection device for corded tools and small appliances. When field wiring is rushed, non-grounding and non-polarized designs can lead to miswiring and safety issues. It carries cRUus approval and Federal Specification Classification 6221 02, reinforcing regulatory compliance in home installations. For installers, the back-wire option supports 18-10 AWG conductors, while the thermoplastic body simplifies handling and heat resistance. This combination delivers consistent performance, reduces field rework, and supports efficient stocking for residential wiring projects, aligning with standard-grade receptacles and straightforward, compliant wiring devices. Ideal for new builds and retrofit jobs where reliability and quick, safe terminations matter.
Product Information
Extended Description
2600W-BU Eaton: Eaton straight blade plug , #18-10 AWG, 15A, Residential, 125V, Back wire, White, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Insulation piercing, 18-2 through 16-2 SPT-1 or HPN cord, Thermoplastic, Bulk
Product Name
Eaton straight blade plug
Catalog Number
2600W-BU
UPC
032664539091
Product Length/Depth
1.775 in
Product Height
1.558 in
Product Width
0.74 in
Product Weight
0.03 lb
Certifications
cRUus Federal Specification Classification 6221 02
Device type
Plug
Special features
Non-groundingNon-polarized
Type
Academy Super plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Non-grounding Non-polarized
Application
Residential
Device grade
Standard grade
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Right angle
Cord range
18-2 through 16-2 SPT-1 or HPN cord
Material
Thermoplastic
Packaging type
Bulk
Color
White
Connection type
Insulation piercing
Allowable wire size
#18-10 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Two-pole, two-wire, non grounding
Residential Buyers Guide B-55
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 2600W-BU
Feature: Back-wire termination supports fast, reliable cord terminations. Business Impact: Reduces field wiring time by minimizing screw-terminal adjustments, improving on-site efficiency and throughput. Application: Ideal for 18-2 through 16-2 SPT-1 or HPN cord connections in residential wiring projects. Feature: Non-grounding, non-polarized design simplifies compatibility with legacy outlets while meeting basic safety standards. Business Impact: Lowers inventory complexity and accelerates installations in older homes. Application: Suitable for standard-grade receptacle replacements in single- and two-wire circuits. Feature: 15A, 125V rating with brass contact material. Business Impact: Delivers dependable current handling and corrosion resistance, reducing nuisance trips and maintenance. Application: Residential appliances and light-duty tools. Feature: Thermoplastic body and white color for easy visibility and durable performance. Business Impact: Improves heat resistance and handling while providing clear, code-compliant aesthetics. Application: Bulk packaging for contractors and distributors. Feature: Cord range compatibility (18-2 through 16-2 SPT-1 or HPN). Business Impact: Expands cord compatibility, lowering the need for adapters. Application: New builds and retrofits requiring flexible cord terminations.
Get a Quick Quote for a Eaton 2600W-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 2600W-BU?
Enquire Now
FAQs
To install, strip conductors to suit #18-10 AWG, insert into the back-wire clamps, and tighten to 14 lbf-in of torque on brass contacts. Verify two-wire, non-grounding operation and that the NEMA 1-15P receptacle configuration matches your corded device. This method reduces field termination time and minimizes stray conductors.
Yes. The 2600W-BU is rated for 15A and 125V, making it compatible with standard US/Canadian residential circuits. Its non-grounding, non-polarized design is intended for specific legacy wiring scenarios where a simple two-wire connection is acceptable, while maintaining regulatory compliance.
This plug supports cord ranges 18-2 through 16-2 SPT-1 or HPN. It accepts conductors up to #18-10 AWG with insulation piercing or back-wire terminations, depending on the installation. This broad compatibility reduces the need for adapters and simplifies stocking for residential wiring jobs.
The 2600W-BU carries cRUus certification and meets Federal Specification Classification 6221 02. These approvals confirm compliance for residential wiring devices in the US and Canada, supporting safe, code-aligned installations and reducing project risk in home wiring projects.
Common uses include replacing worn outlets in residential settings, retrofitting legacy fixtures where non-grounding, two-wire connections are acceptable, and servicing corded tools and small appliances on 125V circuits. Its back-wire option and thermoplastic body enable quick terminations, reliable performance, and straightforward stock management for contractors.
