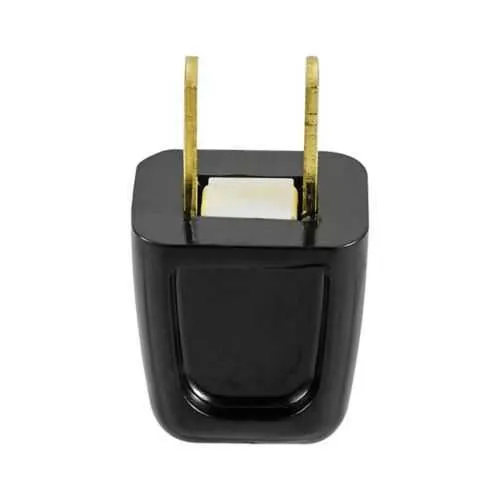

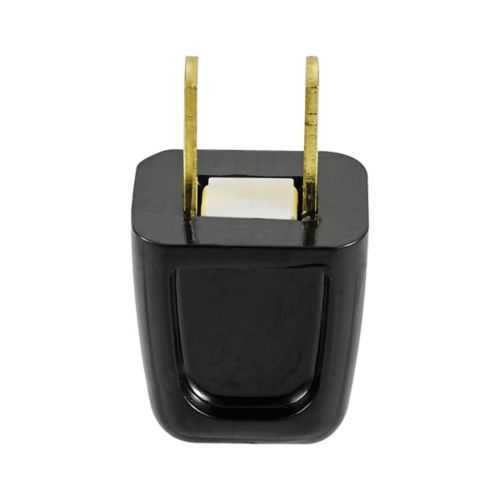

Eaton 2601BK-BU Straight Blade Plug - cRUus 6221 02
Part Number: 2601BK-BU
Quick Summary
The Eaton straight blade plug is designed for quick, secure two-wire terminations in residential wiring devices. Installers often confront slow, error-prone back-wire connections and insulation-piercing challenges that increase field labor and cost. This model carries cRUus certification under Federal Specification 6221 02, offering standard-grade reliability with a thermoplastic body for durable everyday use. Designed for efficient residential wiring, it supports 18-10 AWG conductors at 125V, enabling rapid, consistent terminations and simpler stocking for contractors and electrical distributors alike.
Product Information
Extended Description
2601BK-BU Eaton: Eaton straight blade plug , #18-10 AWG, 10A, Residential, 125V, Back wire, Black, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Insulation piercing, 18-2 SPT-1 cord, Thermoplastic, Bulk
Product Name
Eaton straight blade plug
Catalog Number
2601BK-BU
UPC
032664539152
Product Length/Depth
1 in
Product Height
1.78 in
Product Width
0.782 in
Product Weight
0.028 lb
Certifications
cRUus Federal Specification Classification 6221 02
Device type
Plug
Special features
Non-groundingNon-polarizedEasy install
Type
Easy Install Academy plug
Amperage Rating
10 A
Voltage rating
125V
Contact material
Brass
Features
Non-grounding Non-polarized Easy install
Application
Residential
Device grade
Standard grade
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Right angle
Cord range
18-2 SPT-1 cord
Material
Thermoplastic
Packaging type
Bulk
Color
Black
Connection type
Insulation piercing
Allowable wire size
#18-10 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Two-pole, two-wire, non grounding
Residential Buyers Guide B-55
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 2601BK-BU
Feature → Business Impact → Application: The back-wire insulation-piercing connection reduces stripping steps and speeds up installation, delivering measurable time savings on busy residential builds and service calls. This translates to lower labor costs and improved project timelines for electricians working on single-family homes or small commercial setups. The two-pole, non-grounding configuration and NEMA 1-15P compatibility ensure straightforward compatibility with common residential outlets, minimizing mis-wiring and callbacks. The brass contact material provides reliable conductivity and corrosion resistance, supporting long-term performance in everyday use. The thermoplastic face/body resists impact and heat, reducing damage during transit and installation, which lowers replacement rates and warranty costs. With 14 lbf-in torque rating, secure connections are achieved consistently, aiding compliance with local codes and reducing call-backs. Bulk packaging supports efficient stocking for distributors and contractor fleets, speeding procurement and project readiness. This configuration is especially suitable for 18-10 AWG conductors and 125V circuits in residential power distribution.
