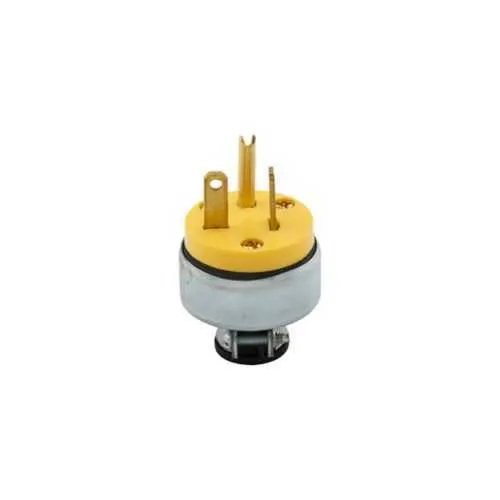

Eaton straight blade plug 2809-BOX - RoHS Compliant
Part Number: 2809-BOX
Quick Summary
Eaton straight blade plug delivers a rugged, back-wire connection for commercial electrical installations. This design addresses common field termination challenges where speed, reliability, and safety matter most. The unit carries RoHS compliance and cULus listings, with a 5-20P NEMA configuration suited to 120V circuits in commercial environments. Featuring armored vinyl construction, brass contact material, and screw termination, it stands up to demanding use while maintaining consistent performance. Packaged in an ED Box for easy handling, it supports fast installation and long service life, helping facilities reduce downtime and maintenance costs while staying code-compliant.
Product Information
Extended Description
2809-BOX Eaton: Eaton straight blade plug , #18-12 AWG, 20A, Commercial, 125V, Back wire, Yellow, Brass, Armored vinyl, 5-20P, Two-pole, three-wire, grounding, Screw, 0.25-0.63", Vinyl, ED Box
Product Name
Eaton straight blade plug
Catalog Number
2809-BOX
UPC
032664325205
Product Length/Depth
3.12 in
Product Height
3.34 in
Product Width
1.25 in
Product Weight
0.085 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Plug
Special features
Armored
Type
Armored plug
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Armored
Application
Commercial
Device grade
Commercial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.25-0.63"
Material
Vinyl
Packaging type
ED Box
Color
Yellow
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-20P
Torque rating
15 lbf-inch
Design type
Straight blade
Face/body material
Armored vinyl
Receptacle type
Two-pole, three-wire, grounding
Residential Buyers Guide B-49
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 2809-BOX
Feature: Armored vinyl body provides rugged protection against abrasion and wear. Business Impact: Extends product life in high-traffic, industrial settings and reduces replacement frequency and maintenance costs. Application: Ideal for commercial wiring where cords and receptacles endure frequent handling. Feature: Back wire wiring method enables quick terminations with fewer crimped connections. Business Impact: Speeds up installation, lowers labor time, and minimizes risk of insulation damage during wire preparation. Application: Common in new-builds and retrofit projects in busy facilities. Feature: 20A at 125V rating supports typical commercial loads with headroom for portable equipment. Business Impact: Enables standard power distribution without oversizing infrastructure, improving system efficiency and safety. Application: Office, retail, and light-industrial environments. Feature: NEMA 5-20P configuration ensures compatible, secure plug connections on 120V circuits. Business Impact: Reduces mis-wiring risk and ensures dependable, code-compliant plug-and-receptacle pairing. Application: Construction sites and service panels with standard 20A circuits. Feature: Brass contact material and 15 in-lbf torque rating for secure, low-resistance terminations. Business Impact: Improves conductivity and long-term reliability while resisting loosening under vibration. Application: Systems subject to frequent plug-in and unplug cycles. Feature: 3-wire, grounding receptacle (Two-pole, three-wire) supports proper grounding and safety. Business Impact: Enhances safety margins and meets electrical codes for grounded appliances. Application: Commercial outlets and equipment connections. Feature: ED Box packaging and color-coding (Yellow) aid identification and on-site handling. Business Impact: Speeds logistics, reduces misidentification, and supports organized field installations. Application: Warehouse and facility maintenance.
Get a Quick Quote for a Eaton 2809-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 2809-BOX?
Enquire Now
FAQs
To install the 2809-BOX, strip the conductors to the recommended length, insert them into the back-wire terminals, and tighten the screws to the specified torque. The unit uses a 15 in-lbf torque rating, provides a secure brass contact path, and supports 3 wires in a NEMA 5-20P configuration. This method minimizes insulation damage and speeds up field terminations.
This armored straight blade plug is designed for commercial circuits at 125V and 20A, with a NEMA 5-20P receptacle configuration. Its armored vinyl body and back-wire design make it ideal for high-traffic environments, office spaces, and retail installations where quick, reliable terminations and durable construction are essential.
Yes. The 2809-BOX is RoHS compliant and cULus listed NOM, meeting regulatory requirements for many commercial environments. These certifications support compliance in regulated projects and simplify procurement for code-driven installations.
The plug measures approximately 3.12 in in length, 3.34 in in height, and 1.25 in in width, with a weight around 0.085 lb. It accepts #18-12 AWG conductors via back-wire, supports 3 wires, and uses a 15 in-lbf torque for secure terminations, compatible with 5-20P configurations.
Consider using the ED Box packaging to simplify transport and installation. Ensure proper back-wire connections, verify wire size compatibility (#18-12 AWG), observe the 15 in-lbf torque rating for secure mounting, and confirm RoHS and cULus compliance for the site. The armored vinyl design aids durability in environments with frequent handling and vibration.
