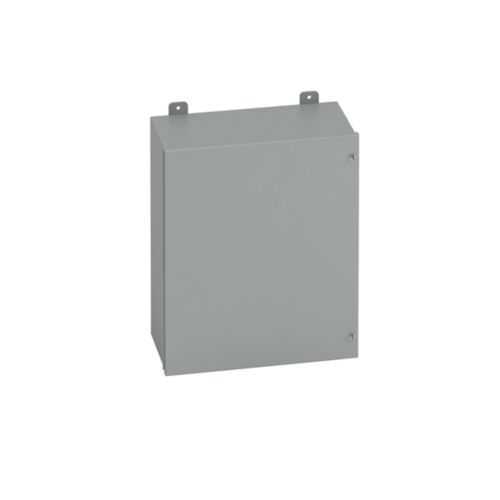

Eaton 30207-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 30207-12CHSC
Quick Summary
Eaton 30207-12CHSC JIC panel enclosure is a rugged wall-mount enclosure designed to protect electrical components in industrial control panels. In harsh environments, corrosion, dust, and sealing gaps can compromise safety and uptime. UL 508A and CSA C22.2 certifications, along with a NEMA 12 enclosure rating, support code compliance and reliable protection for critical equipment. This solution also aligns with the Eaton B-Line series for compatible accessories, delivering scalable protection and predictable maintenance costs for modern manufacturing and process facilities.
Product Information
Extended Description
30207-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 30" height, 7" length, 20" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
30207-12CHSC
UPC
782051770308
Product Length/Depth
7 in
Product Height
30 in
Product Width
20 in
Product Weight
60.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature heavy-duty carbon steel construction with 14 gauge walls and ANSI 61 gray finish. Business impact: delivers robust mechanical protection against impacts and environmental hazards, reducing downtime and replacement costs. Application: ideal for wall-mounted control panels in manufacturing, water treatment, and packaging facilities. Feature hinged, cont. pianohinge door with external mounting feet. Business impact: enables smoother service access and faster maintenance, cutting outage times. Application: suitable for tight installation spaces where frequent access is required. Feature external mounting feet and wall mounting method. Business impact: flexible mounting options simplify retrofits and align with existing plant layouts. Application: retrofit projects and multi-panel installations. Feature painted carbon steel with durable finish. Business impact: extends service life and simplifies inspection for compliance audits. Application: standardized enclosure color and finish across plant floors. Feature special features cont. pianohinge, whiteback, printpocket, plated screws. Business impact: enhances durability, documentation, and field service readiness. Application: field maintenance and assembly line control cabinets. Feature NEMA 12, UL 508A, CSA C22.2 certifications. Business impact: ensures regulatory compliance and reliable environmental protection. Application: industrial control panels operating in dusty or lubricated environments.
Get a Quick Quote for a Eaton 30207-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 30207-12CHSC?
Enquire Now
FAQs
The 30207-12CHSC is designed for wall mounting with external mounting feet, allowing straightforward retrofits and alignment in existing installations. Its hinged door and cont. pianohinge simplify service access, while compatible E‑Line/B‑Line accessories support multi-panel configurations and future expansions without requiring substantial rework.
This enclosure carries UL 508A and CSA C22.2 certifications and is rated NEMA 12, providing protection against dust and light moisture. These standards ensure electrical safety, code compliance, and reliability for industrial control panels in manufacturing and processing environments.
Yes. The NEMA 12 rating, coupled with an oil-resistant gasket and a durable carbon steel body, provides dust and light oil exposure protection suitable for many industrial settings. Proper sealing and maintenance extend enclosure life, reduce contamination risk, and support ongoing uptime in challenging environments.
The 14-gauge carbon steel construction delivers robust mechanical protection and long-term durability while keeping manufacturing and material costs manageable. Weight is approximately 60.7 lb, aiding sturdy mounting without excessive load, and the ANSI 61 gray finish helps with corrosion resistance and plant-standard aesthetics.
This enclosure supports the Eaton B-Line ecosystem, including external mounting feet, print pockets, and plated screws, plus options like whiteback panels and continuous piano hinges. These features enable easy labeling, maintenance access, and scalable panel integration, reducing downtime and helping to future-proof control cabinets in evolving automation layouts.
