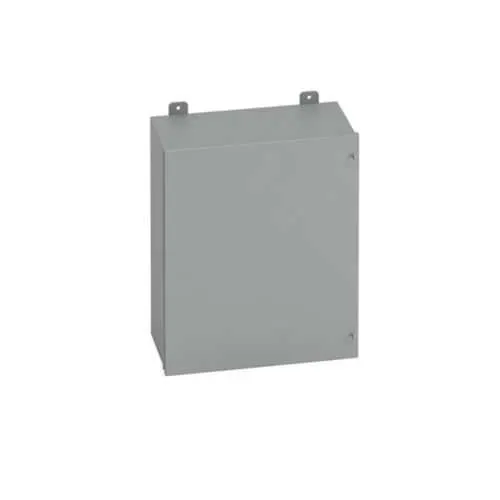

Eaton 30247-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 30247-12CHSC
Quick Summary
Eaton B-Line series JIC panel enclosure protects industrial electrical control panels with a rugged, wall-mounted design. It addresses common maintenance challenges by offering a wide access door and durable carbon steel construction that stand up to harsh plant environments. Key certifications including UL 508A, CSA C22.2, and a NEMA 12 rating underpin safety, reliability, and compliance in demanding facilities. This enclosure is well suited for manufacturing floors and process lines, providing clean layouts, predictable serviceability, and scalable control housing. By combining robust protection with straightforward installation, it supports uptime, reduces maintenance time, and enables enterprise-wide automation deployments.
Product Information
Extended Description
30247-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 30" height, 7" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
30247-12CHSC
UPC
782051770407
Product Length/Depth
7 in
Product Height
30 in
Product Width
24 in
Product Weight
70 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature: Dimensions and enclosure footprint—30 in height, 24 in width, 7 in depth, 70 lb weight. Business impact: clear space planning and compatibility with standard electrical components, reducing installation rework and enabling faster panel setup on new lines. Application: ideal for wall-mounted control panels in conveyors, mixers, and process equipment; supports quick integration with PLCs and terminal blocks. Feature: Material and finish—carbon steel, 14 gauge wall thickness, painted ANSI 61 gray finish. Business impact: enhanced durability and corrosion resistance in factory environments, lowering lifecycle costs and inspection frequency. Application: suitable for humid or oily production floors where enclosure longevity matters. Feature: Closure and mounting—hinged cover, continuous piano hinge, external mounting feet for wall installation. Business impact: faster service access and retrofit capability, minimizing downtime during maintenance windows. Application: frontline use in machine rooms and control cabinets with frequent interlocking or door servicing. Feature: Sealing and gasket—oil-resistant gasket. Business impact: protects sensitive electronics from oil splash and chemical exposure, improving reliability. Application: chemical processing or automotive assembly lines where fluids are common. Feature: Special features—pianohinge continuity, whiteback, print pocket, plated screws. Business impact: enhances readability, labeling, and long-term field maintenance with robust hardware. Application: data-rich control panels requiring clear documentation and durable components. Feature: Certifications and standards—UL 508A, CSA C22.2, NEMA 12. Business impact: guarantees compliance with electrical codes, enabling safer installations and easier audits. Application: multinational facilities seeking standardized enclosure solutions across plants.
Get a Quick Quote for a Eaton 30247-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 30247-12CHSC?
Enquire Now
FAQs
The 30247-12CHSC is designed for wall mounting with external mounting feet, supporting straightforward installation on typical plant surfaces. The 30 in x 24 in x 7 in footprint aligns with common control panel layouts, and the 14 gauge carbon steel body provides a stable backbone for PLCs, relays, and terminal strips. When planning, verify mounting hole spacing and door clearance to ensure unimpeded access during maintenance.
This enclosure carries UL 508A, CSA C22.2 listings and a NEMA 12 rating. UL 508A confirms suitability for industrial control panels, CSA C22.2 ensures regional safety compliance, and NEMA 12 provides protection against dust and liquid ingress. Together they support safe operation, easier regulatory audits, and broader deployment across facilities that require certified enclosures.
Yes. The model uses an oil-resistant gasket and a painted carbon steel body, offering improved resistance to oil splash and common chemicals found in manufacturing and automotive facilities. For highly aggressive environments, consider additional sealing or protective coatings as part of integration planning.
Ideal for factory automation panels, machine control enclosures, and process-line electrical housings. Its wall-mount design, hinged door, and external feet suit conveyors, mixers, pumps, and PLC-based control cabinets, enabling easy access for routine maintenance while maintaining a clean, compliant control space.
Durable carbon steel construction reduces corrosion-related downtime, while the continuous piano hinge and hinged cover speed up service access, lowering maintenance time. The standardized footprint and labeling options facilitate quicker upgrades or expansions, delivering a lower total cost of ownership and faster project ROI in ongoing automation initiatives.
