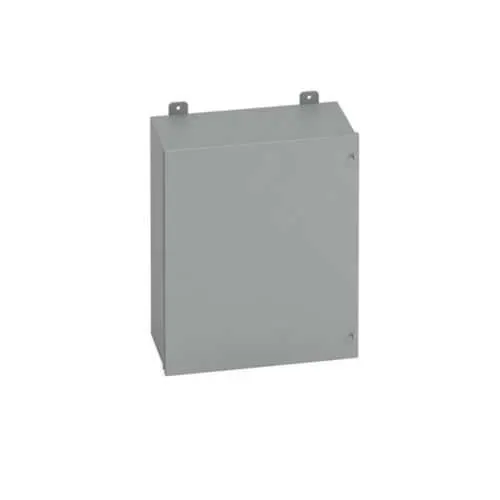

Eaton 30249-12CHSC JIC Panel Enclosure - NEMA 12
Part Number: 30249-12CHSC
Quick Summary
Eaton 30249-12CHSC JIC Panel Enclosure provides a durable housing for electrical control and distribution in industrial environments. Installers often struggle with maintaining reliable gasket seals, resisting oils and dust, and achieving flexible mounting in tight spaces. UL 508A, CSA C22.2, and NEMA 12 ratings underpin safety and regulatory compliance across harsh environments. This enclosure also supports wall mounting with external feet and offers a robust, serviceable solution for control panels, improving uptime and ease of maintenance while integrating seamlessly with the Eaton B-Line series and standard electrical components.
Product Information
Extended Description
30249-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 30" height, 9" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
30249-12CHSC
UPC
782051770803
Product Length/Depth
9 in
Product Height
30 in
Product Width
24 in
Product Weight
74.4 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with 14 gauge wall thickness. Business Impact: Delivers rugged protection against impact and corrosion while minimizing downtime and maintenance costs. Application: Ideal for factory floor control panels and distribution enclosures in demanding environments. Feature: Hinged cover with cont. pianohinge and external mounting feet. Business Impact: Enables quick access and flexible mounting options, reducing service time and installation labor. Application: Wall-mounted or freestanding panels in automation lines. Feature: Oil-resistant gasket and painted ANSI 61 gray finish. Business Impact: Improves seal integrity against oils and dust, extending enclosure life and reducing gasket replacement cycles. Application: Machinery bays with oil exposure and frequent washdowns. Feature: NEMA 12, UL 508A, CSA C22.2 certified. Business Impact: Ensures code compliance and safety, simplifying approvals and reducing certification complexity for system integrators. Application: Industrial control panels in manufacturing and processing facilities. Feature: Exterior mounting feet and dimensions 30 in H x 24 in W x 9 in D, weight 74.4 lb. Business Impact: Predictable footprint and mass properties enable faster selection, shipping, and installation planning. Application: Standardized replacement in B-Line compatible installations, enabling quick retrofit of legacy enclosures. Feature: Painted finish with standard color ANSI 61 gray. Business Impact: Consistent aesthetics and corrosion resistance across plant assets, supporting maintenance planning. Application: Multi-panel installations where uniform appearance and protection are required.
Get a Quick Quote for a Eaton 30249-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 30249-12CHSC?
Enquire Now
FAQs
This Eaton JIC panel enclosure is designed for wall mounting with external mounting feet, offering versatile installation options for tight industrial spaces. The 30 in H x 24 in W x 9 in D footprint fits common panel layouts and aligns with standard B-Line series mounting practices for quick retrofit or expansion.
Constructed from carbon steel with a 14 gauge wall, it features a hinged cover and oil-resistant gasket. It carries a NEMA 12 rating and is UL 508A and CSA C22.2 certified, ensuring reliable protection against dust, light splashing, and oil exposure while meeting industry safety standards.
Yes. The NEMA 12 rating and oil-resistant gasket provide effective protection in dusty and oily environments typical of manufacturing and processing facilities, helping maintain internal equipment reliability and reducing cleaning and maintenance frequency.
The enclosure complies with UL 508A for control panels, CSA C22.2 certification, and carries a NEMA 12 rating, streamlining compliance for industrial electrical installations and system integration projects.
Leverage the hinged cont. pianohinge for rapid service access, use external feet for stable wall mounting, and select the 14 gauge carbon steel body with the oil-resistant gasket for long service life. Regular gasket inspections and treating mounting surfaces for corrosion resistance can further reduce downtime and extend panel life.
