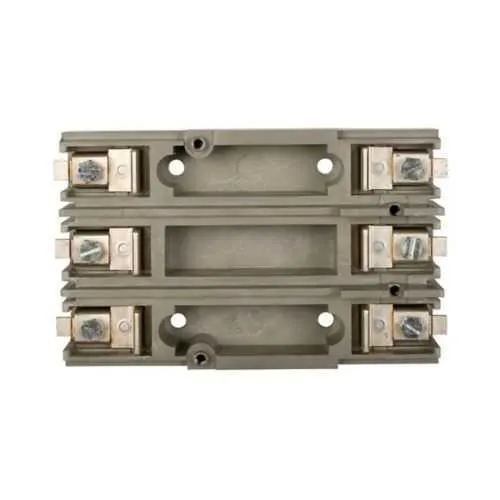

Eaton 315C364G03 Navy MCCB Switchboard - UL Listed
Part Number: 315C364G03
Quick Summary
Eaton Navy & Marine molded case circuit breaker switchboard mount protects naval electrical panels by housing three-pole MCCBs in compact switchboards. Engineers often struggle with retrofitting aging vessels where space is tight, panel layouts are nonstandard, and mounting compatibility is uncertain. UL Listed certification supports safety compliance for marine panels, while Naval class construction and front-connection mounting ensure rugged performance in harsh environments. Designed for AQB-A101/A103 and NQB-A101/A103 breakers, it streamlines installation, reduces commissioning time, and provides a reliable platform for critical shipboard power systems.
Product Information
Extended Description
315C364G03 Eaton: Eaton Navy and Marine molded case circuit breaker switchboard mount, AQB-A101, Three-pole, 500 V, 250 Vdc, Single-pole imperial mounting base, Naval, Front, Switchboard/panelboard, Used with AQB-A101/A103 and NQB-A101/A103 breakers
Product Name
Eaton Navy & Marine molded case circuit breaker switchboard mount
Catalog Number
315C364G03
UPC
786679836187
Product Length/Depth
8.2 in
Product Height
3.2 in
Product Width
4.4 in
Product Weight
2.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
NSN 5925-00-832-6143
Used with
Used with AQB-A101/A103 and NQB-A101/A103 breakers
Type
Single base
Voltage rating
500 Vac, 250 Vdc
Circuit breaker type
AQB-A101
Class
Naval
Mounting hardware
Single-pole imperial mounting base
Connection
Front
Number of poles
Three-pole
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - 315C364G03
Compatibility with AQB-A101/A103 and NQB-A101/A103 breakers provides plug-and-play integration, reducing field rewiring and enabling quick upgrades in existing panels. For procurement teams, this translates to shorter lead times and lower project risk. Engineers benefit from consistent mounting alignment across multiple vessels, aiding standardization and streamlining maintenance cycles. The 500 VAC and 250 VDC ratings cover diverse shipboard loads, while three-pole protection ensures reliable fault isolation in demanding environments. Front connection and a single-pole imperial mounting base simplify wiring routes, enable straightforward retrofits, and reduce enclosure modification needs. Naval class design combines rugged materials and corrosion resistance with a compact footprint, supporting reliable operation in harsh maritime conditions. UL Listed certification further ensures safety compliance, minimizing regulatory hurdles during audits and inspections. With a footprint of 8.2 in L Ă— 4.4 in W Ă— 3.2 in H and a weight of 2.5 lb, the unit fits tight switchgear spaces without compromising performance. Catalog notes NSN 5925-00-832-6143 aid global sourcing, while compatibility with AQB/NQB breakers reduces spare-part inventories and stockouts. This mounting solution is ideal for naval switchgear upgrades, shipboard power system modernization, and marine panelboard installations requiring proven reliability and straightforward installation.
Get a Quick Quote for a Eaton 315C364G03
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 315C364G03?
Enquire Now
FAQs
The 315C364G03 is designed for use with AQB-A101/A103 and NQB-A101/A103 breakers. This compatibility enables plug‑and‑play installation in standard naval switchboards, minimizing rewiring and reducing commissioning time while ensuring consistent mechanical fitment across multiple layouts.
It supports 500 VAC and 250 VDC, configured as a three-pole device with front connection. The mount uses a single-pole imperial base and is a one-base, front-mated solution, designed to fit within common switchboard footprints and streamline wiring routes in crowded panels.
Yes. The product is classified as Naval, with a marine‑grade construction approach and front-mace mounting suitable for shipboard environments. UL Listed certification further supports compliance with marine electrical standards, helping to reduce downtime during audits and service windows.
The 315C364G03 carries UL Listed certification and Naval class construction. These certifications confirm safety and rugged performance in harsh maritime environments and support regulatory compliance for marine hardware within shipboard electrical systems.
Download catalogs such as Circuit Protection Molded Case Circuit Breakers Vol. 4, Tab 2, and the Eaton Specification Sheet for 315C364G03. These documents provide installation guidelines, dimensional data, and electrical characteristics to support engineering reviews and procurement planning.
