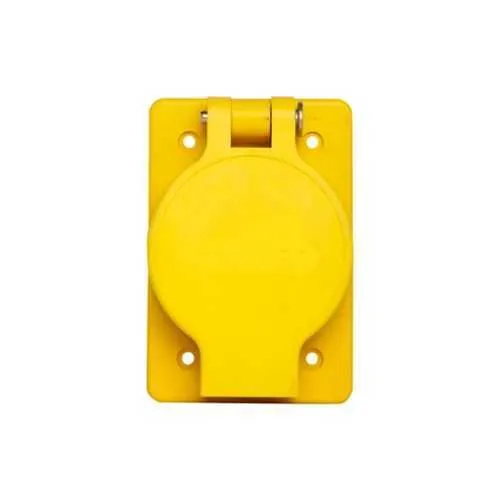

Eaton 3333RW Watertight Locking Receptacle - IP66/NEMA 4X
Part Number: 3333RW
Quick Summary
Eaton 3333RW watertight locking receptacle provides secure power connections for industrial enclosures in harsh, washdown environments. In harsh facilities, moisture intrusion and vibration threaten panel uptime and safety. It carries cULus Listed certification and is rated IP66 with NEMA 3R, 4, and 4X protection, delivering reliable performance in outdoor or wet areas. Designed for back-wiring #14-8 AWG conductors, this single, non-grounding, three-pole unit balances rugged electrical performance with straightforward installation. With a durable glass-filled nylon body and nickel-plated bronze contacts, it minimizes maintenance while extending service life, making it a strong fit for rugged industrial environments.
Product Information
Extended Description
3333RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 125/250V, Back wiring, Yellow, Single, Watertight, Non-NEMA, Three-pole, Three-wire, non-grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
3333RW
UPC
040893687735
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.87 lb
Certifications
cULus Listed
Amperage Rating
30A
NEMA configuration
Non-NEMA
Number Of Poles
Three-pole
Number of wires
Non-grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125/250 V
Environmental resistance
IP66 NEMA 3R NEMA 4 NEMA 3 NEMA 4X NEMA 12
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking design provides a secure, vibration-resistant connection. Business Impact: Reduces downtime and corrosion risk in washdown and outdoor environments. Application: Ideal for control panels and motor-starting circuits in harsh facilities. Feature: 30A, 125/250V, three-pole, non-grounding configuration. Business Impact: Supports typical industrial loads with a robust, code-compliant interface. Application: Suitable for equipment power distribution in manufacturing lines. Feature: Back wiring for #14-8 AWG with defined torque ratings. Business Impact: Faster, repeatable installations with consistent contact pressure, lowering field service time. Application: Panel wiring and field modifications where space is limited. Feature: IP66/NEMA 3R, 4, 4X, 12 environmental protection. Business Impact: Ensures reliable operation in rain, dust, and chemical exposure, reducing maintenance cycles. Application: Outdoor enclosures, washdown zones, and corrosive environments. Feature: Glass-filled nylon body and nickel-plated bronze contacts. Business Impact: High wear resistance and long service life in industrial settings. Application: Heavy-duty industrial receptacles for continuous duty. Feature: Color and form factor: yellow, single locking receptacle. Business Impact: Clear visibility and easy identification in complex panels. Application: Hazardous or high-activity areas where quick verification matters.
Get a Quick Quote for a Eaton 3333RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3333RW?
Enquire Now
FAQs
The 3333RW supports #14-8 AWG conductors using back wiring. Torque requirements are 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG to ensure reliable conductivity. This configuration enables straightforward panel wiring, reduces terminal stress, and improves field reliability in tight electrical boxes.
The 3333RW is cULus Listed and carries IP66 protection with NEMA ratings including 3R, 4, 4X, and 12. These specifications confirm suitability for outdoor, washdown, and corrosive environments, helping ensure regulatory compliance and long-term performance in harsh industrial settings.
This receptacle is ideal for industrial control panels, rugged machinery, outdoor enclosures, and washdown zones. Its 30A, 125/250V, three-pole non-grounding configuration supports common industrial loads, while its watertight design protects against moisture and dust ingress, enabling reliable operation in manufacturing, packaging, and food-processing facilities.
The locking mechanism prevents accidental disconnection in vibration-heavy environments, maintaining consistent power delivery to critical equipment. Combined with IP66/NEMA 4X protection and a durable thermoplastic housing, the design reduces maintenance calls and aligns with stringent industry standards for safety and uptime.
Use back wiring with the specified #14-8 AWG conductors and apply the correct torque per conductor size to maintain solid contacts. Opt for the yellow, rugged housing material and ensure enclosure seals are intact to preserve IP66 ratings. Regular inspection of the nickel-plated bronze contacts helps prevent corrosion and sustain long-term reliability.
