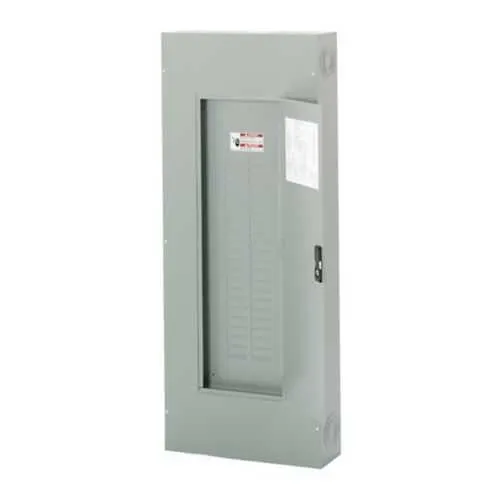

Eaton 34242DYSN Main Lug Loadcenter - UL 50 UL 67
Part Number: 34242DYSN
Quick Summary
Eaton BR main lug loadcenter is a rugged distribution panel for service entrances and industrial electrical distributions. Projects often face cramped spaces, corrosion risk, and long lead times for compatible enclosures. This unit carries UL 50 and UL 67 certifications, ensuring enclosure integrity and electrical safety in demanding environments. With a 400 A rating, aluminum bus, surface mounting, and a 10-year warranty, it supports faster, compliant installations and lower total cost of ownership. It is suitable for 208Y/120, 240 V three-phase services and supports up to 42 circuits and spaces, simplifying panel expansion. Engineers benefit from straightforward mounting, door-lock security, and availability of accessory documentation to streamline commissioning and field service.
Product Information
Extended Description
34242DYSN Eaton: Eaton BR main lug loadcenter,Current design,Main lug,400 A,22,Aluminum,Cover included,NEMA 1,Galvanized steel,Surface,NEMA 1,42 Circuits,42 Spaces,Four-wire,Three-phase,208 Y/120, 240 V,(1) #4/0 AWG-750 kcmil, (2) #3/0 AWG-400 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
34242DYSN
UPC
786676402316
Product Length/Depth
18.13 in
Product Height
54 in
Product Width
6.25 in
Product Weight
100 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Door lock and key included with loadcenter. Approved for 150A and up for residential services in new york city
Special features
Current design
Type
Main lug
Amperage Rating
400 A
Bus material
Aluminum
Cover
Cover included
Mounting
Surface
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Voltage rating
208Y/120, 240V
Wire size
(1) #4/0 AWG-750 kcmil, (2) #3/0 AWG-400 kcmil Cu/Al
Box size
22
Enclosure
NEMA 1
Enclosure material
Galvanized steel
NEMA rating
NEMA 1
Number of wires
4
Feature — 400 A main lug design with an aluminum bus provides high-current capacity with reduced weight and improved heat performance. Business impact — Aluminum bus construction lowers installation effort and enhances durability in harsh environments, supporting longer intervals between maintenance. Application — Suited for service entrances and industrial panels in manufacturing plants, warehouses, and commercial facilities needing reliable three-phase distribution at 208Y/120 or 240 V. Feature — 42 circuits and 42 spaces within a NEMA 1 (galvanized steel) enclosure. Business impact — High circuit density in a compact footprint reduces cabinet footprint and simplifies wiring, while indoor protection reduces corrosion exposure. Application — Ideal for indoor electrical rooms, mechanical spaces, and retrofit projects where reliable space management is critical. Feature — Surface mounting with cover included and door-lock security. Business impact — Streamlines installation, secures access, and minimizes field modifications. Application — Retrofit and new-build projects in manufacturing and commercial facilities. Feature — UL 50 and UL 67 certifications with a 10-year warranty. Business impact — Regulatory compliance and durable lifecycle reduce risk and ownership costs. Application — Suitable for regulated environments and NYC residential service upgrades. Feature — Approved for 150A and up residential services in NYC per catalog notes. Business impact — Facilitates local code compliance and permit readiness. Application — NYC municipal and residential service upgrade programs.
Get a Quick Quote for a Eaton 34242DYSN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 34242DYSN?
Enquire Now
FAQs
The 34242DYSN is designed around the BR series design and accommodates standard 3‑phase, 208Y/120 and 240 V configurations. For exact breaker compatibility and accessory kits, refer to Eaton’s specification sheet (Eaton BR product family) and the current product notes, which detail mounting allowances, enclosure clearances, and approved accessory ranges.
Yes. The catalog notes indicate approval for 150 A and up residential services in New York City. When planning a NYC upgrade, verify service requirements, permit scope, and ensure the panel configuration supports the feeder and load profile for 208Y/120 or 240 V three-phase systems as applicable.
Surface mounting simplifies both new installations and retrofits by attaching directly to a wall without a recessed cavity. The unit ships with a cover and a door lock for security, and its 42‑space layout enables clean, scalable wiring paths. This reduces field modification time and accelerates commissioning in industrial or commercial applications.
The enclosure is galvanized steel with a NEMA 1 rating, suitable for indoor use and basic protection against dust and incidental moisture. It carries UL 50 and UL 67 certifications, ensuring cabinet integrity and electrical safety under typical service conditions. This combination supports regulatory compliance and reliable operation in commercial environments.
Eaton backs the BR main lug loadcenter with a 10-year warranty, reflecting long-term durability. Documentation such as the specification sheet and warranty guide provide installation tips, lifecycle guidance, and steps for field service or product issues, helping sustain uptime and return on investment for critical electrical infrastructure.
