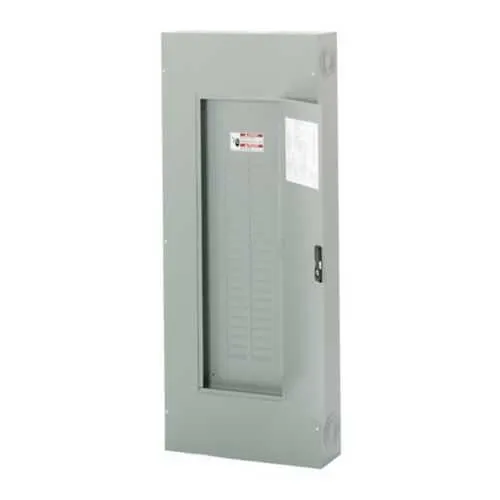

Eaton 34242EFN BR Main Lug Loadcenter - UL 50/UL 67
Part Number: 34242EFN
Quick Summary
The Eaton BR main lug loadcenter distributes power safely to large circuits in commercial and light industrial panels. Engineers often struggle with matching amperage ratings, enclosure types, and wire sizing for reliable performance. UL 50 and UL 67 listings ensure safe enclosure performance, while NEMA 1 construction supports indoor dry environments. With a 600 A rating, 42 circuits/spaces, and a galvanized steel enclosure, it accelerates installations and supports expansion in industrial control rooms for long-term reliability. The included cover and door lock enhance security and serviceability, while a 10-year warranty helps protect total cost of ownership of the system.
Product Information
Extended Description
34242EFN Eaton: Eaton BR main lug loadcenter,Current design,Main lug,600 A,22,Aluminum,Cover included,NEMA 1,Galvanized steel,Combination,NEMA 1,42 Circuits,42 Spaces,Four-wire,Three-phase,208 Y/120, 240 V,(2) #2 AWG-500 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
34242EFN
UPC
786676308625
Product Length/Depth
16.22 in
Product Height
54 in
Product Width
6.31 in
Product Weight
100 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Door lock and key included with loadcenter
Special features
Current design
Type
Main lug
Amperage Rating
600 A
Bus material
Aluminum
Cover
Cover included
Mounting
Combination
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Voltage rating
208Y/120, 240V
Wire size
(2) #2 AWG-500 kcmil Cu/Al
Box size
22
Enclosure
NEMA 1
Enclosure material
Galvanized steel
NEMA rating
NEMA 1
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - 34242EFN
Eaton type BR circuit breaker limited warranty June 2024
Feature: 600 A main lug rating with 42 circuits and 42 spaces in a three-phase design. Business Impact: Enables centralized distribution for large loads with a compact footprint, reducing wiring complexity and installed cost. Application: Ideal for heavy commercial and light industrial panels where space and serviceability matter. Feature: Aluminum bus material. Business Impact: Lighter weight improves handling during installation and reduces overall installed weight without sacrificing conductivity. Application: Preferred in overhead or wall-mounted configurations in indoor environments. Feature: NEMA 1 galvanized steel enclosure with cover included and door lock. Business Impact: Provides security and indoor protection, streamlining installation with ready access control for maintenance. Application: Electrical rooms, basements, and dry indoor spaces. Feature: Wire size capacity of (2) #2 AWG-500 kcmil Cu/Al. Business Impact: Supports high-capacity feeders and scalable branch circuits, minimizing future panel upgrades. Application: Large feeders for industrial control systems and commercial buildings. Feature: Voltage rating 208Y/120, 240 V and three-phase configuration. Business Impact: Flexible integration with existing power systems, reducing conversion costs. Application: New builds and retrofits in mixed-voltage environments. Feature: Cover included, combination mounting, and 10-year warranty. Business Impact: Improves serviceability, installation efficiency, and long-term cost-of-ownership. Application: Ongoing maintenance programs and demanding facility schedules.
Get a Quick Quote for a Eaton 34242EFN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 34242EFN?
Enquire Now
FAQs
This unit is ideal for commercial and light industrial panels requiring high-current distribution. With 600 A capacity and 42 circuits, it supports centralized feeders in control rooms, mechanical spaces, and service entrances while fitting into compact footprints.
Yes. The 34242EFN is designed for three-phase operation at 208Y/120 V and 240 V, enabling versatile integration with common industrial and commercial power architectures without additional transformers.
The enclosure is NEMA 1 rated and constructed from galvanized steel, with a cover included. This combination provides indoor dry-space protection, ease of security (door lock included), and reliable service access.
The model accommodates large feeders up to (2) #2 AWG to 500 kcmil Cu/Al, supporting substantial branch circuits and facilitating future expansion within the 42 circuit/space configuration.
A 10-year warranty accompanies the unit, with available catalogs and specification sheets. Documentation includes installation notes, safety data, and warranty guidance to streamline procurement and compliance.
