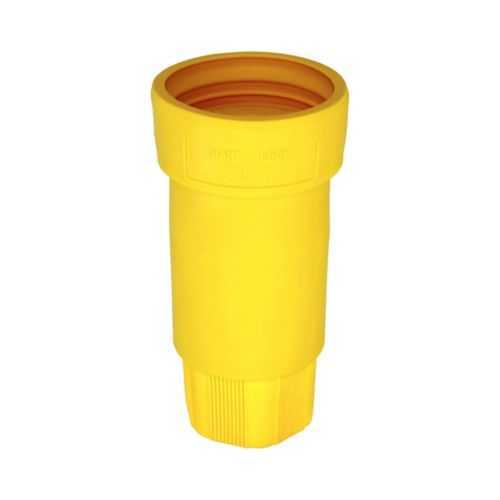

Eaton 3433CW Watertight Locking Connector - cULus Listed
Part Number: 3433CW
Quick Summary
The Eaton 3433CW watertight locking connector provides secure, moisture-resistant power connections for industrial equipment and harsh environments. In washdown and dusty facilities, ordinary connectors can fail from water ingress, causing costly downtime. This product carries cULus Listed certification along with IP67 and NEMA 4X/6P ratings, reinforcing reliability in challenging conditions. Its rugged nylon body and Santoprene seal deliver long-term durability, while back-wiring and a 30A rating support efficient, scalable automation installations.
Product Information
Extended Description
3433CW Eaton: Eaton Arrow Hart watertight locking plug, #14-10 AWG, 30A, Industrial, 120/208V, Yellow, Watertight, Non-NEMA, Four-pole, Four-wire, non-grounding, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
3433CW
UPC
040893642338
Product Length/Depth
6 in
Product Height
3.5 in
Product Width
4.63 in
Product Weight
0.25 lb
Certifications
cULus Listed
Amperage Rating
30A
NEMA configuration
Non-NEMA
Number Of Poles
Four-pole
Number of wires
Non-grounding 4
Torque rating
20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 6P IP67 NEMA 4X NEMA 6 NEMA 4
Allowable wire size
#14-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking plug
Watertight locking plug design minimizes water ingress and corrosion, reducing maintenance downtime and extending service life in harsh environments, which translates to higher overall equipment effectiveness. Four-pole, four-wire configuration supports 3ØY 120/208V at 30A, enabling reliable motor and drive connections without resizing existing panels or gear. The combination of IP67/NEMA 4X/6P ratings and rugged housing protects against washdowns, chemicals, and outdoor exposure, delivering compliance and fewer field failures across industrial facilities. Back wiring simplifies field termination, shortening installation time and decreasing labor costs while improving termination consistency and pull-out resistance in cabinet layouts. Nickel-plated brass contacts offer low contact resistance and durable conductivity, supporting repeat mating cycles and improved electrical reliability in demanding applications. The yellow nylon body with Santoprene sealing provides high visibility and chemical resistance, aiding quick inspections and safe, durable installations in demanding environments.
Get a Quick Quote for a Eaton 3433CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3433CW?
Enquire Now
FAQs
The 3433CW accepts #14-10 AWG conductors with a back-wiring termination method, enabling straightforward field termination and reliable, high-integrity connections in harsh environments.
The 3433CW is cULus Listed and carries IP67, NEMA 6P, NEMA 4X, and NEMA 4/NEMA 6 environmental ratings, ensuring dependable performance in washdown, outdoor, and corrosive industrial settings.
Yes. It is a four-pole, four-wire non-grounding locking plug rated at 30A for 3ØY 120/208V applications, making it suitable for motors, drives, and other three-phase equipment.
Back wiring simplifies termination, reduces installation time, and improves wire organization inside enclosures, which lowers labor costs and enhances connection reliability in high-use industrial cabinets.
The 3433CW combines a watertight locking plug design with Santoprene sealing, a nylon body, and nickel-plated brass contacts, delivering superior moisture resistance, locking security, and suitability for demanding washdown and outdoor environments.
