Eaton 3500MV3AD38FGMW MV AutoVAR Filtered Cap Bank - CSA
Part Number: 3500MV3AD38FGMW
Quick Summary
The Eaton MV AutoVAR filtered capacitor bank is a reliable solution for reactive power management in 13.8 kV distribution networks. Engineers often struggle with voltage fluctuations and harmonic resonance that reduce efficiency and uptime; this system addresses those challenges with a proven, pre-engineered design and robust construction. It carries CSA certification for Canada and IEEE Std. 18 compliance, ensuring regulatory alignment and documented performance. By delivering high kVAR capacity and automatic VAR control, it reduces energy costs and stabilizes bus voltages, enabling safer operation and simpler procurement for utilities, OEMs, and maintenance teams.
Product Information
Extended Description

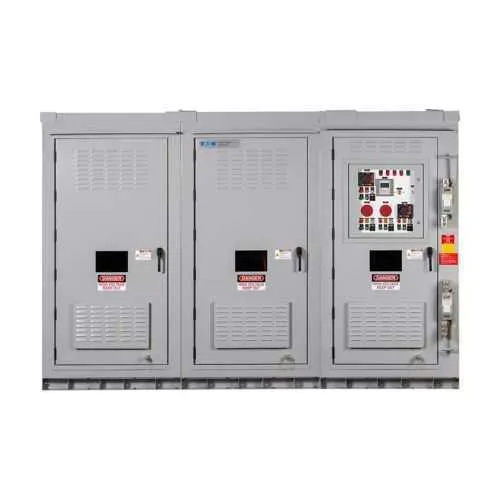

3500MV3AD38FGMW Eaton: Eaton MV AutoVAR 15kV Class Standard Design capacitor bank,3500KVAR, 13800V, 60HZ, 4.2H DETUNED FILTER
Product Name
Eaton MV AutoVAR filtered capacitor bank
Catalog Number
3500MV3AD38FGMW
UPC
786689241773
Product Length/Depth
106 in
Product Height
99 in
Product Width
65 in
Product Weight
10000 lb
Certifications
CSA Certified (Canada Only) IEEE Std. 18
Frequency rating
60 Hz
kVA rating
3500 kVAR
Voltage rating
13800 V
High kVAR rating at 13.8 kV enables immediate reactive power support, reducing current draw and line losses in MV feeders while improving power factor for critical loads. This translates to measurable efficiency gains, lower utility penalties, and enhanced voltage regulation across the distribution network. The 4.2H detuned filter minimizes harmonic resonance with nearby capacitor banks and switching devices, protecting equipment and extending asset life in busy industrial facilities. AutoVAR control automatically adjusts VAR output to match load swings, delivering consistent performance and reducing manual tuning requirements during commissioning and operation. The unit’s pre-engineered design with 106 in length, 99 in height, and 65 in width, plus a 10,000 lb weight, supports straightforward installation and integration with standard MV switchgear and bus configurations. Compliance with IEEE Std. 18 and CSA certification simplifies regulatory approval and downstream procurement, while the robust enclosure supports reliable operation in demanding environments. Long-term maintenance considerations are mitigated by proven reliability and a clear service strategy, helping facilities achieve a favorable total cost of ownership.
