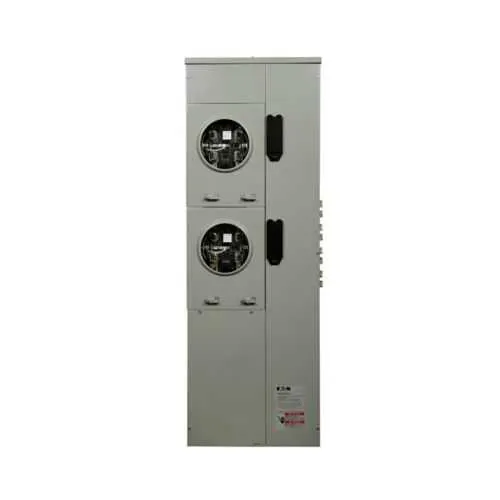

Eaton 35MM240R124045 35MM Meter Stack - UL Listed
Part Number: 35MM240R124045
Quick Summary
Eaton 35MM240R124045 is a plug-in meter stack designed for commercial electrical panels, delivering reliable energy metering and easy service integration. Engineers often grapple with bulky panels, limited exit options, and confusing wiring when upgrading metering. UL Listed certification and a rugged NEMA 3R enclosure ensure reliable outdoor or damp-location performance; it supports 120/240 V single-phase and 208Y/120 V three-phase networks. For contractors and procurement teams, this unit offers scalable metering with two sockets, selectable MCBs, and straightforward installation, reducing total installed cost and simplifying service. Its 18.25 inch depth and 52.63 inch height fit many commercial spaces while maintaining accessibility for inspection and maintenance.
Product Information
Extended Description
35MM240R124045 Eaton: Eaton 35MM commercial meter stack, Plug-in socket, 400A, Al, Bus:1200A, Lever, NEMA 3R, Depends on selected MCB, 5-jaw, Sockets:2, 3-phase in, 1-phase out, A-B, (1) 400A and (1) 350A breakers installed, Ringless, Socket:400A, 120/240 Vac
Product Name
Eaton 35MM commercial meter stack
Catalog Number
35MM240R124045
UPC
782116995578
Product Length/Depth
18.25 in
Product Height
52.63 in
Product Width
8.75 in
Product Weight
320 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Type
Plug-in socket
Eaton Specification Sheet - 35MM240R124045
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Plug-in socket design enables faster installation and easier field service. Benefit: Reduces commissioning time and minimizes wiring complexity, translating to lower labor costs on new builds and retrofit projects. Application: Ideal for commercial metering upgrades in office complexes and retail facilities. Feature: 400 A current rating with a 1200 A bus allows scalable metering for main feeders without multiple housings. Benefit: Consolidates metering with fewer components, improving reliability and reducing hardware footprint in data centers and industrial spaces. Application: Large-load commercial environments. Feature: Two sockets and 3-phase in, 1-phase out configuration simplify connection to diverse electrical systems. Benefit: Supports mixed lighting and power circuits, improving accuracy of energy measurements and compliance reporting. Application: Utilities, manufacturing facilities, and campus buildings. Feature: NEMA 3R enclosure and UL Listed certification offer outdoor and damp-location resilience. Benefit: Delivers durable performance with regulatory assurance, reducing maintenance outages and warranty costs. Application: Outdoor meter installations and weather-exposed installations. Feature: Top, bottom, or back exit options for main tenant feeders; ringless design facilitates clean, space-efficient installation. Benefit: Flexible mounting and simplified routing in retrofit projects, minimizing wall space and conduit work. Application: Construction and retrofits in constrained commercial spaces. Feature: Heavy-duty construction (320 lb weight) paired with robust mounting requirements. Benefit: Ensures long service life in demanding environments with improved mechanical stability. Application: Industrial sites and multi-tenant facilities where durability matters. Feature: 120/240 Vac operation with 208Y/120 V network metering compatibility. Benefit: Broad compatibility with common utility and panel configurations, reducing the need for bespoke transformers. Application: Commercial and light industrial electrical systems.
Get a Quick Quote for a Eaton 35MM240R124045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35MM240R124045?
Enquire Now
FAQs
Installation begins with locating a suitable enclosure, ensuring the NEMA 3R rating covers the intended environment. The plug-in socket design simplifies wiring, and the unit supports 3-phase in, 1-phase out with 120/240 Vac operation. Use proper lifting procedures for the 320 lb assembly and secure the unit with the correct mounting hardware. Follow the catalog notes for feeder exit options (top, bottom, or back) to match your panel layout and MCB configuration.
The meter stack is designed for mixed configurations, including 2 sockets with 1-phase out and 3-phase in, along with 400 A main and 350 A secondary breakers installed per the catalog notes. It supports 120/240 V single-phase networks and 208Y/120 V three-phase networks, with a 1200 A bus. Ensure selected MCBs align with the upstream electrical design and clearance requirements.
Yes. The unit carries UL Listed certification and a NEMA 3R enclosure rating, which provides outdoor and damp-location resilience. For outdoor installations, ensure rainproof cap hubs are mounted if exiting from the top and follow the catalog notes on outdoor mounting and weather considerations. Regular inspection and adherence to the warranty policy help sustain performance over time.
The product is UL Listed, confirming compliance with recognized safety standards for electrical equipment. Its NEMA 3R enclosure supports outdoor use, offering protection against the elements. While the data sheet highlights UL Listing, always verify project-specific requirements (local codes and client standards) and keep the warranty documentation (one year from install or 18 months from shipment) readily accessible for audits.
The meter stack reduces installation time with a plug-in socket design, lowering field labor costs and commissioning risk. Its rugged build and UL/NEMA ratings minimize downtime, while the warranty provides protection against early failures. Regular visual inspections and clean connections during scheduled maintenance help sustain measurement accuracy and extend service life, contributing to favorable total cost of ownership in commercial facilities.
