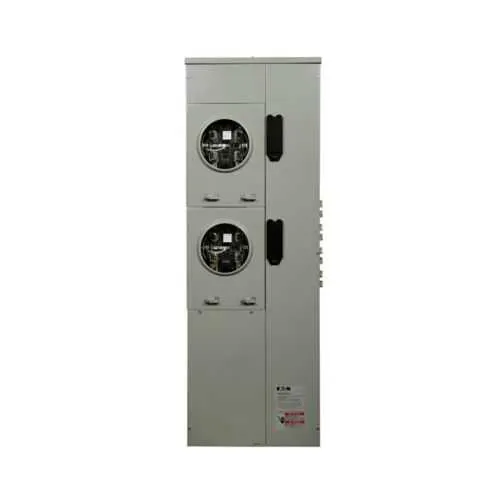

Eaton 35MM240R124053 commercial meter stack - UL Listed
Part Number: 35MM240R124053
Quick Summary
Eaton 35MM240R124053 commercial meter stack is a plug-in socket system designed for 3-phase power distribution up to 400A. This solution addresses installation challenges like limited space, variable feeder exits, and exposure to outdoor conditions. Key certifications include UL Listed protection and outdoor suitability with NEMA 3R-rated construction, enabling reliable operation in harsh environments. The design also supports compatibility with a range of MCBs and offers top, bottom, or back exit options to match field layouts. By combining rugged hardware with a compact footprint, it delivers faster commissioning, reduces wiring errors, and lowers total installed cost for commercial and light industrial facilities.
Product Information
Extended Description
35MM240R124053 Eaton: Eaton 35MM commercial meter stack, Plug-in socket, 400A, Al, Bus:1200A, Lever, NEMA 3R, Depends on selected MCB, 5-jaw, Sockets:2, 3-phase in, 1-phase out, A-B, (1) 350A and (1) 300A breakers installed, Ringless, Socket:400A, 120/240Vac
Product Name
Eaton 35MM commercial meter stack
Catalog Number
35MM240R124053
UPC
782116995592
Product Length/Depth
18.25 in
Product Height
52.63 in
Product Width
8.75 in
Product Weight
320 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Type
Plug-in socket
Feature: Plug-in socket design with two sockets and a 5-jaw configuration simplifies field connections. Business Impact: Reduces on-site wiring time and minimizes mis-wiring, accelerating commissioning. Application: Ideal for commercial meter stacks in 3-phase distributions where quick service and reliable metering are needed. Feature: 400A main rating plus 120/240V single-phase and 208Y/120V network metering supports high-load applications while maintaining precise monitoring. Business Impact: Enables scalable power distribution and accurate load profiling, improving energy management and reducing overdesign costs. Application: Data centers, manufacturing floors, and large facilities. Feature: Flexible exit options (top, bottom, or back) and rainproof cap guidance for outdoor use. Business Impact: Facilitates retrofit projects and new builds with adaptable routing, reducing enclosure modification requirements. Application: Outdoor installations and space-constrained rooms. Feature: 3-phase in, 1-phase out with two sockets, and clear MCB compatibility notes. Business Impact: Streamlines breaker coordination and supports customized feeder configurations while ensuring code-compliant installations. Application: Commercial electrical rooms and service entrances. Feature: Certifications and rugged build (UL Listed, NEMA 3R). Business Impact: Improves regulatory compliance, weather resistance, and service life, lowering maintenance costs. Application: Outdoor commercial and light-industrial environments. Feature: Dimensions and weight (18.25 in L, 52.63 in H, 8.75 in W, 320 lb) support precise planning and fit within standard enclosures. Business Impact: Reduces site surprises and speeds layout planning during procurement. Application: Project scoping for new builds and retrofits.
Get a Quick Quote for a Eaton 35MM240R124053
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35MM240R124053?
Enquire Now
FAQs
The unit supports top, bottom, or back exit configurations for main tenant feeders, allowing flexible routing to suit existing enclosures and room layouts while maintaining UL Listed and NEMA 3R compliance.
Yes. It is designed for outdoor use with NEMA 3R ruggedness and UL Listed protection, and catalog notes provide guidance for rainproof cap mounting when exiting the top for outdoor deployments.
It features a 400A main rating with 120/240V single-phase, three-wire systems and 208Y/120V network metering, with 2 sockets and 3-phase in / 1-phase out connections.
The meter stack uses a plug-in socket arrangement with a 5-jaw design and two sockets; compatibility depends on the selected MCB, enabling tailored feeder configurations for specific installations.
Dimensions are 18.25 in depth, 52.63 in height, and 8.75 in width, with an approximate weight of 320 lb. Warranty follows Eaton policy 25-000: one year from installation or 18 months from shipment, whichever occurs first.
