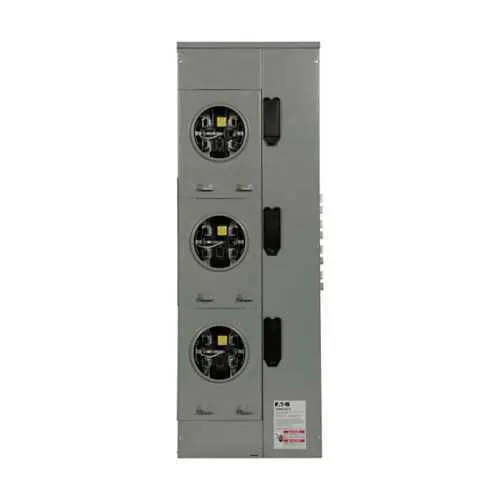

Eaton 35MM320R12NY Meter Stack - UL Listed, 200A
Part Number: 35MM320R12NY
Quick Summary
Eaton 35MM320R12NY meter stack is a plug-in socket system for commercial panel metering. Engineers often wrestle with wiring complexity, retrofit challenges, and slow field installations that delay projects. UL Listed certification underscores safety and reliability in demanding electrical environments, while the unit supports 120/240Vac single-phase and 208Y/120V networks for versatile metering. This solution pairs with Eaton metering modules and standard MCBs to streamline installs, reduce labor, and lower lifecycle costs, delivering measurable business value through faster commissioning and safer connections.
Product Information
Extended Description
35MM320R12NY Eaton: Eaton 35MM commercial meter stack, Plugin socket, 200A, Al, Bus:1200A, Lever, 3R, Depends on selected MCB, 5-jaw, Sockets:3, 3-phase in, 1-phase out, A-B, EHD2_, CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM,CVH2_XMM, Ringless, Socket:225A, 120/240Vac
Product Name
Eaton 35MM commercial meter stack
Catalog Number
35MM320R12NY
UPC
786685391496
Product Length/Depth
18.25 in
Product Height
52.63 in
Product Width
8.75 in
Product Weight
98 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top bottom or back If being used in outdoor application and exiting the top mount Myer type hubs on rainproof cap. 120/240V single-phase three-wire systems and 208Y/120V network metering. For use in New York
Type
Plug-in socket
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - 35MM320R12NY
Feature → Business Impact → Application: Plug-in socket design enables quick, tool-free connections, reducing field wiring time and labor costs while improving connection integrity in dense switchgear assemblies. Application: ideal for commercial metering deployments where speed and reliability matter. Feature → Business Impact → Application: Supports 120/240Vac single‑phase and 208Y/120V networks, enabling seamless integration with regional utility configurations and reducing the need for alternate configurations. Application: suitable for mixed-voltage commercial facilities requiring flexible metering. Feature → Business Impact → Application: Three sockets with 3R enclosure and top/bottom/back exit options facilitate versatile wiring exits and outdoor installations with rainproof caps. Application: effective for both indoor panels and outdoor enclosures in complex topologies. Feature → Business Impact → Application: 200A main, 1200A bus capacity minimizes the need for multiple meters and simplifies service upgrades. Application: scalable metering for growing loads in commercial buildings. Feature → Business Impact → Application: UL Listed warranty and Eaton standards deliver predictable performance and risk mitigation. Application: compliance assurance and long-term reliability for critical infrastructure. Feature → Business Impact → Application: NY-specific catalog notes and compatibility ensure regional applicability and faster approval cycles. Application: streamlined procurement and project planning for New York installations.
Get a Quick Quote for a Eaton 35MM320R12NY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35MM320R12NY?
Enquire Now
FAQs
Yes. The unit is designed with a 3R enclosure and offers top, bottom, or back exit options, plus rainproof cap provisions for outdoor applications, simplifying installation in harsh environments.
The meter stack provides a 200A main with a 1200A bus, includes three sockets, and supports 120/240Vac single-phase as well as 208Y/120V networks, with three-phase in and one-phase out in certain configurations.
Yes. The catalog notes indicate applicability for use in New York, and the product is UL Listed, aligning with regional safety and compliance requirements.
The plug-in socket design reduces field wiring time, and configurable exit options (top/bottom/back) allow faster routing of feeders, leading to lower labor costs and quicker commissioning on commercial projects.
Warranty follows Eaton policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first, with standard manufacturer support and replacement terms.
