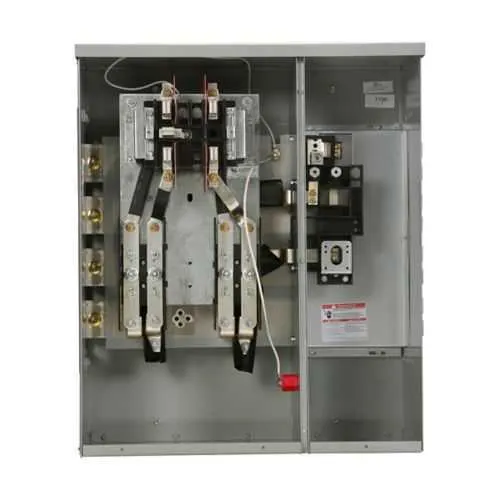

Eaton 35SS120RAC Meter Stack - UL Listed, 120/240 V
Part Number: 35SS120RAC
Quick Summary
The Eaton 35SS120RAC commercial meter stack is a compact, ready-to-use metering solution for multi-tenant and commercial installations. Engineers often struggle to align meter infrastructure with outdoor/indoor environments while meeting code, spacing, and load-handling requirements. This unit is UL Listed, EUSERC Approved, and features a rugged NEMA 3R enclosure for dependable outdoor performance, ensuring code compliance and long-term reliability. With 120/240 V capacity, a 200 A rating, and a 1200 A bus, it integrates seamlessly with Eaton metering products and broader commercial electrical distribution strategies, while supporting flexible installation and ease of maintenance. This model also benefits from test bypass, a five-jaw socket, and configurable feeder exits to optimize project timelines and field wiring.
Product Information
Extended Description
35SS120RAC Eaton: Eaton commercial meter stack, Socket amperage: 225A, Amperage rating: 200A, Aluminum, Bus rating: 1200A, Test bypass, NEMA 3R, Depends on selected MCB, 1 Socket, Five-jaw, Three-phase in, single-phase out, Ring, 120/240 Vac
Product Name
Eaton 35SS commercial meter stack
Catalog Number
35SS120RAC
UPC
786849053017
Product Length/Depth
26.25 in
Product Height
10.75 in
Product Width
23.75 in
Product Weight
95 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
EUSERC Approved
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Utility approvals
ID : Idaho Power OR : Idaho Power WA : Seattle City Light AK : Anchorage Municipal Light & Power NV : NV Energy CA : Pacific Gas and Electric (PG&E) CA : Sacramento Municipal Utility District (SMUD) CA : PacifiCorp/Pacific Power/Rocky Mountain Power ID : PacifiCorp/Pacific Power/Rocky Mountain Power OR : PacifiCorp/Pacific Power/Rocky Mountain Power UT : PacifiCorp/Pacific Power/Rocky Mountain Power WA : PacifiCorp/Pacific Power/Rocky Mountain Power WY : PacifiCorp/Pacific Power/Rocky Mountain Power AZ : Tucson Electric Power/ UniSource AZ : Sulphur Springs Valley Electric Coop WA : Puget Sound Energy WA : Tacoma Public Utilities
Interrupt rating
Depends on selected main circuit breaker
Secondary circuit breaker
EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X, CVH2_X
Enclosure
Indoor/outdoor
Voltage rating
120/240 V
Amperage Rating
200A
Bus material
Aluminum
Bus Rating
1200 A
Bypass
Test
Number of jaws
Five-jaw
Number of sockets
1
Phase balance
A-C
Security
Ring
Socket amperage
225A
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - 35SS120RAC
Feature: Socket arrangement and electrical ratings provide a 225 A socket amperage and 200 A amperage rating with a 1200 A bus rating, plus a single 1-socket, five-jaw configuration for three-phase in and single-phase out. Business Impact: Simplifies metering deployment for mixed voltage and phase configurations, reducing field junctions and total installed cost. Application: Ideal for commercial buildings and light-industrial facilities needing reliable 120/240 V residential-style metering with robust three-phase in capability. Feature: NEMA 3R indoor/outdoor enclosure delivers weather resistance and enduring performance under outdoor conditions. Business Impact: Minimizes enclosure degradation, lowers maintenance cycles, and supports year-round operation in exposed environments. Application: Outdoor meter stacks at building perimeters, car parks, and remote power distribution zones. Feature: Certifications and compliance with UL Listed and EUSERC approval ensure regulatory alignment and utility interconnect readiness. Business Impact: Eases utility approvals and customer-side interconnection, reducing project risk and approval timelines. Application: Projects requiring strict utility compatibility and code compliance. Feature: Flexible feeder exit options (top, bottom, or back) and a rainproof hub option for outdoor installations streamline site planning. Business Impact: Accelerates installation sequencing and reduces rework by accommodating existing room layouts. Application: Retrofit and new-construction metering suites in commercial properties. Feature: Product dimensions and weight (26.25 in L x 23.75 in W x 10.75 in H; 95 lb) support accurate space planning and shipping logistics. Business Impact: Enables precise layout design and cost estimates in procurement and project scoping. Application: Detailed site surveys and HVAC/electrical room planning for electrical distribution layouts.
Get a Quick Quote for a Eaton 35SS120RAC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35SS120RAC?
Enquire Now
FAQs
The 35SS120RAC supports three-phase in and single-phase out metering with top, bottom, or back entry options for main tenant feeders. For outdoor installations requiring top exits, rainproof Myer-type hubs can be mounted on the cap. This flexibility helps achieve optimal space utilization and easier integration with existing panels and feeders, reducing field wiring complexity and installation time.
Key specs include a socket amperage of 225A, an amperage rating of 200A, a bus rating of 1200A, and a voltage rating of 120/240V. The enclosure is NEMA 3R rated for indoor/outdoor use, with a five-jaw, single-socket configuration designed for three-phase in and single-phase out metering. These specs enable reliable service in a wide range of commercial environments.
This meter stack is ideal for commercial buildings, multi-tenant facilities, retail centers, and light-commercial sites that require 120/240V networks or 208Y/120V configurations. Its robust bus and enclosure design support reliable metering under varying load conditions, while its compatibility with Eaton metering products simplifies system planning and ongoing maintenance.
The 35SS120RAC is UL Listed and EUSERC Approved, with utility-approval compatibility across multiple regions. These certifications facilitate utility interconnections and code compliance, reducing project risk and expediting approvals, which is especially valuable for new builds and retrofit projects in regulated markets.
With a test bypass feature, rugged NEMA 3R enclosure, and a modular design (including 225A socket and 1200A bus), maintenance and commissioning become faster and less disruptive. The durable aluminum bus and high-grade construction minimize downtime, lowering total cost of ownership through longer service intervals and reduced field intervention for routine metering tasks.
