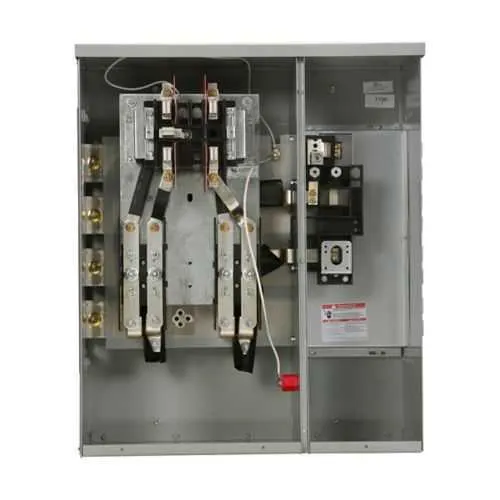

Eaton 35SS120RCAB Commercial Meter Stack - UL Listed
Part Number: 35SS120RCAB
Quick Summary
Eaton 35SS120RCAB is a commercial meter stack used to safely distribute 3-phase power to facilities. Engineers often struggle with integrating large main tenant feeders while meeting space, weather, and code requirements. UL Listed, EUSERC Approved, and a rugged NEMA 3R enclosure provide reliability in both indoor and outdoor environments. Designed for scalable metering with a 1200 A bus and 225 A socket, it enables faster deployment and lower field wiring costs. For facility managers and electrical contractors, this model delivers predictable performance, clear documentation, and a strong total-cost-of-ownership profile.
Product Information
Extended Description
35SS120RCAB Eaton: Eaton 35SS commercial meter stack, Safety socket, 200A, Cu, Bus:1200A, Test bypass, 3R, Depends on selected MCB, 5-jaw, Sockets:1, 3-phase in, 1-phase out, A-B, EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X,CVH2_X, Ring, Socket:225A, 120/240V
Product Name
Eaton 35SS commercial meter stack
Catalog Number
35SS120RCAB
UPC
786685482460
Product Length/Depth
49 in
Product Height
10 in
Product Width
26 in
Product Weight
98 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
EUSERC Approved
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Bus Rating
1200 A
Number of jaws
Five-jaw
Number of sockets
1
Phase
Three-phase in, single-phase out
Socket amperage
225A
Voltage rating
120/240 V
Amperage Rating
200A
Enclosure
NEMA 3R
Feature: 1200 A bus Rating and Five-jaw construction → Business Impact: Supports large service entrances with reduced risk of misalignment or arcing during high-load events → Application: Ideal for commercial campuses and mid-size industrial facilities that require robust metering and service distribution. Long-tail keywords: 1200 A bus, five-jaw meter stacks, large service entrance. Feature: Phase configuration Three-phase in, single-phase out → Business Impact: Enables flexible feeder metering and simplified coordination with existing single-phase branches → Application: Office complexes, retail centers, and data centers transitioning to mixed-phase layouts. Long-tail keywords: three-phase in, single-phase out metering. Feature: Socket amperage 225 A and Voltage rating 120/240 V → Business Impact: Matches common utility and customer load profiles, minimizing adapters or custom wiring → Application: Main service panels and sub-panels in commercial buildings. Long-tail keywords: 225 A socket, 120/240 V metering. Feature: Enclosure NEMA 3R → Business Impact: Offers reliable outdoor performance and weather resistance, reducing maintenance and corrosion concerns → Application: Outdoor installations, campus infrastructure, and remote site metering. Long-tail keywords: NEMA 3R enclosure, outdoor electrical enclosure. Feature: Compliance and certifications UL Listed and EUSERC Approved → Business Impact: Ensures regulatory alignment, faster approvals, and reduced inspection risk → Application: Facilities subject to utility interconnection and code compliance. Long-tail keywords: UL Listed metering, EUSERC Approved. Feature: Main tenant feeders exit options top, bottom, or back → Business Impact: Streamlines physical layout and mounting in tight spaces, lowering installation time → Application: Retrofit projects and new builds with varied room configurations. Long-tail keywords: exit options top bottom back, meter stack installation. Feature: 49 in L x 26 in W x 10 in H footprint, 98 lb weight → Business Impact: Manageable footprint with predictable handling and installation planning → Application: Wall-mounted or free-standing meter stacks in distribution rooms. Long-tail keywords: dimensions 49 in by 26 in, 98 lb weight. Feature: 1 socket, 1 main meter, test bypass and safety socket features → Business Impact: Simplifies maintenance, ensures safe testing, and reduces downtime → Application: Critical load facilities and service entrances requiring easy testing paths. Long-tail keywords: test bypass, safety socket, meter testing.
Get a Quick Quote for a Eaton 35SS120RCAB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35SS120RCAB?
Enquire Now
FAQs
The 35SS120RCAB is designed for seamless integration with standard commercial service entrances. It features a 1200 A bus rating, five-jaw design, and a single 225 A socket, with 120/240 V operation and three-phase in, single-phase out metering. This compatibility supports straightforward upgrades to larger feeders without extensive rewiring or panel reconfiguration, reducing downtime during modernization projects.
Key specs include a 1200 A bus rating, five-jaw configuration, one 225 A socket, 120/240 V voltage rating, and an amperage rating of 200 A. The enclosure is NEMA 3R, suitable for indoor or outdoor use, with UL Listed and EUSERC Approved certifications. These figures guide service calculations, ensure compliance, and help validate that the stack can handle peak loads safely.
Yes. The 35SS120RCAB uses a NEMA 3R enclosure designed for outdoor environments, and it includes notes on outdoor mounting with rainproof cap configurations. Its UL Listed status and EUSERC approval further support outdoor utility interconnections, reducing weather-related maintenance and risk while preserving metering accuracy.
This Eaton meter stack is UL Listed and EUSERC Approved, signaling compliance with widely recognized safety and interconnection standards. These certifications help streamline utility approvals, ensure reliability under normal operating conditions, and provide assurance for regulated installations in commercial and light-industrial settings.
The unit carries a one-year warranty from installation or an 18-month period from shipment, whichever comes first, under Eaton’s policy. Maintenance benefits stem from its robust NEMA 3R enclosure, tested bypass features, and the straightforward top/bottom/back exit configurations, which minimize field adjustments and reduce downtime during routine inspections.
