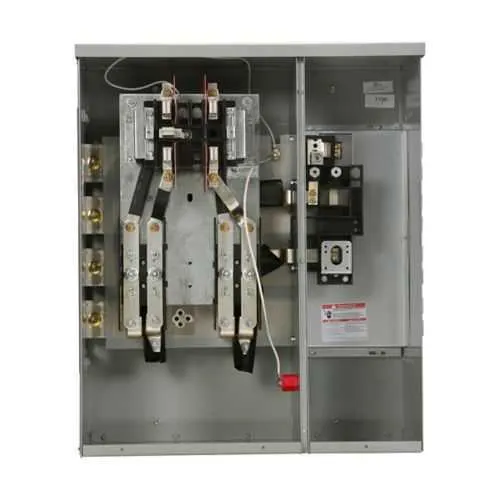

Eaton 35SS120RCAC Commercial Meter Stack - UL Listed
Part Number: 35SS120RCAC
Quick Summary
Eaton 35SS120RCAC is a commercial meter stack that provides centralized metering for commercial electrical distribution. Facility teams often struggle with compatibility between enclosures, limited entry options, and outdoor installation challenges. This unit delivers UL Listed and EUSERC Approved compliance and uses a rugged NEMA 3R enclosure to withstand harsh environments. With a 1200 A bus rating and the ability to exit main tenant feeders from top, bottom, or back, it supports flexible, scalable metering for growing facilities. Designed for 120/240 V systems and 200 A service configurations, it helps reduce upstream equipment swaps while facilitating faster project delivery and reduced maintenance costs.
Product Information
Extended Description
35SS120RCAC Eaton: Eaton 35SS commercial meter stack, Safety socket, 200A, Cu, Bus:1200A, Test bypass, 3R, Depends on selected MCB, 5-jaw, Sockets:1, 3-phase in, 1-phase out, A-C, EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X,CVH2_X, Ring, Socket:225A, 120/240V
Product Name
Eaton 35SS commercial meter stack
Catalog Number
35SS120RCAC
UPC
786685482477
Product Length/Depth
26.25 in
Product Height
10.75 in
Product Width
23.75 in
Product Weight
95 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
EUSERC Approved
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Bus Rating
1200 A
Number of jaws
Five-jaw
Number of sockets
1
Phase
Three-phase in, single-phase out
Socket amperage
225A
Voltage rating
120/240 V
Amperage Rating
200A
Enclosure
NEMA 3R
Feature: 1200 A bus rating; Business Impact: Supports large commercial service loads with headroom for growth, reducing the need for early panel upgrades and improving system reliability; Application: Suitable for mid-to-large commercial facilities requiring robust main metering. Feature: Five-jaw design and a single 225 A socket; Business Impact: Simplifies wiring and reduces connector stress, leading to lower liability and longer equipment life; Application: Directly supports 3-phase in, 1-phase out configurations common in mixed-load buildings. Feature: 120/240 V operation with 200 A rating; Business Impact: Enables compatibility with standard commercial hardware and accelerates procurement and installation; Application: Ideal for retrofit projects and new builds using common utility voltages. Feature: NEMA 3R enclosure; Business Impact: Provides outdoor-ready protection, lowering enclosure conditioning costs and enabling exterior installations; Application: Outdoor meter stacks for weather exposure and rain-prone sites. Feature: Exit options top, bottom, or back; Business Impact: Flexible routing reduces installation time and customization needs; Application: Main tenant feeders can exit in flexible directions to fit existing room layouts. Feature: UL Listed and EUSERC Approved; Business Impact: Ensures code compliance and utility compatibility, easing permitting and interconnection; Application: Essential for commercial projects targeting rapid approvals and reliability. Feature: Test bypass and 3R housing with robust build; Business Impact: Improves service testing and maintenance efficiency, reducing downtime; Application: Routine metering checks and service interruptions management.
Get a Quick Quote for a Eaton 35SS120RCAC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35SS120RCAC?
Enquire Now
FAQs
The 35SS120RCAC supports main tenant feeders exiting top, bottom, or back, providing flexible routing to fit room layouts and reduce wiring complexity. This versatility simplifies retrofits and new installations, especially where space constraints or existing conduits dictate exit direction.
A 1200 A bus rating accommodates large service loads and ahead-of-time headroom for growth, reducing the risk of overloading upstream equipment. It supports three-phase in and single-phase out configurations, enabling efficient metering for diverse commercial loads while maintaining protective coordination.
Yes. The unit is UL Listed and EUSERC Approved, which confirms electrical safety and utility interconnection compatibility. These certifications streamline permitting, inspections, and utility approvals for both new builds and retrofit projects.
Yes, the 35SS120RCAC uses a NEMA 3R enclosure, which is designed for outdoor use and weather exposure. This reduces the need for additional weatherproof housing and helps minimize installation time and costs in exterior installations.
The product carries Eaton’s standard warranty policy, typically one year from installation or eighteen months from shipment, whichever occurs first. This provides coverage for manufacturing defects and supports proactive maintenance planning and asset lifecycle management.
