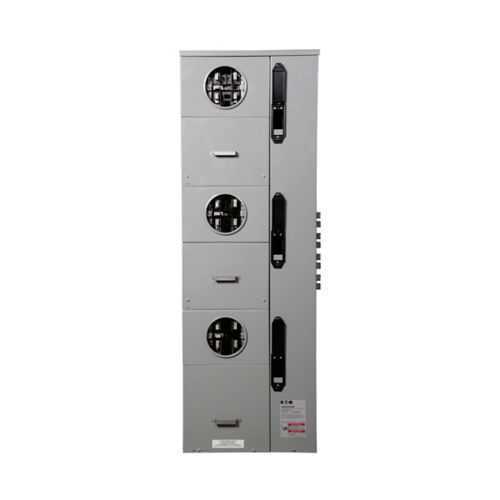

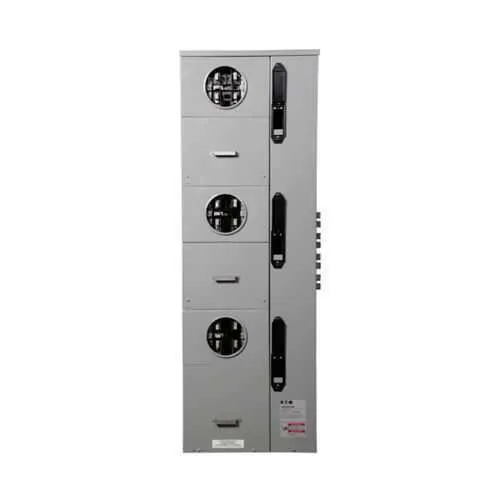

Eaton 35SS320RAB Meter Stack 120/240V - UL Listed
Part Number: 35SS320RAB
Quick Summary
The Eaton 35SS320RAB meter stack is a rugged 200A commercial metering solution designed to power 120/240V installations in modern panels. Engineers often struggle with mounting flexibility, weather exposure, and bus-rating limits in high-load metering, and this stack addresses those challenges with configurable exit options and a durable aluminum enclosure. UL Listed and EUSERC Approved, with a NEMA 3R enclosure for indoor/outdoor service, this unit also supports 208Y/120V networks and offers a test bypass for safe maintenance. In practice, this combination improves installation speed, compliance confidence, and overall total cost of ownership for facilities teams and specifiers, while aligning with power management and distribution best practices.
Product Information
Extended Description
35SS320RAB Eaton: Eaton commercial meter stack, Socket amperage: 225A, Amperage rating: 200A, Aluminum, Bus rating: 1200A, Test bypass, NEMA 3R, Depends on selected MCB, Five-jaw, 3 Sockets, Three-phase in, single-phase out, Ring, 120/240 Vac, NEMA 3R
Product Name
Eaton 35SS commercial meter stack
Catalog Number
35SS320RAB
UPC
782114055076
Product Length/Depth
62 in
Product Height
12 in
Product Width
20 in
Product Weight
168 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
EUSERC Approved
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Utility approvals
ID : Idaho Power OR : Idaho Power WA : Seattle City Light AK : Anchorage Municipal Light & Power NV : NV Energy CA : City of Los Angeles - DWP (LADWP) AZ : Southern California Edison CA : Southern California Edison CA : Pacific Gas and Electric (PG&E) CA : Sacramento Municipal Utility District (SMUD) HI : Hawaiian Electric AZ : Tucson Electric Power/ UniSource AZ : Sulphur Springs Valley Electric Coop WA : Puget Sound Energy WA : Tacoma Public Utilities
Interrupt rating
Depends on selected main circuit breaker
Secondary circuit breaker
EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X, CVH2_X
Enclosure
Indoor/outdoor
Voltage rating
120/240 V
Amperage Rating
200A
Bus material
Aluminum
Bus Rating
1200 A
Bypass
Test
Number of jaws
Five-jaw
Number of sockets
3
Phase balance
A-B
Security
Ring
Socket amperage
225A
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - 35SS320RAB
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Flexible exit options for main tenant feeders. Business Impact: Reduces field labor and custom fabrication time by allowing top, bottom, or back exits, accelerating site installs. Application: Retrofit or new-build metering in commercial panels requiring adaptable wiring routes. Feature: High current capacity with robust bus features. Business Impact: Supports 200A service with a 1200A bus rating, enabling future scalability and reduced upgrade cycles. Application: Multi-load commercial spaces and light-industrial applications with evolving metering needs. Feature: Weather-ready indoor/outdoor enclosure. Business Impact: NEMA 3R protection for harsh outdoor environments minimizes enclosure maintenance and extends service life. Application: Outdoor meter stacks at facilities, carports, and outdoor electrical rooms. Feature: Test bypass for maintenance. Business Impact: Maintains service continuity during metering tests and upgrades, reducing downtime costs. Application: Utility and contractor testing workflows in active commercial sites. Feature: Compliance and approvals. Business Impact: UL Listed and EUSERC Approved status streamline utility coordination and customer acceptance. Application: Projects with strict utility and building code requirements. Feature: Three-phase in, single-phase out capability. Business Impact: Simplifies metering architectures for mixed-load facilities, reducing inventory of separate devices. Application: Office campuses, retail centers, and light industrial plants. Feature: Compact yet capable design. Business Impact: Minimizes wiring footprint and eases panel space management, supporting faster commissioning. Application: New builds and retrofit projects where space is at a premium. Feature: Secure ring-type protection and precise phase balance. Business Impact: Enhances safety and reduces miswiring risks during installation. Application: All three-phase electrical distributions in commercial settings.
Get a Quick Quote for a Eaton 35SS320RAB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35SS320RAB?
Enquire Now
FAQs
The 35SS320RAB is designed for three-phase in and single-phase out configurations, supporting 120/240V networks and 208Y/120V systems. This compatibility simplifies metering architecture for mixed-load facilities and reduces the need for multiple devices while enabling streamlined utility coordination.
It features a robust indoor/outdoor enclosure rated for NEMA 3R conditions, along with UL Listed and EUSERC Approved status. These attributes ensure reliable weather resistance, easier utility acceptance, and minimal maintenance in exterior installations such as campus walkways or outdoor electrical rooms.
Key certifications include UL Listed and EUSERC Approved, with a NEMA 3R enclosure suitable for indoor or outdoor use. The catalog notes also indicate broad utility compatibility, facilitating project approvals with multiple regional utilities.
A built-in test bypass enables maintenance and testing without fully de-energizing the line, reducing outage time. The five-jaw, three-socket configuration and modular design further simplify servicing and fault isolation during routine inspections or upgrades.
ROI improves through quicker installations, fewer field tweaks thanks to flexible exit options, and reduced downtime due to the test bypass and robust enclosure. Compliance with UL and EUSERC streamlines utility approvals, accelerating project timelines and lowering total cost of ownership.
