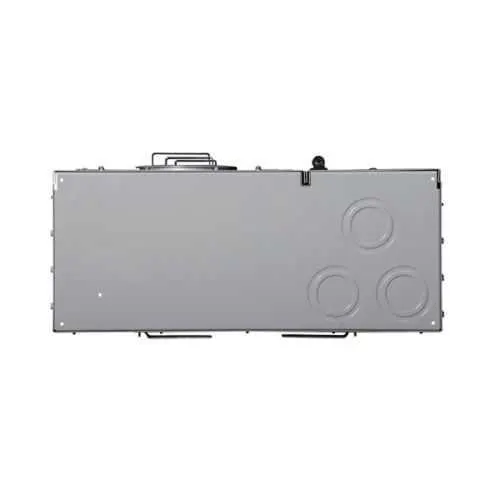

Eaton 35SS320RBC Commercial Meter Stack - UL Listed
Part Number: 35SS320RBC
Quick Summary
The Eaton 35SS320RBC commercial meter stack provides integrated metering for commercial electrical distribution. Engineers and procurement teams need reliable, flexible metering that simplifies installation while meeting utility and code requirements. UL Listed and EUSERC Approved with a rugged NEMA 3R enclosure help ensure compliance in indoor and outdoor environments. This unit supports 120/240 V and 208Y/120 V networks, three-phase in with single-phase out, helping reduce footprint and maximize service continuity. With the Eaton 35SS, you gain a scalable, long-term metering solution suited for commercial campuses, data centers, and retail facilities. Its five-jaw, three-socket design and 1200 A bus rating offer robust capacity for growing loads, while test bypass supports convenient maintenance.
Product Information
Extended Description
35SS320RBC Eaton: Eaton commercial meter stack, Socket amperage: 225A, Amperage rating: 200A, Aluminum, Bus rating: 1200A, Test bypass, NEMA 3R, Depends on MCB, Five-jaw, 3 Sockets, Three-phase in, single-phase out, Ring, 120/240 Vac, B-C phase balance
Product Name
Eaton 35SS commercial meter stack
Catalog Number
35SS320RBC
UPC
782114055090
Product Length/Depth
62 in
Product Height
10 in
Product Width
22 in
Product Weight
213 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
EUSERC Approved
Certifications
UL Listed
Catalog Notes
Main tenant feeders can exit top, bottom, or back, If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap. 120/240V, single-phase, three-wire systems and 208Y/120V network metering
Utility approvals
ID : Idaho Power OR : Idaho Power WA : Seattle City Light AK : Anchorage Municipal Light & Power NV : NV Energy HI : Hawaiian Electric AZ : Tucson Electric Power/ UniSource AZ : Sulphur Springs Valley Electric Coop WA : Puget Sound Energy WA : Tacoma Public Utilities
Interrupt rating
Depends on selected main circuit breaker
Secondary circuit breaker
EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X, CVH2_X
Enclosure
Indoor/outdoor
Voltage rating
120/240 V
Amperage Rating
200A
Bus material
Aluminum
Bus Rating
1200 A
Bypass
Test
Number of jaws
Five-jaw
Number of sockets
3
Phase balance
B-C
Security
Ring
Socket amperage
225A
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - 35SS320RBC
Feature: Five-jaw configuration and three sockets support multiple metering paths. Business Impact: Enables precise load monitoring and fault isolation across feeders, reducing outage impact and optimizing energy use. Application: Ideal for three-phase in, single-phase out deployments in large commercial facilities. Long-tail keywords: three-phase metering, multi-point metering, commercial meter stack. Feature: Socket amperage of 225 A and an Amperage Rating of 200 A deliver high-current capacity with built-in headroom. Business Impact: Improves service continuity during peak loads and accommodates future expansion without reconfiguration. Application: Suitable for campuses and retail complexes with growth trajectories. Long-tail keywords: high-current metering, 200A meter stack, scalable metering solution. Feature: Aluminum bus with a 1200 A bus rating provides light yet durable power distribution. Business Impact: Reduces weight on hardware routes, lowers installation effort, and supports larger service feeders. Application: Heavy-duty distribution in commercial power networks. Long-tail keywords: aluminum bus, bus rating 1200 A, durable electrical distribution. Feature: Test bypass and built-in grounding/security features streamline maintenance and enhance safety. Business Impact: Minimizes downtime during testing and simplifies compliance checks. Application: Routine service and commissioning in new builds or retrofits. Long-tail keywords: test bypass, safety features, maintenance efficiency. Feature: NEMA 3R enclosure and indoor/outdoor suitability enable flexible installation across environments. Business Impact: Eliminates location-based constraints, supports outdoor metering in covered areas, and reduces enclosure-related risk. Application: Outdoor rooftops and covered walkways in commercial sites. Long-tail keywords: NEMA 3R, outdoor metering, enclosure versatility. Feature: Main tenant feeder exit options (top, bottom, back) with rainproof cap applicability. Business Impact: Installation efficiency and future-proofing for layouts and expansions. Application: Retrofit or new-build metering with diverse routing requirements. Long-tail keywords: exit options, rainproof cap, hub compatibility. Feature: EUSERC Approved and UL Listed with compliance context. Business Impact: Streamlines regulatory acceptance and utility interconnection. Application: Code-compliant metering for utility-driven projects. Long-tail keywords: UL Listed metering, EUSERC compliance, utility approvals.
Get a Quick Quote for a Eaton 35SS320RBC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 35SS320RBC?
Enquire Now
FAQs
When planning installation, verify that main tenant feeders can exit from top, bottom, or back, and ensure compatibility with Myer type hubs if mounting on rainproof caps for outdoor use. Confirm voltage compatibility for 120/240 V or 208Y/120 V networks, and plan for a 1200 A bus with 200 A rated main to accommodate future expansion. Ensure UL Listed and EUSERC approved status is recognized by the local utility during interconnection.
The meter stack supports both 120/240 V single-phase three-wire and 208Y/120 V three-phase networks, enabling flexible metering for mixed-use facilities. With a 200 A amperage rating and 225 A socket amperage, it provides solid headroom for peak loads while maintaining safe, balanced feed pathways. This versatility reduces the need for multiple metering assemblies on mixed-voltage sites.
Yes. The unit features an indoor/outdoor enclosure with a NEMA 3R rating, enabling reliable operation in varied weather conditions when properly mounted with rainproof-cap considerations for top-exit configurations. UL Listed and EUSERC approved credentials further support outdoor interconnection with utilities, ensuring compliance during field commissioning and ongoing service.
This meter stack carries UL Listed certification and is EUSERC approved, two key marks that reassure electrical safety, reliability, and utility compatibility. These certifications simplify code compliance, facilitate utility interconnection, and provide a clear, auditable standard for maintenance and future upgrades in commercial power distribution.
The 35SS320RBC offers a test bypass for quicker maintenance and fault isolation, reducing downtime during preventative testing or breaker replacement. Its robust 1200 A bus, 225 A socket, and durable aluminum construction support longer service life with fewer replacements, translating to lower lifecycle costs and faster ROI for larger commercial sites.
