Eaton 3600MV3AI38FGMW MV AutoVAR capacitor bank - CSA
Part Number: 3600MV3AI38FGMW
Quick Summary
Eaton MV AutoVAR unfiltered capacitor bank is designed for high-voltage reactive power compensation in 13.8 kV grid applications. Sizing and placement of capacitor banks can be challenging, risking over- or under-compensation and reliability concerns. This product carries CSA Certified (Canada Only) certification, underscoring safety and regulatory compliance for Canadian projects. In practice, engineers rely on its 60 Hz performance and 13.8 kV class design to stabilize voltages and reduce line losses across large industrial sites. By aligning with standard electrical practices and providing robust construction, the MV AutoVAR supports predictable performance, quick commissioning, and long-term reliability in mission-critical power systems.
Product Information
Extended Description
3600MV3AI38FGMW Eaton: Eaton MV AutoVAR 15kV Class Standard Design capacitor bank, 3600KVAR, 13800V, 60HZ, UNFILTERED
Product Name

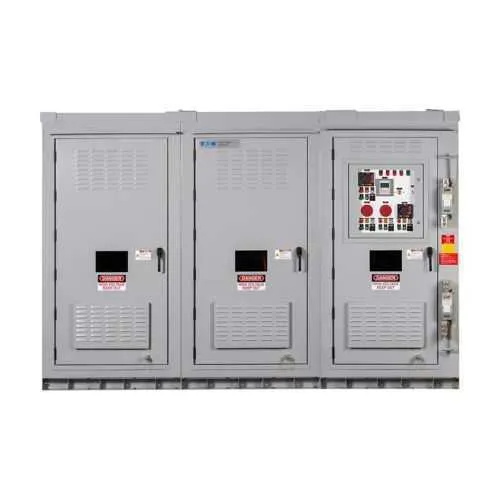

Eaton MV AutoVAR unfiltered capacitor bank
Catalog Number
3600MV3AI38FGMW
UPC
786689241674
Product Length/Depth
106 in
Product Height
99 in
Product Width
65 in
Product Weight
10000 lb
Certifications
CSA Certified (Canada Only)
Frequency rating
60 Hz
kVA rating
3600 kVAR
Voltage rating
13800 V
