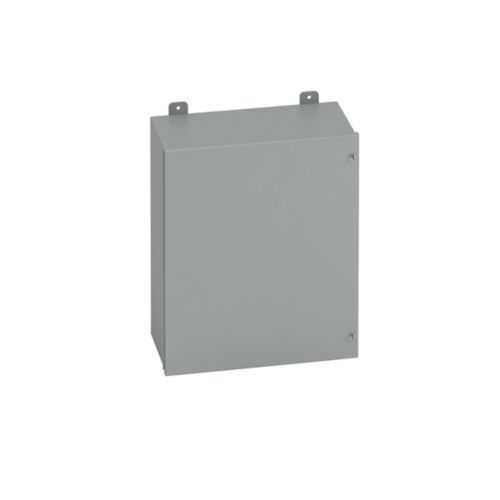

Eaton 36247-12CHSC JIC panel enclosure - NEMA 12
Part Number: 36247-12CHSC
Quick Summary
Eaton 36247-12CHSC JIC panel enclosure protects electrical gear in industrial control panels and wall-mounted installations. Engineers often face gasket leaks, space constraints, and harsh environments that threaten uptime. This enclosure delivers UL 508A, CSA C22.2, and NEMA ratings to ensure safe, compliant operation in demanding facilities. Its carbon steel construction with ANSI 61 gray paint provides durability and a professional finish that resists everyday wear. With a wall-mount design, external mounting feet, and a hinged cover, it supports rapid installation and straightforward maintenance, helping facilities reduce downtime and total cost of ownership while preserving critical power and control circuits.
Product Information
Extended Description
36247-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 36" height, 7" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
36247-12CHSC
UPC
782051770506
Product Length/Depth
7 in
Product Height
36 in
Product Width
24 in
Product Weight
81.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Feature: Carbon steel, 14 gauge wall thickness, painted ANSI 61 gray finish. Business impact: rugged protection against impact and corrosion in industrial environments, extending service life and reducing replacement costs. Application: ideal for factory floors, machine tenders, and electrical infrastructure where durability matters. Feature: Dimensions 36 in height, 24 in width, 7 in depth with external mounting feet. Business impact: generous internal volume for 12-channel control panels, enabling organized wiring and simpler upgrades. Application: wall-mounted control panels in automotive, packaging, and process industries. Feature: Hinged cover with cont. pianohinge and oil-resistant gasket. Business impact: long hinge life and reliable sealing against dust and oil, lowering leakage risk and maintenance cycles. Application: critical in environments with lubricants, coolants, or corrosive vapors. Feature: NEMA 12, UL 508A, CSA C22.2 certifications. Business impact: regulatory compliance streamlines audits and procurement while supporting safety standards. Application: preferred for automated lines, switchgear rooms, and multi-panel assemblies. Feature: Special features like whiteback, print pocket, and plated screws. Business impact: enhanced serviceability, labeling, and branding, enabling quick diagnostics and lower service times. Application: systems requiring clear documentation and fast field maintenance.
Get a Quick Quote for a Eaton 36247-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 36247-12CHSC?
Enquire Now
FAQs
The enclosure is designed for wall mounting with external mounting feet, enabling straightforward installation in constrained spaces. Its 36 in x 24 in x 7 in footprint supports a compact yet roomy interior for 12-channel configurations, while the hinged cover provides easy access for maintenance without requiring additional hardware.
Important specs include: catalog number 36247-12CHSC, 36 in height, 24 in width, 7 in depth, 14 gauge carbon steel wall, ANSI 61 gray painted finish, NEMA 12 rating, hinged cover, external mounting feet, and an oil-resistant gasket. The unit weighs 81.9 lb and is UL 508A and CSA C22.2 certified.
This enclosure carries UL 508A and CSA C22.2 certifications and adheres to NEMA 12 standards. These certifications matter because they confirm electrical safety, reliability, and suitability for dust, splash, and light oil exposure in industrial settings, simplifying compliance during audits and supplier qualification.
Yes. The oil-resistant gasket, NEMA 12 protection, and durable painted carbon steel body are designed to withstand dust, splashes, and oil exposure typical of manufacturing floors, machine rooms, and service bays, helping maintain enclosure integrity over time.
Its cont. pianohinge, hinged cover, and print pocket streamline access and labeling, reducing service time. External feet simplify mounting and alignment, while the robust 14 gauge carbon steel construction minimizes replacement cycles, delivering lower lifecycle costs and improved uptime in automated systems.
