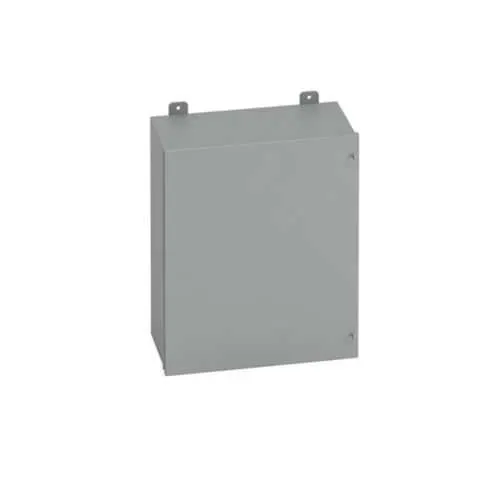

Eaton 36249-12CHSC JIC panel enclosure - NEMA 12
Part Number: 36249-12CHSC
Quick Summary
The Eaton 36249-12CHSC JIC panel enclosure protects electrical gear in wall-mounted control panels. Engineers often face space constraints, moisture ingress, and limited service access; this enclosure delivers a durable carbon steel body with a 14 gauge wall, hinged cover, and external mounting feet for fast, secure installation. It carries UL 508A and CSA C22.2 listings and a NEMA 12 rating, providing reliable protection in demanding environments. The painted ANSI 61 gray finish supports easy field maintenance and long service life. By combining robust construction with adaptable mounting, this enclosure helps facilities improve panel reliability, reduce downtime, and lower lifecycle costs in harsh industrial settings.
Product Information
Extended Description
36249-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 36" height, 9" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
36249-12CHSC
UPC
782051770902
Product Length/Depth
9 in
Product Height
36 in
Product Width
24 in
Product Weight
86.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge,whiteback,printpocket,platedscrew
NEMA Rating
12
Country of origin
US
Durable carbon steel construction with 14 gauge wall and a painted ANSI 61 gray finish delivers superior mechanical protection and corrosion resistance in tough environments, reducing facility downtime and service costs. The NEMA 12-rated enclosure, paired with an oil-resistant gasket, provides dependable ingress protection for dusty or oily plant floors, enabling safer operations and less maintenance. Hinged cover with cont. pianohinge, whiteback, and print pocket supports quick, tool-free access and streamlined documentation, boosting maintenance efficiency and asset traceability. External mounting feet and wall-mount capability offer flexible installation options across existing plant layouts, minimizing retrofitting costs and enabling rapid deployment in new or retrofit projects. UL 508A and CSA C22.2 certifications simplify compliance and procurement, helping engineering teams meet safety audits while ensuring long-term performance for process automation and factory applications. The 12CHSC model’s 36 x 24 x 9 inch footprint provides ample internal space for wiring, components, and future expansion, supporting scalable control architectures in manufacturing plants.
Get a Quick Quote for a Eaton 36249-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 36249-12CHSC?
Enquire Now
FAQs
The 36249-12CHSC is designed for wall mounting with external mounting feet, enabling flexible installation in tight spaces. Its wall-mount capability allows quick integration into existing control panels or new builds without requiring floor-standing support, reducing footprint and simplifying alignment with other enclosure components.
The enclosure measures 36 inches in height, 24 inches in width, and 9 inches in depth, with a shipping/operating weight around 86.7 pounds. This size provides ample interior volume for standard control panels while maintaining a manageable weight for mid-assembly handling and installation.
Yes. The 36249-12CHSC is a NEMA 12 rated enclosure designed for indoor use in areas with dust, moisture, or light oil exposure. Combined with an oil-resistant gasket and a hinged door, it provides reliable protection for sensitive electrical components in factory floors and office-adjacent control rooms.
This enclosure carries UL 508A and CSA C22.2 listings along with a NEMA protection rating. These certifications validate electrical safety, performance under industrial conditions, and compliance with regulatory requirements, streamlining procurement, audit readiness, and downstream system certification for automation projects.
Using external feet for wall mounting simplifies retrofits and relocations, while the hinged door with piano hinge and print pocket accelerates routine maintenance and labeling. The durable carbon steel build and sealed gaskets reduce ingress-related failures, lowering downtime and replacement costs across asset lifecycles in manufacturing environments.
