Eaton 3765EX Locking Plug for Industrial Use - cULus Listed
Part Number: 3765EX
Quick Summary
Eaton 3765EX locking plug securely terminates industrial power cords for equipment in demanding facilities. This locking plug delivers a 50 A, 600 VAC / 250 VDC rating with back-wire terminals to simplify field terminations and reduce installation time. The unit is cULus Listed and CSA certified, signaling robust safety and regulatory compliance for North American operations. California standard Pro grip design enhances grip and prevents loosening under vibration, while the nylon body and 0.44 to 1.06 in cord diameter range support reliable, long-life connections. Operating temperature range from -40 to 105 °C broadens installation options in harsh plants, and the device supports #10-6 AWG conductors for flexible layouts.
Product Information
Extended Description
3765EX Eaton: Eaton locking plug, #10-6 AWG, 50A, Industrial, 600 Vac, 250Vdc, Back wiring, Black, red, Pro grip, Non-NEMA, Three-pole, Four-wire, grounding, Nylon, 0.44 to 1.06 in
Product Name

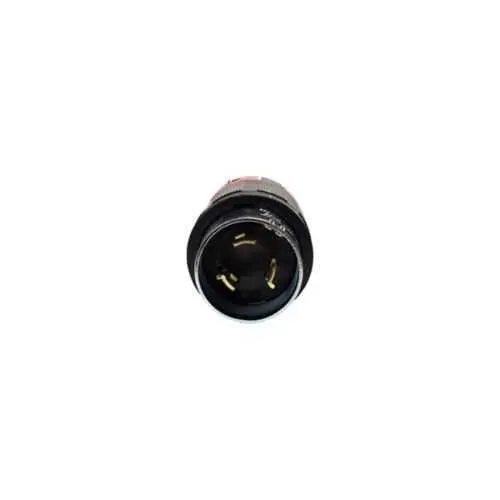

Eaton Arrow Hart pro grip California standard locking plug
Catalog Number
3765EX
UPC
032664663789
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed CSA certified
Special features
Locking plug
Type
Locking plug
Amperage Rating
50 A
Voltage rating
600 Vac, 250 Vdc
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
4 Grounding
Number Of Poles
Three-pole
Color
Red Black
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Allowable wire size
#10-6 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart Buyers Guide Section C
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 3765EX
