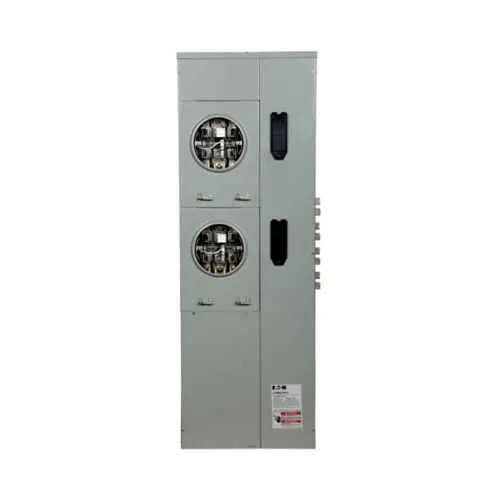

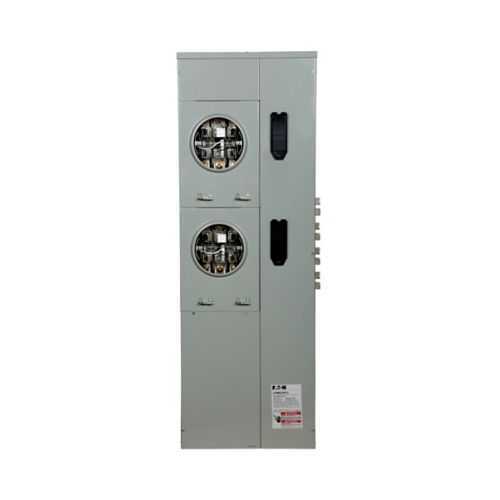

Eaton 37MM240R124033 Commercial Meter Stack - UL Listed
Part Number: 37MM240R124033
Quick Summary
Eaton commercial meter stack provides modular three-phase metering for heavy-duty power distribution in commercial facilities. This solution helps electrical teams overcome space constraints, configuration complexity, and maintenance headaches in multi-meter environments. UL Listed safety certification supports compliance during inspections and reduces risk in regulated spaces. The unit combines a 400A amperage rating with a ringless cover and two sockets, delivering reliable phase balance for 208Y/120V systems. With robust compatibility for standard distribution panels and straightforward installation, it offers a clear path to lower field labor costs, faster commissioning, and easier future expansions.
Product Information
Extended Description
37MM240R124033 Eaton: Eaton's 37MM Three-Phase Commercial Meter Stack Modules, 400A, Aluminum Bus 1200 Ampere, Lever bypass Seven-jaws 2 Socket Three-phase in, three-phase out Factory A-B Phase Balance, Ringless Security , 400 Ampere Socket Ampere, 208Y/120V
Product Name
Eaton commercial meter stack
Catalog Number
37MM240R124033
UPC
782116995677
Product Length/Depth
8.75 in
Product Height
52.63 in
Product Width
18.25 in
Product Weight
320 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Number of sockets
2
Amperage Rating
400A
Cover
Ringless
The 400A amperage rating ensures the meter stack can handle peak commercial loads while maintaining safe, predictable fault margins. This capability translates into reduced electrical bottlenecks and improved demand management for facilities like shopping centers, office campuses, and light industrial sites. Two sockets enable modular metering and easier tenant separation within shared service feeders, simplifying phase balance and accelerating commissioning in three-phase networks such as 208Y/120V environments. The ringless cover enhances safety for technicians and speeds maintenance, cutting service time and minimizing disruption during panel upgrades. Aluminum bus construction provides robust current handling with lighter weight and corrosion resistance, enabling easier field installation and long-term reliability. UL Listed certification confirms compliance with electrical safety standards, easing inspections and regulatory approvals across commercial projects. Finally, the overall footprint supports careful space planning in retrofit projects, with compatibility across standard Eaton and compatible third-party panels to minimize integration risk.
Get a Quick Quote for a Eaton 37MM240R124033
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 37MM240R124033?
Enquire Now
FAQs
Installation requires a compatible three-phase distribution panel with sufficient space for a 52.63 in height, 18.25 in width, and 8.75 in depth unit. Ensure proper alignment of the two sockets, secure the ringless cover for safe access, and follow manufacturer torque specifications for the 400A connections. Verify 208Y/120V configuration and confirm UL Listed compliance before energizing the system.
Key specifications include 400A amperage rating, two sockets, ringless cover, 208Y/120V three-phase operation, aluminum bus, and dimensions of 8.75 in depth, 52.63 in height, and 18.25 in width. The unit weighs 320 lb and carries UL Listed certification, with a catalog number 37MM240R124033 and UPC 782116995677.
Yes. The 37MM240R124033 is designed for three-phase 208Y/120V systems and supports heavy-duty commercial applications. Its modular two-socket design and 400A rating enable reliable distribution, phase balance, and scalable metering across multi-tenant buildings, retail complexes, and office campuses.
The product is UL Listed, confirming compliance with electrical safety standards. This certification supports regulatory approvals and simplifies inspections in commercial construction and retrofit projects.
Warranty terms follow Eaton Selling Policy 25-000, offering one year from date of installation or eighteen months from date of shipment, whichever occurs first. This provides assurance on workmanship and material reliability during the critical early life of the installation.
