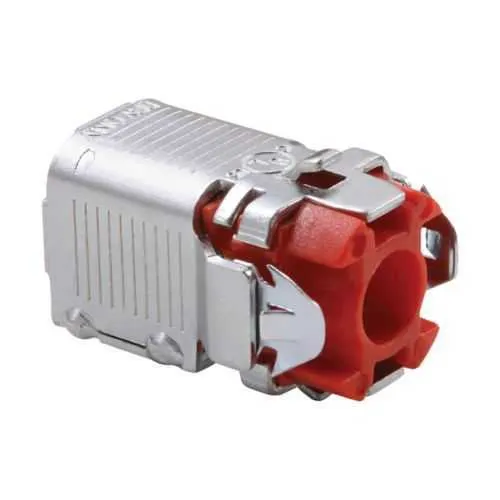

Eaton 38MCQS Quick-Lok Pro Connector - NEC/CEC
Part Number: 38MCQS
Quick Summary
Eaton 38MCQS Quick-Lok Pro connector is a rugged, single AC/MC and FMC armored cable termination designed for industrial panels and control cabinets. Engineers often struggle with tool-free, corrosion-resistant connections that endure vibration and harsh environments. This product aligns with NEC/CEC standards and carries ordinary/non-hazardous location classification, with Canadian certification support backed by UL references. The steel construction delivers robust durability, while the compact 1.46 in length and 3/8 in trade size streamline panel layout. By combining reliable performance with installation efficiency, it helps reduce commissioning time and supports scalable wiring in demanding automation applications.
Product Information
Extended Description
38MCQS Eaton: Eaton Crouse-Hinds series Quick-Lok Pro connector, AC/MC and FMC, Single, Steel, 3/8"
Product Name
Eaton Crouse-Hinds series Quick-Lok Pro connector
Catalog Number
38MCQS
UPC
662277088190
Product Length/Depth
1.46 in
Product Height
1.06 in
Product Width
1.06 in
Product Weight
0.06 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
AC/MC and FMC
Connector type
Single
Material
Steel
Trade size
3/8"
Eaton Crouse-Hinds 38MCQS 3D drawing
Crouse-Hinds series Quick-Lok Pro Connectors - AC/MC and FMC catalog page
Quick-Lok Pro Connectors - AC/MC and FMC Canadian certification
Quick-Lok Pro Connectors - AC/MC and FMC Canadian certification
Eaton Specification Sheet - 38MCQS
Feature → Business Impact → Application: The 38MCQS supports AC/MC and FMC cables in a single, rugged steel body, delivering dependable terminations that withstand industrial vibrations and harsh environments. This translates to fewer field re-entries, reduced maintenance, and faster panel assembly in automation controllers and motor control centers. Application: use in control panels and enclosures where secure, durable connections are essential and space is at a premium. Feature → Business Impact → Application: Compact dimensions (1.46 in length, 1.06 in height and width) and a 3/8 inch trade size optimize panel routing and reduce enclosure footprint, enabling closer cable packing and easier door penetration. Application: ideal for crowded control cabinets in manufacturing lines and packaging equipment. Feature → Business Impact → Application: All-metal steel construction provides rugged longevity and resistance to wear, improving lifecycle reliability and reducing replacement costs. Application: suitable for long-term deployments in harsh factory floors. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous area classification simplify regulatory approvals and installation planning, lowering risk for project teams. Application: supports audits and certifications in capital projects. Feature → Business Impact → Application: Availability of 3D CAD drawings and catalog pages accelerates design integration, reducing engineering time and enabling accurate BOMs. Application: seamless integration with engineering workflows and procurement processes.
Get a Quick Quote for a Eaton 38MCQS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 38MCQS?
Enquire Now
FAQs
To install, align the connector with the armored cable and insert it through the enclosure opening, using its single-connector design for a clean termination. The 3/8 inch trade size fits standard cable entries, and the steel body provides rugged support in control panels. Ensure compliance with NEC/CEC and the area classification, using appropriate sealing in damp or dusty environments.
Yes. The 38MCQS is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, which simplifies regulatory review for typical industrial facilities. It is designed to deliver reliable performance in non-hazardous environments while maintaining robust mechanical integrity in daily operation.
The connector is made of steel and features a length of 1.46 inches, width of 1.06 inches, and height of 1.06 inches, with a weight of 0.06 lb. It supports AC/MC and FMC conduits and uses a 3/8 inch trade size for cable terminations, providing a compact yet durable solution for panel wiring.
The 38MCQS aligns with NEC/CEC standards for U.S. and Canadian markets, and Eaton provides Canadian certifications through UL listings as part of the Quick-Lok Pro family. This helps streamline approval processes for panel installations in North America and supports compliance during audits and inspections.
The design emphasizes a tool-free, secure termination with a rugged steel body, reducing field labor and rework. Compatibility with AC/MC and FMC cables, plus documented CAD drawings and catalog pages, accelerates engineering and procurement, while NEC/CEC compliance and Ordinary/Non-Hazardous classification reduce regulatory risk in ongoing maintenance and future expansions.
