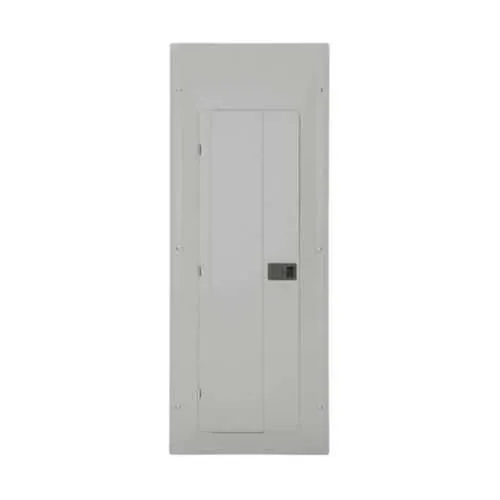

Eaton loadcenter 3BR3042LC200 - NEMA 1
Part Number: 3BR3042LC200
Quick Summary
Eaton BR main lug loadcenter provides rugged 200 A distribution for commercial and industrial panels. When mains are undersized or poorly organized, electrical downtime and wiring errors cost time and money. With UL 67, UL 50 certifications and a NEMA 1 metallic enclosure, it meets industry and safety standards for control rooms, mechanical spaces, and busy plant floors. Designed to work with BR 1-inch breakers, copper bus, and a 42-circuit layout, it supports scalable, code-compliant installations while reducing field wiring complexity and maintenance hassles.
Product Information
Extended Description
3BR3042LC200 Eaton: Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,200 A,G1,Copper,Cover included,NEMA 1,Metallic,25 kAIC,BWH,Combination,42 Circuits,30 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#1/0 AWG-300 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
3BR3042LC200
UPC
786676442459
Product Length/Depth
5.19 in
Product Height
39 in
Product Width
14.31 in
Product Weight
34 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
No feed-thru lugs
Type
Main lug
Amperage Rating
200 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
BWH
Mounting
Combination
Number of circuits
42
Number of spaces
30
Phase
Three-phase
Used with
Type BR 1-inch breakers
Voltage rating
208Y/120, 240V
Wire size
#1/0 AWG-300 kcmil Cu/Al
Box size
G1
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
NEMA rating
NEMA 1
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - 3BR3042LC200
Eaton type BR circuit breaker limited warranty June 2024
Feature: Main lug configuration with no feed-through lugs. Business Impact: Simplifies electrical distribution by eliminating unused lug pathways, reducing installation time and potential miswirings. Application: Ideal for main-lug only service panels in compact electrical rooms. The system pairs with Type BR 1-inch breakers for predictable coordination. Feature: 200 A amperage rating with copper bus. Business Impact: Improves conductive efficiency and thermal performance, enabling cleaner fault clearing and lower voltage drop in mixed loads. Application: Suitable for medium-load commercial feeders and light industrial panels. Feature: 42 circuits and 30 spaces. Business Impact: Provides ample headroom for future expansion without replacing the enclosure. Application: Scalable for evolving manufacturing lines and processing areas. Feature: NEMA 1 metallic enclosure and cover included. Business Impact: Enclosure protection for indoor dry environments, reducing field finishing time and shielding internal components. Application: Quick-install solution for controlled environments. Feature: 25 kAIC interrupt rating. Business Impact: Enhances short-circuit withstand, reducing risk of damage during faults. Application: Compliance-ready for demanding electrical rooms. Feature: Wire size capability up to #1/0 AWG to 300 kcmil Cu/Al. Business Impact: Supports large feeders and flexible wiring methods, enabling fewer terminations and improved reliability. Application: Industrial installations with heavy feeders. Feature: Compatibility with BR series breakers and four-wire three-phase setups. Business Impact: Streamlines procurement and maintenance with a common breaker family. Application: Factory automation panels and process control enclosures. Feature: Enclosure mounting as Combination G1 with cover included. Business Impact: Simplified installation workflow and faster panel commissioning. Application: New builds and retrofit projects where speed matters. Feature: 10-year warranty. Business Impact: Reduces lifecycle risk and total cost of ownership. Application: Long-term facility operations with frequent maintenance cycles.
Get a Quick Quote for a Eaton 3BR3042LC200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3BR3042LC200?
Enquire Now
FAQs
To install the 3BR3042LC200, verify indoor dry location, ensure supply and distribution conductors are sized per #1/0 AWG to 300 kcmil Cu/Al, and mount using the G1 enclosure with the included cover. Connect feeders to the 200 A lugs, align with Type BR 1-inch breakers, and commission per UL 67 UL 50 guidelines. Ensure grounding requirements are met and label circuits for future expansion to meet NEC standards.
Key specs include a 200 A amperage rating, 42 circuits across 30 spaces, three-phase 208Y/120 and 240 V operation, copper bus material, 25 kAIC interrupt rating, and NEMA 1 metallic enclosure. It is designed for four-wire systems and supports Type BR 1-inch breakers, enabling reliable fault clearing and scalable distribution in mid-size facilities.
Yes, for indoor dry environments where a robust main lug distribution is required. The unit uses a metallic NEMA 1 enclosure that provides durable protection, UL 67 and UL 50 certifications ensure compliance with electrical code expectations, and its 25 kAIC rating helps withstand short-circuit events common in manufacturing settings. For harsher environments, consider additional enclosure protection or indoor-rated variants.
The 3BR3042LC200 carries UL 67 and UL 50 certifications, reflecting compliance for low-voltage distribution equipment and enclosure integrity. The NEMA 1 enclosure rating indicates protection for indoor dry locations. These certifications support safe operation in control rooms, mechanical spaces, and light industrial facilities while simplifying regulatory approvals and inspections.
The unit’s 10-year warranty, durable copper bus, and solid short-circuit rating contribute to lower maintenance and replacement costs over its lifespan. Compatibility with BR 1-inch breakers reduces spare parts diversity, while the combination mounting and include-cover design speed up commissioning. Overall, facilities realize lower downtime, predictable performance, and extended service life in routine power distribution tasks.
