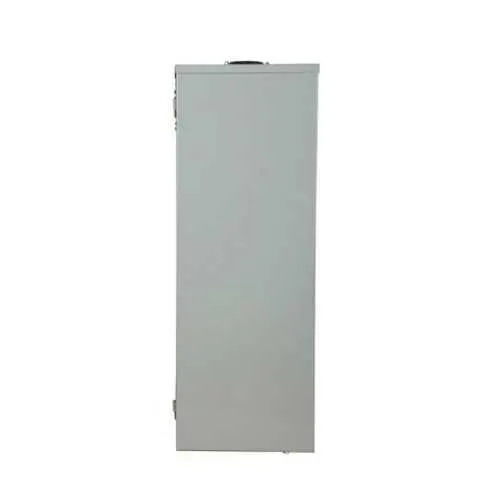

Eaton 3BR4242L200R Loadcenter - NEMA 3R
Part Number: 3BR4242L200R
Quick Summary
Eaton BR main lug loadcenter provides compact, reliable power distribution for commercial and industrial panels. Engineers often struggle with crowded panels, limited wiring flexibility, and downtime when service configuration is not scalable. This unit carries UL 50 and UL 67 certifications and features a NEMA 3R enclosure, delivering dependable performance in outdoor or harsh indoor environments. With a 25 kAIC interrupt rating and compatibility with Type BR 1-inch breakers for 208Y/120 and 240 V systems, it supports up to 42 circuits in a 42-space footprint. A covered, four‑wire configuration paired with a durable aluminum bus translates into lower lifecycle costs and faster field installs for distributors and end users.
Product Information
Extended Description
3BR4242L200R Eaton: Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,200 A,L1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,42 Circuits,42 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#1 AWG-300 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
3BR4242L200R
UPC
786676442558
Product Length/Depth
4.63 in
Product Height
12.75 in
Product Width
7.18 in
Product Weight
45.4 lb
Warranty
10 year
Certifications
UL 50 UL 67
Special features
No feed-thru lugs
Type
Main lug
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BWH
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Used with
Type BR 1-inch breakers
Voltage rating
208Y/120, 240V
Wire size
#1 AWG-300 kcmil Cu/Al
Box size
L1R
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
25 kAIC
NEMA rating
NEMA 3R
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - 3BR4242L200R
Eaton type BR circuit breaker limited warranty June 2024
Feature → Business Impact → Application: Main lug design without feed-thru lugs reduces potential fault paths and simplifies wiring, speeding up installation and future expansion in new builds or retrofit projects. This directly lowers commissioning time and minimizes retrofit costs in commercial facilities that demand reliable power distribution. Feature → Business Impact → Application: 200 A rating with 42 circuits/spaces supports high-density distribution for mid-size industrial panels and large commercial spaces, enabling scalable power layouts without adding separate enclosures. Use this in warehouses or data centers where space is at a premium. Feature → Business Impact → Application: Aluminum bus and metallic enclosure offer corrosion resistance and lighter weight with robust mechanical strength, improving ease of handling during installation and reducing transport and labor costs for outdoor installations. Feature → Business Impact → Application: NEMA 3R enclosure with a cover included provides weather protection and straightforward outdoor deployment, suitable for roofed loading docks and exterior equipment rooms, while maintaining code-compliant safety. Feature → Business Impact → Application: 25 kAIC interrupt rating, UL 50/UL 67 certifications, and a 10-year warranty deliver long-term safety, compliance, and total cost of ownership reductions, particularly attractive for OEMs and service providers managing multiple sites. Feature → Business Impact → Application: Type BR 1-inch breakers compatibility and support for 208Y/120 and 240 V systems simplify procurement and stocking for distributors, helping standardize assemblies across projects and improve spare parts availability.
Get a Quick Quote for a Eaton 3BR4242L200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3BR4242L200R?
Enquire Now
FAQs
The 3BR4242L200R is a main lug loadcenter designed for three-phase systems and is compatible with BR 1-inch breakers. It supports 208Y/120 and 240 V configurations, up to 42 circuits, and uses an aluminum bus in a NEMA 3R enclosure, simplifying integration into existing 3-phase distributions.
Its NEMA 3R metallic enclosure provides weather resistance for outdoor installations, while UL 50 and UL 67 certifications underpin safe operation in industrial settings. A cover is included to protect terminations, and the unit is built to withstand typical outdoor environmental conditions without compromising performance.
The loadcenter features a 25 kAIC interrupt rating and is configured as a main lug unit with no feed-through lugs, which simplifies the topology and reduces potential fault paths while delivering strong short-circuit protection for the downstream circuits.
This model carries UL 50 and UL 67 certifications, confirming safety and performance for power distribution equipment. It also comes with a 10-year warranty, providing long-term support and helping justify total cost of ownership in maintenance-intensive facilities.
With a robust 200 A rating, 42 circuits, and durable aluminum bus, maintenance requirements are minimal while reliability remains high. The compatibility with BR 1-inch breakers simplifies spare parts stocking, reducing downtime during breaker replacements and upgrades, contributing to faster project ROI and lower lifecycle costs.
