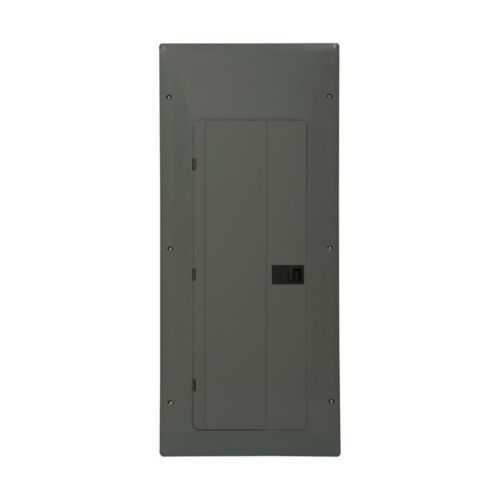

Eaton 3CPL230 Main Lug Loadcenter - Enclosure NEMA 1
Part Number: 3CPL230
Quick Summary
Eaton 3CPL230 main lug loadcenter is a compact power distribution solution for three-phase indoor panels. Engineers often grapple with space, wiring complexity, and rapid reconfiguration during panel upgrades, and this unit’s main lug design helps simplify field changes. Certifications are listed as Contact Manufacturer in the data, and the enclosure relies on a NEMA 1 indoor rating while supporting 120/208 V three-phase service up to 200 A with 40 circuits. With CPL plug-in loadcenter compatibility and flush or surface cover options, this Eaton BR solution reduces installation time, enhances reliability, and lowers long-term maintenance costs for panel upgrades and new builds alike.
Product Information
Extended Description
3CPL230 Eaton: Eaton BR main lug loadcenter, CPL Plug-in Loadcentre, Non-combination Main Lug Only, 200A, Flush/Surface, #2-300 kcmil, Four-wire, 120/208V, Three phase, NEMA 1, 16 gauge galvanized sheet steel, 30/60 circuits
Product Name
Eaton BR main lug loadcenter
Catalog Number
3CPL230
UPC
622588101100
Product Length/Depth
14.375 in
Product Height
34.12 in
Product Width
3.75 in
Product Weight
1 lb
Certifications
Contact Manufacturer
Type
Non-combination, main lug only
Amperage Rating
200 A
Cover
Flush/surface
Number of circuits
40
Phase
Three-phase
Voltage rating
120/208 V
Enclosure
NEMA 1
Feature: Non-combination, main lug only design reduces upfront costs by removing the need for a main breaker in many panel retrofits. Business Impact: installers save on parts, simplify wiring, and shorten commissioning times, delivering faster project ROI. Application: ideal for CPL plug-in loadcenter configurations in industrial control panels where future feeder additions are anticipated. Feature: 200 A rating with 40 circuits provides scalable headroom in compact footprints. Business Impact: engineers can consolidate feeders and minimize cabinet depth, reducing enclosure footprint and material costs. Application: suitable for mid-size manufacturing line panels and data-center auxiliary power cabinets where three-phase, 120/208 V loads predominate. Feature: NEMA 1 enclosure built from 16 gauge galvanized sheet steel delivers reliable indoor protection against dust and incidental contact. Business Impact: improves longevity in factory environments and lowers maintenance intervals. Application: ideal for clean, indoor electrical rooms, control panels, and ancillary equipment bays. Feature: Flush or surface cover options simplify mounting tolerances and aesthetics. Business Impact: reduces field rework and enables versatile installation in retrofit projects. Application: common in control rooms where panel visibility and access are prioritized. Feature: CPL plug-in loadcenter compatibility streamlines modular expansion. Business Impact: accelerates wiring changes and minimizes risk during future modifications. Application: widely used in industries adopting plug-in breakers and modular distribution for rapid line changes.
Get a Quick Quote for a Eaton 3CPL230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3CPL230?
Enquire Now
FAQs
Plan for indoor installation with a NEMA 1 enclosure and 16 gauge galvanized steel construction. Ensure mounting clears required clearances, confirm compatibility with flush or surface mounting, and verify feeder connections support up to #2-300 kcmil while accommodating four-wire service for 120/208 V three-phase systems.
The unit is rated for 200 A and 40 circuits, designed for 120/208 V three-phase systems. Feeder conductors up to #2-300 kcmil are supported, enabling flexible feeder sizing and future expansion without changing the main breaker configuration.
Yes, the 3CPL230 is designed for CPL plug-in loadcenter configurations and supports 40 circuits. This enables modular expansion and straightforward wiring changes as loads evolve in a panel without replacing the entire chassis.
A non-combination main lug design provides maximum wiring flexibility, reduces upfront hardware costs, and simplifies retrofits. It is particularly advantageous when future feeder additions or modular CPL plug-ins are anticipated, allowing phased upgrades without unnecessary main breaker replacements.
Certification status is listed as Contact Manufacturer in the data. For regulatory compliance, consult Eaton's official specification sheet and request UL/CSA or other approvals directly from Eaton to confirm current listings and site-specific requirements.
