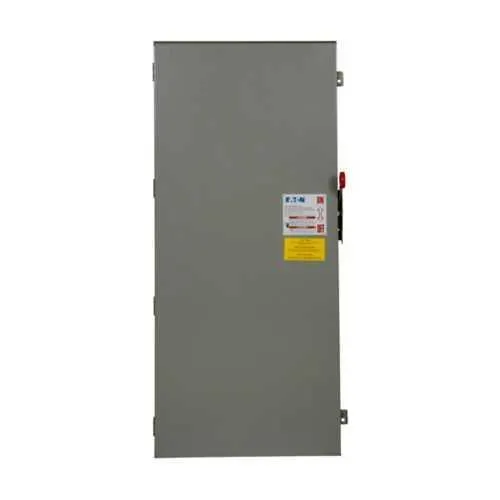

Eaton 3HD368NFV Heavy Duty Fusible Safety Switch - HDSS
Part Number: 3HD368NFV
Quick Summary
Eaton 3HD368NFV heavy duty fusible safety switch provides reliable power control for industrial plants and distribution panels. For engineers and maintenance teams, downtime and unexpected failures remain costly, so a rugged, code-compliant disconnect is essential. This HDSS unit features a NEMA 3R enclosure, 1200A, 3P, 600V ratings, and VIS-BLADE for clear operation, with CSA certification to CSA C22.2 No. 4. The design prioritizes safety and longevity in harsh environments, helping minimize arc-flash exposure during servicing. With compatible Eaton accessories and standardized mounting, installation is straightforward, and future expansions remain scalable. The result is improved reliability, reduced maintenance costs, and a straightforward path to regulatory compliance in modern electrical distributions.
Product Information
Extended Description
3HD368NFV Eaton: NEMA3R, HDSS, 1200A/3P, 600V, NonFusible,NO Neut. VIS-BLADE
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
3HD368NFV
UPC
786685973982
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
455 lb
Certifications
CSA Std. C22.2 No. 4 File No. LL69743
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Type
Enhanced visible blade
Amperage Rating
1200A
Voltage rating
600 V
Feature: 1200A, 3P, 600V electrical rating → Business Impact → Application: Supports high-load circuits in large industrial networks, reducing the risk of nuisance trips and outages; used in power distribution panels and industrial substations. Feature: NEMA 3R enclosure → Business Impact → Application: Enables outdoor and harsh-environment installation with weather protection, facilitating outdoor switchgear in manufacturing yards and outdoor substations. Feature: Enhanced visible blade (VIS-BLADE) → Business Impact → Application: Improves status verification and safe operation during maintenance, lowering arc-flash exposure risk and speeding lockout/tagout procedures in routine servicing. Feature: HDSS categorization with CSA certification → Business Impact → Application: Delivers compliance assurance for safety programs and audits, simplifying regulatory alignment for safety-critical installations in processing facilities. Feature: 455 lb, 72 in length, 48 in width, 21 in height → Business Impact → Application: Provides a robust, rigid form factor suitable for permanent mounting in large electrical rooms or outdoor enclosures; supports secure wiring access and durable mounting. Feature: 1200A 3P, 600V operation → Business Impact → Application: Enables effective three-phase protection for high-power motors and feeders in heavy industrial environments, enabling scalable protection as plant loads grow. These attributes collectively support reduced maintenance downtime, predictable lifecycle costs, easier compliance checks, and safer, faster maintenance in utility-scale and manufacturing operations.
Get a Quick Quote for a Eaton 3HD368NFV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 3HD368NFV?
Enquire Now
FAQs
The 3HD368NFV uses a NEMA 3R enclosure suitable for indoor or outdoor installations. Plan for a fixed, secure mounting surface with adequate clearance for wiring access, inspection, and VIS-BLADE visibility. Ensure compatible hardware is used for 3P connections and that mounting aligns with standard Eaton accessory kits to simplify commissioning.
The unit is rated for 1200A amperage, 3-pole (3P) configuration, at 600V. It is designed for heavy-duty service in high-load distribution panels and feeders, enabling reliable disconnects for large motors and feeders within industrial facilities.
Yes. The 3HD368NFV is a NEMA 3R-rated HDSS device, engineered for outdoor and rugged environments. The enhanced visible blade (VIS-BLADE) aids in safe operation and inspection, while CSA certification confirms compliance with relevant safety standards in demanding industrial settings.
This unit carries CSA Std. C22.2 No. 4 certification (File LL69743), supporting compliance with Canadian electrical safety requirements. In audits, such certifications help verify that the disconnect meets established safety criteria, reducing risk and streamlining regulatory reviews.
The switch’s robust HDSS design, clear blade visibility, and CSA-backed safety reduce maintenance time and risk during servicing, lowering downtime costs. Its durable enclosure and high amperage rating support longer service intervals and scalable protection as facility loads grow, delivering a favorable ROI for continuous operation environments.
