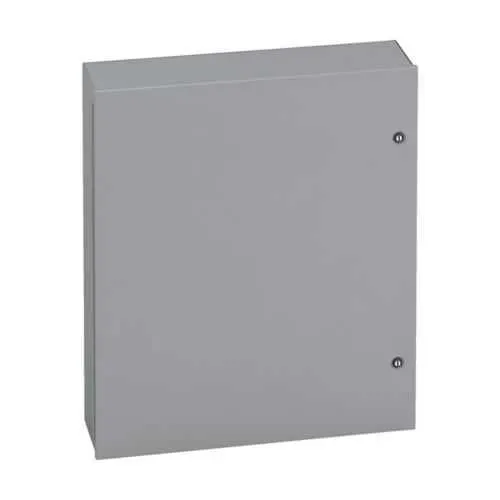

Eaton 423013-1 B-Line Type 1 Panel Enclosures - UL 50, NEMA 1
Part Number: 423013-1
Quick Summary
Eaton B-Line Type 1 panel enclosures protect control electronics in industrial environments. This model, 423013-1, is designed for wall-mounted installations, simplifying access during maintenance. UL 50, CSA C22.2, and NEMA ratings support code compliance and safety in dry indoor applications. The rugged carbon steel body with a hinged door delivers durable protection while facilitating quick service, reducing downtime and component exposure. For engineers and procurement teams, this enclosure combines dependable protection with straightforward installation and lifecycle cost efficiency, supporting scalable control cabinet builds and reliable plant operation.
Product Information
Extended Description
423013-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 42" height, 13" length, 30" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
423013-1
UPC
782051088908
Product Length/Depth
13 in
Product Height
42 in
Product Width
30 in
Product Weight
110.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Large, rigid carbon steel enclosure with 42 inch height, 30 inch width, and 13 inch depth enables ample interior space for standard control panels and wiring harnesses. Business Impact: Frees engineers from custom housing and minimizes field retrofits, accelerating panel builds and reducing lead times. Application: Ideal for machine controls and electrical distribution in manufacturing lines that demand organized, accessible layouts. Feature: 14 gauge wall thickness and ANSI 61 gray painted finish deliver robust protection against scuffs and handling damage. Business Impact: Lower maintenance costs and longer lifecycle by resisting wear in busy plant environments. Application: Shop floors, control rooms, and wall-mounted installations requiring durable surfaces. Feature: Hinged closure with keyhole mounting slots supports fast, tool-free access and flexible installation. Business Impact: Reduces service time and downtime during commissioning and routine checks. Application: Upright maintenance on tight panels or retrofit scenarios where quick door access matters. Feature: NEMA 1 enclosure rated with UL 50 and CSA C22.2 compliance provides reliable protection for dry interiors. Business Impact: Ensures regulatory alignment and safer operation while simplifying procurement. Application: Indoor electronic enclosures for control systems in regulated facilities. Feature: Wall-mount design and medium single door style optimize footprint and service visibility. Business Impact: Saves wall space in crowded panels and improves diagnostic access. Application: Retrofit projects or new installations where mounting footprint and door accessibility matter.
Get a Quick Quote for a Eaton 423013-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 423013-1?
Enquire Now
FAQs
The 423013-1 is a wall-mounted enclosure with a hinged door and keyhole mounting slots. Plan for adequate wall support for a 110.6 lb unit and ensure clear access for door operation and maintenance. Provide ventilation margins if installed near heat sources and maintain proper clearance for cable entry and service access during commissioning.
Yes. The enclosure carries UL 50 and CSA C22.2 certifications with a NEMA 1 rating, suitable for indoor dry environments. These standards indicate electrical safety, enclosure integrity, and compliance with common electrical codes, aiding regulatory approvals and project documentation.
This model is ideal for wall-mounted control panels and electrical distribution in manufacturing floors, machine rooms, and process lines. With 42 in by 30 in by 13 in dimensions and a hinged door, it accommodates standard control hardware while keeping components organized and accessible for routine maintenance.
Constructed from 14 gauge carbon steel with ANSI 61 gray paint, the enclosure offers robust protection against physical impact and paint chipping. It is compatible with standard DIN rail and component layouts inside due to ample interior space. Ensure compatibility with your preferred mounting standards, door hardware, and gasketed seals if used in dust-prone environments.
Benefits include reduced downtime from quick service access, lower repainting and corrosion risk due to durable carbon steel construction, and compliance with UL 50/CSA C22.2 and NEMA 1. These factors translate into lower lifecycle costs and faster project completion, especially for indoor control panels in busy production lines.
