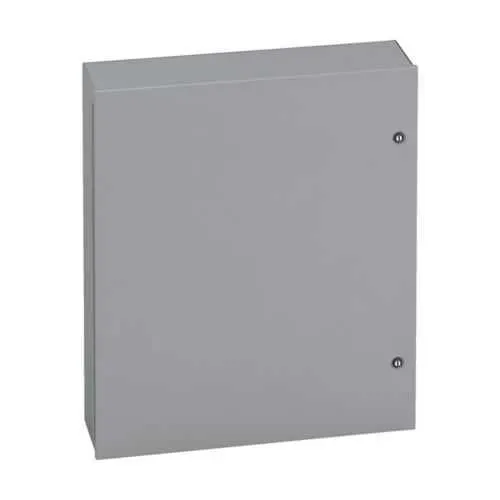

Eaton 42309-1 Panel Enclosures - NEMA 1 UL 50
Part Number: 42309-1
Quick Summary
Eaton 42309-1 Panel Enclosures provide rugged, wall-mounted housing for control circuits and power distribution in industrial environments. Facilities often struggle with limited mounting space, corrosion resistance, and secure access to critical controls. Ul 50, CSA C22.2, and NEMA 1 ratings ensure dependable indoor protection, while the ANSI 61 gray finish supports long-term durability. With a hinged door and carbon steel construction, this enclosure simplifies installation and reduces lifecycle costs, delivering reliable performance for electrical infrastructure projects and ongoing maintenance tasks.
Product Information
Extended Description
42309-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 42" height, 9" length, 30" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
42309-1
UPC
782051088298
Product Length/Depth
9 in
Product Height
42 in
Product Width
30 in
Product Weight
97.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: NEMA Type 1 indoor protection with a hinged cover. Business Impact: Protects sensitive electronics from dust and incidental contact while enabling easy access for maintenance. Application: Ideal for standard indoor control panels on factory floors and process lines. Feature: Wall-mount design with keyhole slots. Business Impact: Speeds installation and simplifies reconfiguration in evolving automation layouts. Application: Suitable for upgradable control cabinets in compact electrical rooms and line-side enclosures. Feature: 14 gauge carbon steel with ANSI 61 gray painted finish. Business Impact: Delivers robust mechanical strength and a durable, low-maintenance exterior. Application: Long-term service in manufacturing environments requiring reliable corrosion resistance. Feature: 42 in height x 30 in width x 9 in depth with medium single door. Business Impact: Maximizes internal space for control devices while maintaining compact external footprint. Application: Commonly used for machine controls and distribution panels where footprint is constrained. Feature: UL 50, CSA C22.2, NEMA 1 certifications. Business Impact: Ensures regulatory compliance and simplifies procurement for regulated facilities. Application: Suitable for facilities with strict electrical code requirements and contractor acceptance.
Get a Quick Quote for a Eaton 42309-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 42309-1?
Enquire Now
FAQs
The 42309-1 is a wall-mount enclosure designed around a 42 in x 30 in footprint with 9 in depth. Its keyhole mounting slots and hinged cover enable rapid installation and reconfiguration in constrained spaces, making it well-suited for compact electrical rooms and machine-side control panels without sacrificing access for service or upgrades.
This enclosure carries UL 50 protection and CSA C22.2 certification with a NEMA 1 rating, making it appropriate for indoor use where basic dust and incidental contact protection is required. The ANSI 61 gray painted carbon steel body adds durability for everyday industrial environments and supports compliant installations in regulated facilities.
The 42309-1 is a Type 1, indoor-rated enclosure with a carbon steel body and hinged door. It provides reliable protection against dust and light ingress in controlled indoor spaces. For harsher environments or outdoor use, consider higher NEMA ratings or additional sealing options, but within indoor applications it offers dependable performance.
Keyhole mounting slots enable quick wall mounting, and a hinged cover provides easy access to internal components during commissioning and routine maintenance. The medium single-door style simplifies door hardware management, while the 14 gauge carbon steel construction supports long-term reliability in standard industrial facilities.
The enclosure is constructed from 14 gauge carbon steel and weighs approximately 97.6 lb. This robust construction offers strength for mounting heavier control hardware while maintaining a manageable weight for installation teams, allowing safer handling with standard lifting equipment and reducing the need for frequent servicing or replacements.
